1976 Ford Bronco Tech Diagrams pictures, videos, and sounds

Steve83 > 1976 Ford Bronco > Tech Diagrams

Share This
Url
Tag
Thumb

eBrepairGrid.JPG | Hits: 7182 | Size: 63.6 KB | Posted on: 5/2/11 | Link to this image

Early Bronco Repair Locations Grid
Same style as Ford uses for modern vehicles.

For fullsize Bronco, see:

Share This
Url
Tag
Thumb

eBlineDimensions.JPG | Hits: 14704 | Size: 33.32 KB | Posted on: 1/20/11 | Link to this image

Early Bronco Dimensions
IF THE IMAGE IS TOO SMALL, click it.

See also:

Share This
Url
Tag
Thumb

eBcThruDims.jpg | Hits: 11112 | Size: 82.47 KB | Posted on: 2/18/15 | Link to this image

Provided to me by 70_Steve on ClassicBroncos.
IF THE IMAGE IS TOO SMALL, click it.

I may try to clean them up more later...

See also:

Share This
Url
Tag
Thumb

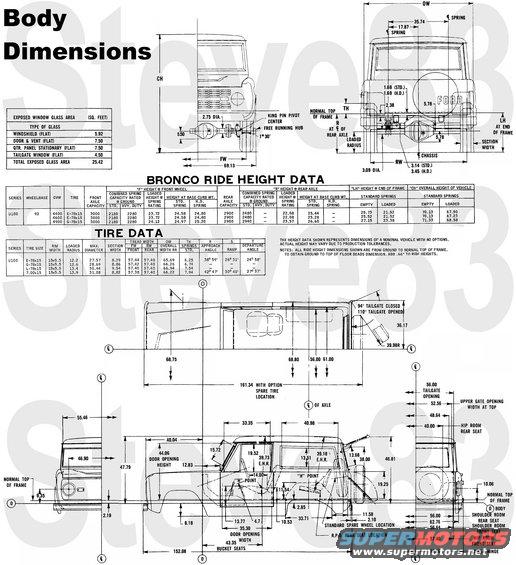

eBbodyDims.jpg | Hits: 9747 | Size: 76.42 KB | Posted on: 2/18/15 | Link to this image

Provided to me by 70_Steve on ClassicBroncos.
IF THE IMAGE IS TOO SMALL, click it.

I may try to clean them up more later...

See also:

Share This
Url
Tag
Thumb

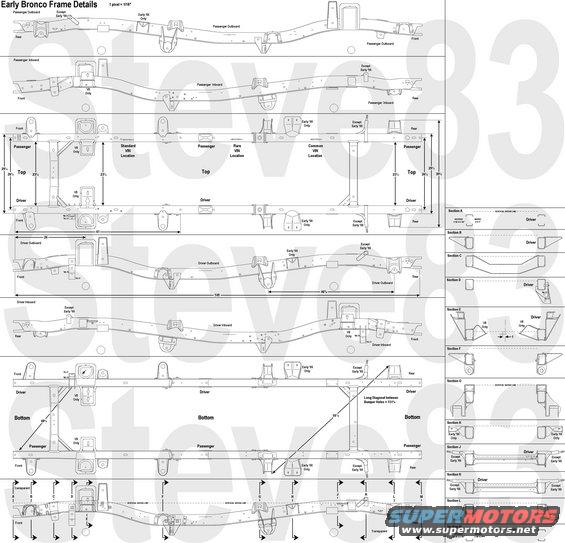

eBframexDims.JPG | Hits: 20420 | Size: 63.15 KB | Posted on: 7/6/11 | Link to this image

Early Bronco Frame Details (based on a '75 wagon frame)
IF THE IMAGE IS TOO SMALL, click it.
Frame Thickness ~0.120" (~7ga)

I still have to make a few corrections & additions, but it's basically complete & much more accurate than any previously available.
ERROR: the datum line in Section F (far Right side) is ~27 pixels too low (close to the frame). The position in the Transparent side view (just above this caption) is correct.

To take measurements, click the image above to make sure you have the largest version, right-click & save to your HDD, open the drawing in MSPaint (or a similar image editor), and use the selection box tool to measure between points. 1 pixel in the original-size drawing is 1/16 inch. To measure angled lines, use the Pythagorean theorem: a^2 plus b^2 = c^2

Here's a sample VIN stamping:

Share This
Url
Tag
Thumb

eBcombined.GIF | Hits: 6447 | Size: 57.2 KB | Posted on: 6/15/11 | Link to this image

Early Bronco Details
IF THE IMAGE IS TOO SMALL, click it.

The dash layout diagrams have been corrected, but this might be more thorough:
http://classicbroncos.com/forums/showthread.php?t=270702

See also:

Share This
Url
Tag
Thumb

eBlineC.GIF | Hits: 8619 | Size: 32.57 KB | Posted on: 2/5/11 | Link to this image

Paintable early Bronco line drawings

1. Click the image (to get the ORIGINAL size) before saving it. Open the image using MSPaint (or other image editing software), then Save As a 16-color BMP with a custom name (eg., 74eBline.BMP). Change the original GIF attributes to Read-Only.

2. Select each uncut fender (using white transparent background) and either install or delete them. Then delete any other unneeded parts.

3. Install or delete the hitch receiver, step bar, & pitman arm to the frame. Install the tire carriers on the bodies & copy/paste the spare so they match, or delete them. Swap to the fuel door & rotate the rear side markers for '77.

4. Select the body tub (both if your mouse has a tilt-wheel) and lower it straight down onto the frame, adjusting the body lift height.

5. Install or delete the cage, door/insert, door mirror, & top. To see the interior, paint the windows white (transparent) before moving them.

6. Paint your tire size & any smaller black; paint larger sizes white & erase their numbers. Copy the wheel & place a Paste of it directly below the rear axle bumpstop on the frame (each view), adjusting height. Paint the lock knob black, then red, then light gray to eliminate it. Paste the fronts directly below the coil spring, adjusting height to match the rears.

7. Add t-case shifter(s), driveshafts, radius arms, steering & suspension links at appropriate angles, and any other mods.

8. Crop & then Save the customized image. If you want more colors, save it as a 256-color or 16-bit BMP. Saving as a JPG or GIF (or any compressed filetype) will blur the colors and prevent them from being changed again. Once the image is saved with more colors, you can blend your own and paint it.

There are gaps in certain black lines so that paint will fill each area to try various color schemes. But MSPaint actually makes it easy to add flames/pinstriping/splashes/stripes if you want, so spend a little time playing with it.

To restore a damaged or deleted part, open the read-only GIF in another Paint instance, and copy the required section; then paste it into the editable drawing and paint to match.

The front & rear views aren't easily editable.

http://classicbroncos.com/forums/showthread.php?t=176111

Here's an example:

'66-70 don't have the 4 notches in the headlight rings for access to the adjusting screws.

See also:

Share This
Url
Tag
Thumb

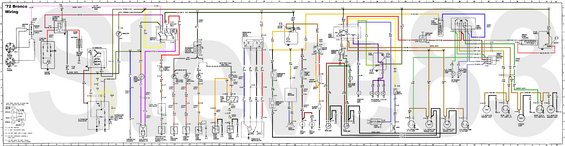

Wiring72strip.jpg | Hits: 4109 | Size: 30.24 KB | Posted on: 11/27/16 | Link to this image

1972 Bronco Wiring Diagram
IF THE IMAGE IS TOO SMALL, click it.

Improved, corrected, & combined version of Seabiscuit's colorized diagrams. This is an early version - I may delete & re-upload it several more times with corrections, revisions, and additions.

Before printing, click the image to make sure you have the largest version.

Share This
Url
Tag
Thumb

Wiring73-74aPwrDstb.JPG | Hits: 17239 | Size: 91.5 KB | Posted on: 10/2/11 | Link to this image

'73-74 Bronco Power Distribution
IF THE IMAGE IS TOO SMALL, click it.

Repair Locations Grid:

Improved, corrected, & combined versions of Seabiscuit's colorized diagrams. Connector faces, component locations, and technical oversight provided by Viperwolf1. When printed at full scale, the diagrams can be combined into a continuous strip.

Before printing, click the image to make sure you have the largest version.

See also:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

For '79 & similar trucks, see:
http://www.supermotors.net/registry/24302/78593-2

Index '73-74 Bronco Wiring
--------------------------------------------------
Components (search using CTRL&F4)
Alternator . . . . . . . A1-B1
Alternator Voltage Regulator . J1-K1
AM Radio . . . . . . . . D16
Ambient Switch . . . . . . E7
Ammeter . . . . . . . . B4
Auxilliary Fuel Tank Sender . J12
Backup Lamp, LHR . . . . . K15
Backup Lamp, RHR . . . . . K16
Backup Lamp Switch . . . . E14, F4
Ballast Resistor . . . . . E4
Battery . . . . . . . . D3-E3
Beam Select Switch . . . . D20
Blinker Switch . . . . . . E29-E30
Block Heater . . . . . . K32
Blower Motor . . . . . . G38
Blower Motor Resistor . . . D38
Blower Motor Switch . . . . C38
Brake Lamp, LHR . . . . . G33
Brake Lamp, RHR . . . . . G35
Brake Lamp Switch . . . . . C29
Brake Warning Lamp . . . . F6
Brake Warning Switch . . . . J6
Breakerless Ignition Module . K3
Capacitor, Noise Suppression . E2
Carburetor Valve . . . . . J5
Cigar Lighter . . . . . . E22
Coil . . . . . . . . . H4-J4
Constant Voltage Unit . . . C9
Coolant Temperature Gauge . . F8
Coolant Temperature Sender . . K8
CV Unit . . . . . . . . C9
Distributor . . . . . . . G3-K3
Dome Lamp . . . . . . . D17
Dual Brake Warning Switch . . J6
Emergency Signal Flasher . . E32
Emergency Signal Switch . . . G32
Emission Control Solenoid . . J5, G7
Engine Block Heater . . . . K32
Flasher, Emergency Signal . . E32
Flasher, Turn Signal . . . . C32
Front Fuel Sender . . . . . J12
Fuel Gauge . . . . . . . C10
Fuel Sender . . . . . . . J10, J12
Fuel Tank Selector Switch . . E11
Fuse 1 (20A) Blower . . . . A38
Fuse 2 (15A) Turn Wash Radio . B15
Fuse 3 (2A) Illumination . . B18
Fuse 4 (15A) Cigar Crtsy Rev . B23
Fuse 5 (20A) Hazards . . . . B32
Fuse Inline (7.5A) TRS Switch . C7
Fusible Link . . . . . . C3
Gauge, Ammeter . . . . . . B4
Gauge, Fuel . . . . . . . C10
Gauge, Oil Pressure . . . . F9
Gauge, Temperature . . . . F8
Generator . . . . . . . A1-B1
Hazard Signal Flasher . . . E32
Hazard Signal Switch . . . . G32
Headlamp, Left . . . . . . H19
Headlamp, Right . . . . . H20
Headlamp Dimmer Switch . . . D20
Headlamp Switch . . . . . C21-C22
Headlamp Switch Lamp . . . . J18
Heater, Block Immersion . . . K32
Heater Blower Switch . . . . C38
Heater Blower Motor . . . . G38
Heater Blower Resistor . . . D38
Heater Control Lamp . . . . E17
High-Altitude Solenoid Valve . J5
High-Beam Switch . . . . . D20
High-Beam Indicator Lamp . . G20
Horn . . . . . . . . . E18
Horn Switch . . . . . . . D19
ICVR . . . . . . . . . C9
Ignition Coil . . . . . . H4-J4
Ignition Module . . . . . K3
Ignition Resistor . . . . . E4
Ignition Switch . . . . . C6-D6
Immersion Heater . . . . . K32
Indicator Lamp, Brake Warning . F6
Indicator Lamp, L Turn . . . H29
Indicator Lamp, High-Beam . . G20
Indicator Lamp, R Turn . . . H30
Inline Fuse (7.5A) TRS Switch . C7
Instrument Cluster Lamp . . . H18
Instrument Cluster Voltage Reg. C9
Key Switch . . . . . . . C6-D6
Lamp, Backup, LHR . . . . . K15
Lamp, Backup, RHR . . . . . J16
Lamp, Brake, LHR . . . . . G33
Lamp, Brake, RHR . . . . . G35
Lamp, Brake Warning Indicator . F6
Lamp, Dome . . . . . . . D17
Lamp, Head, Left . . . . . H19
Lamp, Head, Right . . . . . H20
Lamp, Headlamp Switch . . . J18
Lamp, Heater Control . . . . E17
Lamp, High-Beam Indicator . . G20
Lamp, Instrument Cluster . . H18
Lamp, Left Turn Indicator . . H29
Lamp, License . . . . . . G37
Lamp, Map . . . . . . . C17
Lamp, Park, LHF . . . . . J22
Lamp, Park, LHR . . . . . G33
Lamp, Park, RHF . . . . . F22
Lamp, Park, RHR . . . . . G35
Lamp, PRNDL Illumination . . G18
Lamp, Reverse, LHR . . . . K15
Lamp, Reverse, RHR . . . . K16
Lamp, Right Turn Indicator . . H30
Lamp, Shifter Illumination . . G18
Lamp, Side Marker, LHF . . . K22
Lamp, Side Marker, LHR . . . G34
Lamp, Side Marker, RHF . . . H22
Lamp, Side Marker, RHR . . . G36
Lamp, Stop, LHR . . . . . G33
Lamp, Stop, RHR . . . . . G35
Lamp, Turn, LHF . . . . . J22
Lamp, Turn, LHR . . . . . G33
Lamp, Turn, RHF . . . . . F22
Lamp, Turn, RHR . . . . . G35
Lamp, Wiper Switch . . . . J18
License Lamp . . . . . . G37
Lighter Socket . . . . . . E22
Loop Ammeter . . . . . . B4
Main Fuel Tank Sender. . . . J10
Map Lamp . . . . . . . . C17
Marker Lamp, LHF Side . . . K22
Marker Lamp, LHR Side . . . G34
Marker Lamp, RHF Side . . . H22
Marker Lamp, RHR Side . . . G36
Module, Breakerless Ignition . K3
Motor, Heater Blower . . . . G38
Motor, Starter . . . . . . H3-J4
Motor, Windshield Wiper . . . J13
Motor, Washer Pump . . . . K13
Neutral Safety Switch . . . F4
Oil Pressure Gauge . . . . F9
Oil Pressure Sender . . . . K9
Park Lamp, LHF . . . . . . J22
Park Lamp, LHR . . . . . . G33
Park Lamp, RHF . . . . . . F22
Park Lamp, RHR . . . . . . G35
Park Neutral Position Switch . F4
Power Point . . . . . . . E22
PRNDL Illumination Lamp . . . G18
Radio . . . . . . . . . D16
Radio Capacitor . . . . . E2
Radio Speaker . . . . . . F15
Rear Fuel Sender . . . . . J10
Relay, Horn . . . . . . . F11
Relay, Starter . . . . . . D3
Resistor, Ignition Ballast . . E4
Resistor, Blower Motor . . . D38
Reverse Lamp, LHR . . . . . K15
Reverse Lamp, RHR . . . . . K16
Reverse Lamp Switch . . . . E14, F4
Sender, Fuel, Front . . . . J12
Sender, Fuel, Rear . . . . J10
Sender, Oil Pressure . . . . K9
Sender, Temperature . . . . K8
Shifter Illumination Lamp . . G18
Side Marker Lamp, LHF . . . K22
Side Marker Lamp, LHR . . . G34
Side Marker Lamp, RHF . . . H22
Side Marker Lamp, RHR . . . G36
Solenoid, Carburetor Emission . J5, G7
Solenoid, Vacuum Valve . . . G7
Speaker . . . . . . . . F15
Starter Motor . . . . . . H3-J4
Starter Relay . . . . . . D3
Stop Lamp, LHR . . . . . . G33
Stop Lamp, RHR . . . . . . G35
Stop Lamp Switch . . . . . C29
Switch, Ambient . . . . . E7
Switch, Backup Lamp . . . . E14, F4
Switch, Blinker . . . . . E29-E30
Switch, Blower Motor . . . . C38
Switch, Brake Lamp . . . . C29
Switch, Dual Brake Warning . . J6
Switch, Emergency Signal . . G32
Switch, Fuel Tank Selector . . E11
Switch, Hazard Signal . . . G32
Switch, Headlamp . . . . . C21-C22
Switch, Heater Blower . . . C38
Switch, High-Beam Dimmer . . D20
Switch, Horn . . . . . . D19
Switch, Ignition . . . . . C6-D6
Switch, Neutral Safety (PNP) . F4
Switch, Reverse Lamp . . . . E14, F4
Switch, Stop Lamp . . . . . C29
Switch, TRS . . . . . . . J7
Switch, Turn Signal . . . . E29-E30
Switch, Windshield Washer . . B13
Switch, Windshield Wiper . . B13
Temperature Gauge . . . . . F8
Temperature Sender . . . . K8
TRS Switch . . . . . . . J7
Turn Signal, LHF . . . . . J22
Turn Signal, LHR . . . . . G33
Turn Signal Flasher . . . . C32
Turn Signal Indicator, L . . E22
Turn Signal Indicator, R . . E23
Turn Signal, RHF . . . . . F22
Turn Signal, RHR . . . . . G35
Turn Signal Switch . . . . E29-E30
Vacuum Valve Solenoid . . . G7
Valve, Carburetor Solenoid . . C9
Voltage Regulator, Alternator . J1-K1
Voltage Regulator, Instruments C9
Water Temperature Gauge . . . F8
Water Temperature Sender . . K8
Windshield Washer Switch . . B13
Windshield Washer Pump Motor . K13
Windshield Wiper Motor . . . J13
Windshield Wiper Switch . . B13
Windshield Wiper Switch Lamp . J18
--------------------------------------------------
Connectors
C201 (Alternator) . . . . . A1-B2
C202 (Voltage Regulator) . . E1
C203 (Radio Capacitor) . . . D2
C205 (Ammeter) . . . . . . B4
C206 (Inline) . . . . . . A3
C207 (Battery ) . . . . . C3
C208 (Battery -) . . . . . E3
C209 (Distributor Cap) . . . G3, J3
C210 (Distributor) . . . . H3, K3
C211 (Starter Relay Battery) . C3
C212 (Starter Relay Starter) . D3
C213 (Starter Relay S) . . . D3
C214 (Starter Relay I) . . . D4
C215 (Ignition Coil) . . . . H4
C216 (Ignition Coil) . . . . H4
C217 (Ignition Coil) . . . . J4
C218 (Inline) . . . . . . F4, H8-H9
C219 (Ambient Switch) . . . E7
C220 (Inline) . . . . . . F7
C221 (Vacuum Valve Solenoid) . G7
C222 (Inline, NSS) . . . . E3-E4, E15
C223 (ICVR) . . . . . . . B9
C224 (ICVR) . . . . . . . B9
C225 (Temp Gauge) . . . . . E8
C226 (Temp Gauge) . . . . . G8
C227 (Temp Sender) . . . . J8
C228 (Oil Gauge) . . . . . E9
C229 (Oil Gauge) . . . . . G9
C230 (Oil Sender) . . . . . J9
C231 (Fuel Gauge) . . . . . B10
C232 (Fuel Gauge) . . . . . D10, G10
C233 (Inline) . . . . . . D23, D30-D31, H10
C234 (Rear Fuel Sender) . . . J10
C235 (Tank Select Switch) . . D11
C236 (Tank Select Switch) . . F11
C237 (Tank Select Switch) . . F11
C238 (Inline) . . . . . . H11
C239 (Front Fuel Sender) . . J11
C240 (Ignition Switch) . . . C6
C241 (Ignition Switch) . . . C6
C242 (Ignition Switch) . . . D6
C243 (Inline) . . . . . . G6, G15
C244 (TRS Switch) . . . . . J7
C245 (Starter) . . . . . . K2
C301 (Wiper Switch) . . . . C13
C302 (Inline) . . . . . . E13
C303 (Inline) . . . . . . F13
C304 (Wiper Motor) . . . . H13
C305 (Washer Pump) . . . . K14
C307 (Brake Warning Switch) . J6
C308 (L Backup Lamp) . . . . J15
C309 (R Backup Lamp) . . . . J16
C310 (Backup Switch) . . . . E15
C311 (H/L & Wiper Ill.) . . . J17
C312 (Heater Ill.) . . . . F17
C313 (Inline) . . . . . . B17
C314 (Dome Lamp) . . . . . D17
C315 (Map Lamp) . . . . . A17
C316 (Horn) . . . . . . . E18
C317 (Inline) . . . . . . G5
C318 (Carb Solenoid) . . . . H5
C319 (Speaker) . . . . . . E16
C320 (Inline) . . . . . . H15, C33-C37
C321 (Turn Signal Switch) . . F29-F30
C322 (Radio) . . . . . . C16
C401 (Headlamp Dimmer Switch) . E20
C402 (L Headlamp) . . . . . H19
C403 (R Headlamp) . . . . . H20
C404 (RHF Marker) . . . . . H21
C405 (RHF Turn) . . . . . F22
C406 (LHF Marker) . . . . . K21
C407 (LHF Turn) . . . . . J22
C408 (Headlamp Switch) . . . B21-C22
C409 (Hazard Switch) . . . . G32
C410 (A/C Outlet) . . . . . J32
C411 (Turn Flasher) . . . . C32
C412 (Hazard Flasher) . . . E32
C413 (Cigar Lighter) . . . . D22
C414 (Block Heater) . . . . J32
C415 (Brake Switch) . . . . C29
C501 (L Taillamp) . . . . . F33
C502 (LHR Marker) . . . . . F34
C503 (R Taillamp) . . . . . F35
C504 (RHR Marker) . . . . . F36
C505 (License Lamp) . . . . F37
C506 (Blower Switch) . . . . C38
C507 (Blower Switch) . . . . C38
C508 (Blower Resistor) . . . D38
C509 (Blower Motor) . . . . E38
--------------------------------------------------
Grounds
G201 (Voltage Regulator) . . H1
G202 (Block) . . . . . . E3
G204 (Rear Fuel Tank) . . . K10
G205 (Front Fuel Tank) . . . K11
G206 (L Valve Cover) . . . . K7
G301 (Instrument Panel) . . . K17
G302 (W/S Frame) . . . . . K17
G303 (Wiper Motor) . . . . K13
G401 (L Core Support) . . . K19, K22
G402 (R Core Support) . . . K21, G22
G501 (LHR Side Marker) . . . K34
G502 (RHR Side Marker) . . . K36
G503 (L T/G) . . . . . . K37
G504 (Blower Case) . . . . K38
--------------------------------------------------
Splices
S201 (Starter Relay) . . . . C2
S202 (Ignition Switch) . . . A5-A15
S203 (Ignition Switch) . . . E5
S204 (Ignition Switch) . . . A4-A21
S205 (Ignition Switch) . . . E7
S301 (Steering Column) . . . G18
S302 (Headlamp Switch) . . . C15
S401 (Headlamp Dimmer Switch) . E20
S402 (Headlamp Dimmer Switch) . F20

Share This
Url
Tag
Thumb

Wiring73-74bGaWprRad.JPG | Hits: 9219 | Size: 92.19 KB | Posted on: 6/16/11 | Link to this image

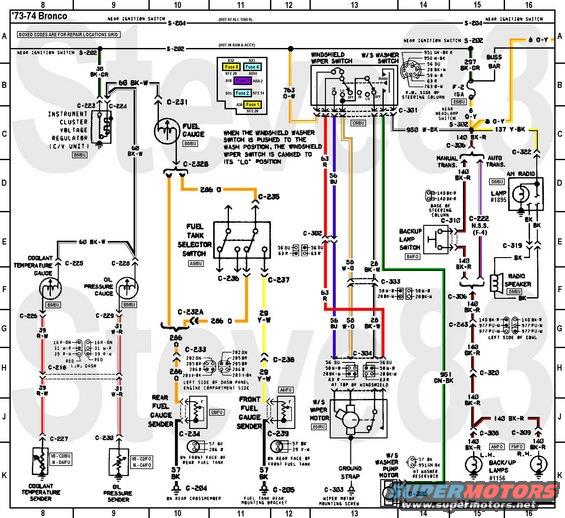

'73-74 Bronco Gauges Wiper Radio
IF THE IMAGE IS TOO SMALL, click it.

Repair Locations Grid:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

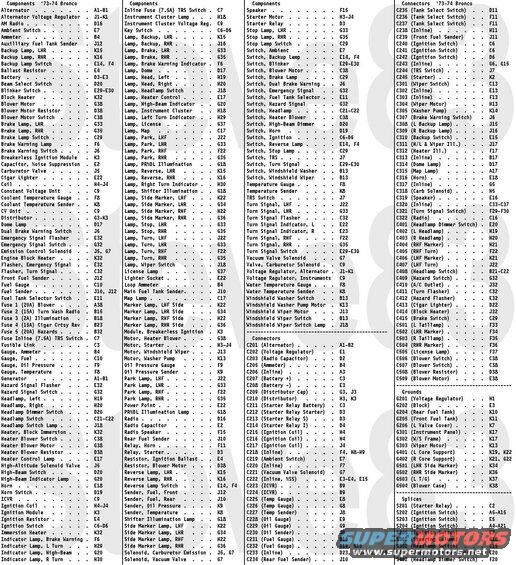

Index '73-74 Bronco Wiring
--------------------------------------------------
Components
Alternator . . . . . . . A1-B1
Alternator Voltage Regulator . J1-K1
AM Radio . . . . . . . . D16
Ambient Switch . . . . . . E7
Ammeter . . . . . . . . B4
Auxilliary Fuel Tank Sender . J12
Backup Lamp, LHR . . . . . K15
Backup Lamp, RHR . . . . . K16
Backup Lamp Switch . . . . E14, F4
Ballast Resistor . . . . . E4
Battery . . . . . . . . D3-E3
Beam Select Switch . . . . D20
Blinker Switch . . . . . . E29-E30
Block Heater . . . . . . K32
Blower Motor . . . . . . G38
Blower Motor Resistor . . . D38
Blower Motor Switch . . . . C38
Brake Lamp, LHR . . . . . G33
Brake Lamp, RHR . . . . . G35
Brake Lamp Switch . . . . . C29
Brake Warning Lamp . . . . F6
Brake Warning Switch . . . . J6
Breakerless Ignition Module . K3
Capacitor, Noise Suppression . E2
Carburetor Valve . . . . . J5
Cigar Lighter . . . . . . E22
Coil . . . . . . . . . H4-J4
Constant Voltage Unit . . . C9
Coolant Temperature Gauge . . F8
Coolant Temperature Sender . . K8
CV Unit . . . . . . . . C9
Distributor . . . . . . . G3-K3
Dome Lamp . . . . . . . D17
Dual Brake Warning Switch . . J6
Emergency Signal Flasher . . E32
Emergency Signal Switch . . . G32
Emission Control Solenoid . . J5, G7
Engine Block Heater . . . . K32
Flasher, Emergency Signal . . E32
Flasher, Turn Signal . . . . C32
Front Fuel Sender . . . . . J12
Fuel Gauge . . . . . . . C10
Fuel Sender . . . . . . . J10, J12
Fuel Tank Selector Switch . . E11
Fuse 1 (20A) Blower . . . . A38
Fuse 2 (15A) Turn Wash Radio . B15
Fuse 3 (2A) Illumination . . B18
Fuse 4 (15A) Cigar Crtsy Rev . B23
Fuse 5 (20A) Hazards . . . . B32
Fuse Inline (7.5A) TRS Switch . C7
Fusible Link . . . . . . C3
Gauge, Ammeter . . . . . . B4
Gauge, Fuel . . . . . . . C10
Gauge, Oil Pressure . . . . F9
Gauge, Temperature . . . . F8
Generator . . . . . . . A1-B1
Hazard Signal Flasher . . . E32
Hazard Signal Switch . . . . G32
Headlamp, Left . . . . . . H19
Headlamp, Right . . . . . H20
Headlamp Dimmer Switch . . . D20
Headlamp Switch . . . . . C21-C22
Headlamp Switch Lamp . . . . J18
Heater, Block Immersion . . . K32
Heater Blower Switch . . . . C38
Heater Blower Motor . . . . G38
Heater Blower Resistor . . . D38
Heater Control Lamp . . . . E17
High-Altitude Solenoid Valve . J5
High-Beam Switch . . . . . D20
High-Beam Indicator Lamp . . G20
Horn . . . . . . . . . E18
Horn Switch . . . . . . . D19
ICVR . . . . . . . . . C9
Ignition Coil . . . . . . H4-J4
Ignition Module . . . . . K3
Ignition Resistor . . . . . E4
Ignition Switch . . . . . C6-D6
Immersion Heater . . . . . K32
Indicator Lamp, Brake Warning . F6
Indicator Lamp, L Turn . . . H29
Indicator Lamp, High-Beam . . G20
Indicator Lamp, R Turn . . . H30
Inline Fuse (7.5A) TRS Switch . C7
Instrument Cluster Lamp . . . H18
Instrument Cluster Voltage Reg. C9
Key Switch . . . . . . . C6-D6
Lamp, Backup, LHR . . . . . K15
Lamp, Backup, RHR . . . . . J16
Lamp, Brake, LHR . . . . . G33
Lamp, Brake, RHR . . . . . G35
Lamp, Brake Warning Indicator . F6
Lamp, Dome . . . . . . . D17
Lamp, Head, Left . . . . . H19
Lamp, Head, Right . . . . . H20
Lamp, Headlamp Switch . . . J18
Lamp, Heater Control . . . . E17
Lamp, High-Beam Indicator . . G20
Lamp, Instrument Cluster . . H18
Lamp, Left Turn Indicator . . H29
Lamp, License . . . . . . G37
Lamp, Map . . . . . . . C17
Lamp, Park, LHF . . . . . J22
Lamp, Park, LHR . . . . . G33
Lamp, Park, RHF . . . . . F22
Lamp, Park, RHR . . . . . G35
Lamp, PRNDL Illumination . . G18
Lamp, Reverse, LHR . . . . K15
Lamp, Reverse, RHR . . . . K16
Lamp, Right Turn Indicator . . H30
Lamp, Shifter Illumination . . G18
Lamp, Side Marker, LHF . . . K22
Lamp, Side Marker, LHR . . . G34
Lamp, Side Marker, RHF . . . H22
Lamp, Side Marker, RHR . . . G36
Lamp, Stop, LHR . . . . . G33
Lamp, Stop, RHR . . . . . G35
Lamp, Turn, LHF . . . . . J22
Lamp, Turn, LHR . . . . . G33
Lamp, Turn, RHF . . . . . F22
Lamp, Turn, RHR . . . . . G35
Lamp, Wiper Switch . . . . J18
License Lamp . . . . . . G37
Lighter Socket . . . . . . E22
Loop Ammeter . . . . . . B4
Main Fuel Tank Sender. . . . J10
Map Lamp . . . . . . . . C17
Marker Lamp, LHF Side . . . K22
Marker Lamp, LHR Side . . . G34
Marker Lamp, RHF Side . . . H22
Marker Lamp, RHR Side . . . G36
Module, Breakerless Ignition . K3
Motor, Heater Blower . . . . G38
Motor, Starter . . . . . . H3-J4
Motor, Windshield Wiper . . . J13
Motor, Washer Pump . . . . K13
Neutral Safety Switch . . . F4
Oil Pressure Gauge . . . . F9
Oil Pressure Sender . . . . K9
Park Lamp, LHF . . . . . . J22
Park Lamp, LHR . . . . . . G33
Park Lamp, RHF . . . . . . F22
Park Lamp, RHR . . . . . . G35
Park Neutral Position Switch . F4
Power Point . . . . . . . E22
PRNDL Illumination Lamp . . . G18
Radio . . . . . . . . . D16
Radio Capacitor . . . . . E2
Radio Speaker . . . . . . F15
Rear Fuel Sender . . . . . J10
Relay, Horn . . . . . . . F11
Relay, Starter . . . . . . D3
Resistor, Ignition Ballast . . E4
Resistor, Blower Motor . . . D38
Reverse Lamp, LHR . . . . . K15
Reverse Lamp, RHR . . . . . K16
Reverse Lamp Switch . . . . E14, F4
Sender, Fuel, Front . . . . J12
Sender, Fuel, Rear . . . . J10
Sender, Oil Pressure . . . . K9
Sender, Temperature . . . . K8
Shifter Illumination Lamp . . G18
Side Marker Lamp, LHF . . . K22
Side Marker Lamp, LHR . . . G34
Side Marker Lamp, RHF . . . H22
Side Marker Lamp, RHR . . . G36
Solenoid, Carburetor Emission . J5, G7
Solenoid, Vacuum Valve . . . G7
Speaker . . . . . . . . F15
Starter Motor . . . . . . H3-J4
Starter Relay . . . . . . D3
Stop Lamp, LHR . . . . . . G33
Stop Lamp, RHR . . . . . . G35
Stop Lamp Switch . . . . . C29
Switch, Ambient . . . . . E7
Switch, Backup Lamp . . . . E14, F4
Switch, Blinker . . . . . E29-E30
Switch, Blower Motor . . . . C38
Switch, Brake Lamp . . . . C29
Switch, Dual Brake Warning . . J6
Switch, Emergency Signal . . G32
Switch, Fuel Tank Selector . . E11
Switch, Hazard Signal . . . G32
Switch, Headlamp . . . . . C21-C22
Switch, Heater Blower . . . C38
Switch, High-Beam Dimmer . . D20
Switch, Horn . . . . . . D19
Switch, Ignition . . . . . C6-D6
Switch, Neutral Safety (PNP) . F4
Switch, Reverse Lamp . . . . E14, F4
Switch, Stop Lamp . . . . . C29
Switch, TRS . . . . . . . J7
Switch, Turn Signal . . . . E29-E30
Switch, Windshield Washer . . B13
Switch, Windshield Wiper . . B13
Temperature Gauge . . . . . F8
Temperature Sender . . . . K8
TRS Switch . . . . . . . J7
Turn Signal, LHF . . . . . J22
Turn Signal, LHR . . . . . G33
Turn Signal Flasher . . . . C32
Turn Signal Indicator, L . . E22
Turn Signal Indicator, R . . E23
Turn Signal, RHF . . . . . F22
Turn Signal, RHR . . . . . G35
Turn Signal Switch . . . . E29-E30
Vacuum Valve Solenoid . . . G7
Valve, Carburetor Solenoid . . C9
Voltage Regulator, Alternator . J1-K1
Voltage Regulator, Instruments C9
Water Temperature Gauge . . . F8
Water Temperature Sender . . K8
Windshield Washer Switch . . B13
Windshield Washer Pump Motor . K13
Windshield Wiper Motor . . . J13
Windshield Wiper Switch . . B13
Windshield Wiper Switch Lamp . J18
--------------------------------------------------
Connectors
C201 (Alternator) . . . . . A1-B2
C202 (Voltage Regulator) . . E1
C203 (Radio Capacitor) . . . D2
C205 (Ammeter) . . . . . . B4
C206 (Inline) . . . . . . A3
C207 (Battery ) . . . . . C3
C208 (Battery -) . . . . . E3
C209 (Distributor Cap) . . . G3, J3
C210 (Distributor) . . . . H3, K3
C211 (Starter Relay Battery) . C3
C212 (Starter Relay Starter) . D3
C213 (Starter Relay S) . . . D3
C214 (Starter Relay I) . . . D4
C215 (Ignition Coil) . . . . H4
C216 (Ignition Coil) . . . . H4
C217 (Ignition Coil) . . . . J4
C218 (Inline) . . . . . . F4, H8-H9
C219 (Ambient Switch) . . . E7
C220 (Inline) . . . . . . F7
C221 (Vacuum Valve Solenoid) . G7
C222 (Inline, NSS) . . . . E3-E4, E15
C223 (ICVR) . . . . . . . B9
C224 (ICVR) . . . . . . . B9
C225 (Temp Gauge) . . . . . E8
C226 (Temp Gauge) . . . . . G8
C227 (Temp Sender) . . . . J8
C228 (Oil Gauge) . . . . . E9
C229 (Oil Gauge) . . . . . G9
C230 (Oil Sender) . . . . . J9
C231 (Fuel Gauge) . . . . . B10
C232 (Fuel Gauge) . . . . . D10, G10
C233 (Inline) . . . . . . D23, D30-D31, H10
C234 (Rear Fuel Sender) . . . J10
C235 (Tank Select Switch) . . D11
C236 (Tank Select Switch) . . F11
C237 (Tank Select Switch) . . F11
C238 (Inline) . . . . . . H11
C239 (Front Fuel Sender) . . J11
C240 (Ignition Switch) . . . C6
C241 (Ignition Switch) . . . C6
C242 (Ignition Switch) . . . D6
C243 (Inline) . . . . . . G6, G15
C244 (TRS Switch) . . . . . J7
C245 (Starter) . . . . . . K2
C301 (Wiper Switch) . . . . C13
C302 (Inline) . . . . . . E13
C303 (Inline) . . . . . . F13
C304 (Wiper Motor) . . . . H13
C305 (Washer Pump) . . . . K14
C307 (Brake Warning Switch) . J6
C308 (L Backup Lamp) . . . . J15
C309 (R Backup Lamp) . . . . J16
C310 (Backup Switch) . . . . E15
C311 (H/L & Wiper Ill.) . . . J17
C312 (Heater Ill.) . . . . F17
C313 (Inline) . . . . . . B17
C314 (Dome Lamp) . . . . . D17
C315 (Map Lamp) . . . . . A17
C316 (Horn) . . . . . . . E18
C317 (Inline) . . . . . . G5
C318 (Carb Solenoid) . . . . H5
C319 (Speaker) . . . . . . E16
C320 (Inline) . . . . . . H15, C33-C37
C321 (Turn Signal Switch) . . D18, F29-F30
C322 (Radio) . . . . . . C16
C401 (Headlamp Dimmer Switch) . E20
C402 (L Headlamp) . . . . . H19
C403 (R Headlamp) . . . . . H20
C404 (RHF Marker) . . . . . H21
C405 (RHF Turn) . . . . . F22
C406 (LHF Marker) . . . . . K21
C407 (LHF Turn) . . . . . J22
C408 (Headlamp Switch) . . . B21-C22
C409 (Hazard Switch) . . . . G32
C410 (A/C Outlet) . . . . . J32
C411 (Turn Flasher) . . . . C32
C412 (Hazard Flasher) . . . E32
C413 (Cigar Lighter) . . . . D22
C414 (Block Heater) . . . . J32
C415 (Brake Switch) . . . . C29
C501 (L Taillamp) . . . . . F33
C502 (LHR Marker) . . . . . F34
C503 (R Taillamp) . . . . . F35
C504 (RHR Marker) . . . . . F36
C505 (License Lamp) . . . . F37
C506 (Blower Switch) . . . . C38
C507 (Blower Switch) . . . . C38
C508 (Blower Resistor) . . . D38
C509 (Blower Motor) . . . . E38
--------------------------------------------------
Grounds
G201 (Voltage Regulator) . . H1
G202 (Block) . . . . . . E3
G204 (Rear Fuel Tank) . . . K10
G205 (Front Fuel Tank) . . . K11
G206 (L Valve Cover) . . . . K7
G301 (Instrument Panel) . . . K17
G302 (W/S Frame) . . . . . K17
G303 (Wiper Motor) . . . . K13
G401 (L Core Support) . . . K19, K22
G402 (R Core Support) . . . K21, G22
G501 (LHR Side Marker) . . . K34
G502 (RHR Side Marker) . . . K36
G503 (L T/G) . . . . . . K37
G504 (Blower Case) . . . . K38
--------------------------------------------------
Splices
S201 (Starter Relay) . . . . C2
S202 (Ignition Switch) . . . A5-A15
S203 (Ignition Switch) . . . E5
S204 (Ignition Switch) . . . A4-A21
S205 (Ignition Switch) . . . E7
S301 (Steering Column) . . . G18
S302 (Headlamp Switch) . . . C15
S401 (Headlamp Dimmer Switch) . E20
S402 (Headlamp Dimmer Switch) . F20

Share This
Url
Tag
Thumb

Wiring73-74cIntHdlts.JPG | Hits: 8627 | Size: 88.01 KB | Posted on: 6/16/11 | Link to this image

'73-74 Bronco Interior Lights Headlights Horn Cigar Lighter
IF THE IMAGE IS TOO SMALL, click it.

NOTE that C233 is partially shown (for clarity) on this page in circuit 285 Br, and again on the next page completely. This will create a slight mismatch if the pages are combined in a strip.

Repair Locations Grid:

Share This
Url
Tag
Thumb

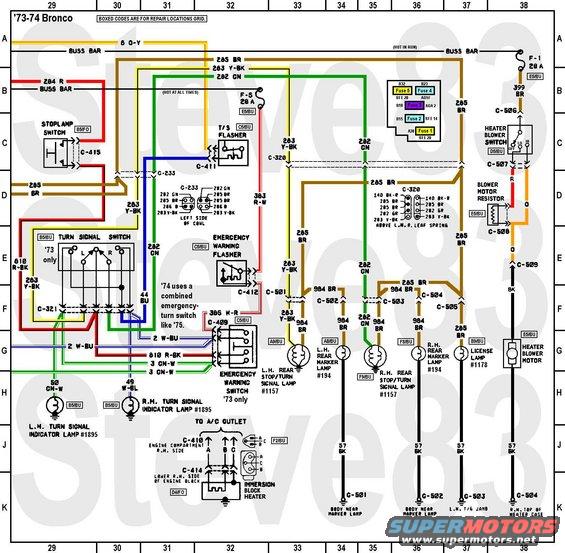

Wiring73-74dTlltsHtr.JPG | Hits: 8683 | Size: 87.73 KB | Posted on: 6/16/11 | Link to this image

'73-74 Bronco Taillights Heater
IF THE IMAGE IS TOO SMALL, click it.

NOTE that C233 was partially shown on the previous page in circuit 285 Br, and again on this page completely. This will create a slight mismatch if the pages are combined in a strip.

Repair Locations Grid:

Improved, corrected, & combined versions of Seabiscuit's colorized diagrams. Connector faces, component locations, and technical oversight provided by Viperwolf1 & DirtDonk. When printed at full scale, the diagrams can be combined into a continuous strip.

Before printing, click the image to make sure you have the largest version.

See also:

Share This
Url
Tag
Thumb

Wiring73-74eIndex.JPG | Hits: 4116 | Size: 131.42 KB | Posted on: 5/20/11 | Link to this image

'73-74 Bronco Wiring Diagram Index
IF THE IMAGE IS TOO SMALL, click it.

Improved, corrected, & combined versions of Seabiscuit's colorized diagrams. Connector faces, component locations, and technical oversight provided by Viperwolf1. When printed at full scale, the diagrams can be combined into a continuous strip.

Before printing, click the image to make sure you have the largest version.

See also:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

Share This
Url
Tag
Thumb

Wiring75-77aPwrDstb.JPG | Hits: 15267 | Size: 66.25 KB | Posted on: 8/1/11 | Link to this image

'75-77 Bronco Power Distribution
IF THE IMAGE IS TOO SMALL, click it.

Repair Locations Grid:

Improved, corrected, & combined versions of Seabiscuit's colorized diagrams. Connector faces, component locations, and technical oversight provided by Viperwolf1.

Before printing, click the image to make sure you have the largest version.

The distributor pickup should have 400-800 Ohms across the 734 Or/Y & 735 Pu/Bu wires.

Circuit 932 Bu (carb solenoid) could be R/Y on '77s.

To add an aftermarket volt gauge, connect its hot feed to C223 (or any other point on circuit 30/297).

See also:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

For '79 & similar trucks, see:
http://www.supermotors.net/registry/24302/78593-2

Index '75-77 Bronco Wiring
--------------------------------------------------
Components
Alternator . . . . . . . A1-B1
AM Radio . . . . . . . . D28
Ammeter . . . . . . . . C4
Auxilliary Fuel Tank Sender . F15
Backup Lamp, LHR . . . . . G27
Backup Lamp, RHR . . . . . H27
Backup Lamp Switch . . . . A25, G4
Ballast Resistor . . . . . C7
Battery . . . . . . . . E3-F3
Beam Select Switch . . . . C16
Blinker Switch . . . . . . C22-C23
Block Heater . . . . . . E11
Blower Motor . . . . . . F38
Blower Motor Resistor . . . D38
Blower Motor Switch . . . . B38
Brake Lamp, LHR . . . . . G23
Brake Lamp, RHR . . . . . G26
Brake Lamp Switch . . . . . B21
Brake Warning Lamp . . . . C8
Brake Warning Switch . . . . E8
Breakerless Ignition Module . G6
Capacitor, Radio . . . . . D3
Carburetor Valve . . . . . C9
Choke Heater . . . . . . E1
Cigar Lighter . . . . . . G35
Coil . . . . . . . . . F7
Constant Voltage Unit . . . C11
Coolant Temperature Gauge . . C13
Coolant Temperature Sender . . E13
CV Unit . . . . . . . . C11
Distributor . . . . . . . F9
Dome Lamp . . . . . . . F33
Dual Brake Warning Switch . . E8
Electric Choke Heater . . . E1
Emergency Signal Flasher . . A24
Emergency Signal Switch . . . C22
Emissions Solenoid Valve . . C9
Engine Block Heater . . . . E11
Flasher, Emergency Signal . . A24
Flasher, Turn Signal . . . . B22
Front Fuel Sender . . . . . F15
Fuel Gauge . . . . . . . C14
Fuel Sender . . . . . . . F15, H14
Fuel Tank Selector Switch . . D15
Fuse 1 (20A) . . . . . . A38
Fuse 2 (15A) . . . . . . A19
Fuse 3 (2A) . . . . . . . B31
Fuse 4 (15A) . . . . . . A34
Fuse 5 (20A) . . . . . . A33
Fusible Link . . . . . . E2-E5
Gauge, Ammeter . . . . . . C4
Gauge, Fuel . . . . . . . C14
Gauge, Oil Pressure . . . . C12
Gauge, Temperature . . . . C13
Generator . . . . . . . A1-B1
Hazard Signal Flasher . . . A24
Hazard Signal Switch . . . . C22
Headlamp, Left . . . . . . F16
Headlamp, Right . . . . . F17
Headlamp Dimmer Switch . . . C16
Headlamp Switch . . . . . B19, C33-C34
Headlamp Switch Lamp . . . . D29
Heater, Block Immersion . . . E11
Heater Blower Switch . . . . B38
Heater Blower Motor . . . . F38
Heater Blower Resistor . . . D38
Heater Control Lamp . . . . F30
Heater, Electric Choke . . . E1
High-Altitude Solenoid Valve . C9
High-Beam Switch . . . . . C16
High-Beam Indicator Lamp . . E17
Horn . . . . . . . . . J12, J13
Horn Relay . . . . . . . F11
Horn Switch . . . . . . . F13
ICVR . . . . . . . . . C11
Ignition Coil . . . . . . F7
Ignition Module . . . . . G6
Ignition Resistor . . . . . C7
Ignition Switch . . . . . B5-D5
Immersion Heater . . . . . E11
Indicator Lamp, Brake Warning . C8
Indicator Lamp, L Turn . . . F21
Indicator Lamp, High-Beam . . E17
Indicator Lamp, R Turn . . . F22
Instrument Cluster Lamp . . . F31
Instrument Cluster Voltage Reg. C11
Key Switch . . . . . . . B5-D5
Lamp, Backup, LHR . . . . . G27
Lamp, Backup, RHR . . . . . H27
Lamp, Brake, LHR . . . . . G23
Lamp, Brake, RHR . . . . . G26
Lamp, Brake Warning Indicator . C8
Lamp, Dome . . . . . . . F33
Lamp, Head, Left . . . . . F16
Lamp, Head, Right . . . . . F17
Lamp, Headlamp Switch . . . D29
Lamp, Heater Control . . . . F30
Lamp, High-Beam Indicator . . E17
Lamp, Instrument Cluster . . F31
Lamp, Left Turn Indicator . . F21
Lamp, License . . . . . . G25
Lamp, Map . . . . . . . F34
Lamp, Park, LHF . . . . . G21
Lamp, Park, LHR . . . . . G23
Lamp, Park, RHF . . . . . G19
Lamp, Park, RHR . . . . . G26
Lamp, PRNDL . . . . . . . F32
Lamp, Reverse, LHR . . . . G27
Lamp, Reverse, RHR . . . . H27
Lamp, Right Turn Indicator . . F22
Lamp, Shifter Illumination . . F32
Lamp, Side Marker, LHF . . . F20
Lamp, Side Marker, LHR . . . D24
Lamp, Side Marker, RHF . . . E18
Lamp, Side Marker, RHR . . . D25
Lamp, Stop, LHR . . . . . G23
Lamp, Stop, RHR . . . . . G26
Lamp, Turn, LHF . . . . . G21
Lamp, Turn, LHR . . . . . G23
Lamp, Turn, RHF . . . . . G19
Lamp, Turn, RHR . . . . . G26
Lamp, Wiper Switch . . . . D29
License Lamp . . . . . . G25
Lighter Socket . . . . . . G35
Loop Ammeter . . . . . . C4
Main Fuel Tank Sender. . . . H14
Map Lamp . . . . . . . . F34
Marker Lamp, LHF Side . . . F20
Marker Lamp, LHR Side . . . D24
Marker Lamp, RHF Side . . . E18
Marker Lamp, RHR Side . . . D25
Module, Breakerless Ignition . G6
Motor, Heater Blower . . . . F38
Motor, Starter . . . . . . H3-J4
Motor, Windshield Wiper . . . G36
Motor, Washer Pump . . . . F37
Neutral Safety Switch . . . . . G4, A27
Oil Pressure Gauge . . . . C12
Oil Pressure Sender . . . . D10
Park Lamp, LHF . . . . . . G21
Park Lamp, LHR . . . . . . G23
Park Lamp, RHF . . . . . . G19
Park Lamp, RHR . . . . . . G26
Power Point . . . . . . . G35
PRNDL Lamp . . . . . . . F32
Radio . . . . . . . . . D28
Radio Capacitor . . . . . D3
Radio Speaker . . . . . . G28
Rear Fuel Sender . . . . . H14
Relay, Horn . . . . . . . F11
Relay, Starter . . . . . . E5
Resistor, Ignition Ballast . . C7
Resistor, Blower Motor . . . D38
Reverse Lamp, LHR . . . . . G27
Reverse Lamp, RHR . . . . . H27
Reverse Lamp Switch . . . . A25, G4
Sender, Fuel, Front . . . . F15
Sender, Fuel, Rear . . . . H14
Sender, Oil Pressure . . . . D10
Sender, Temperature . . . . E13
Shifter Illumination Lamp . . F32
Side Marker Lamp, LHF . . . F20
Side Marker Lamp, LHR . . . D24
Side Marker Lamp, RHF . . . E18
Side Marker Lamp, RHR . . . D25
Solenoid, Carburetor Emission . C9
Speaker . . . . . . . . G28
Starter Motor . . . . . . H3-J4
Starter Relay . . . . . . E5
Stop Lamp, LHR . . . . . . G23
Stop Lamp, RHR . . . . . . G26
Stop Lamp Switch . . . . . B21
Switch, Backup Lamp . . . . A25, G4
Switch, Blinker . . . . . C22-C23
Switch, Blower Motor . . . . B38
Switch, Brake Lamp . . . . B21
Switch, Dual Brake Warning . . E28
Switch, Emergency Signal . . C22
Switch, Fuel Tank Selector . . D15
Switch, Hazard Signal . . . C22
Switch, Headlamp . . . . . B19, C33-C34
Switch, Heater Blower . . . B38
Switch, High-Beam Dimmer . . C16
Switch, Horn . . . . . . F13
Switch, Ignition . . . . . B5-D5
Switch, Neutral Safety . . . . . G4, A27
Switch, Reverse Lamp . . . . A25, G4
Switch, Stop Lamp . . . . . B21
Switch, Turn Signal . . . . C22-C23
Switch, Windshield Washer . . B37
Switch, Windshield Wiper . . B36
Temperature Gauge . . . . . C13
Temperature Sender . . . . E13
Turn Signal, LHF . . . . . G21
Turn Signal, LHR . . . . . G23
Turn Signal Flasher . . . . B22
Turn Signal Indicator, L . . E22
Turn Signal Indicator, R . . E23
Turn Signal, RHF . . . . . G19
Turn Signal, RHR . . . . . G26
Turn Signal Switch . . . . C22-C23
Valve, Carburetor Solenoid . . C9
Voltage Regulator, Alternator . G1-H2
Voltage Regulator, Instruments C11
Water Temperature Gauge . . . C13
Water Temperature Sender . . E13
Windshield Washer Switch . . B37
Windshield Washer Pump Motor . F37
Windshield Wiper Motor . . . G36
Windshield Wiper Switch . . B36
Windshield Wiper Switch Lamp . D29
--------------------------------------------------
Connectors
C201 (Alternator) . . . . . A2, C1
C202 (Voltage Regulator) . . F1-F2
C203 (Radio Capacitor) . . . C2
C205 (Ammeter) . . . . . . C3
C206 (Inline) . . . . . . A3-B3
C207 (Battery POS ) . . . . . E3
C208 (Battery NEG ) . . . . . F3
C209 (Distributor Cap) . . . F9
C211 (Starter Relay Battery) . E5
C212 (Starter Relay Starter) . E5
C213 (Starter Relay S) . . . E5
C214 (Starter Relay I) . . . E5
C216 (Ignition Coil) . . . . G7
C217 (Ignition Coil) . . . . F7
C218 (Inline) . . . . . . D12-13, F7
C222 (Inline, NSS) . . . . F3-F4, A27
C223 (ICVR) . . . . . . . C11
C224 (ICVR) . . . . . . . C11
C225 (Temp Gauge) . . . . . C13
C226 (Temp Gauge) . . . . . C13
C227 (Temp Sender) . . . . E13
C228 (Oil Gauge) . . . . . C12
C229 (Oil Gauge) . . . . . C12
C230 (Oil Sender) . . . . . E12
C231 (Fuel Gauge) . . . . . B14
C232 (Fuel Gauge) . . . . . C14, E14
C233 (Inline) . . . . . . F14, B20
C234 (Rear Fuel Sender) . . . H14
C235 (Tank Select Switch) . . D15
C236 (Tank Select Switch) . . D15
C237 (Tank Select Switch) . . D15
C238 (Inline) . . . . . . E15
C239 (Front Fuel Sender) . . F15
C240 (Ignition Switch) . . . B6-C6
C241 (Ignition Switch) . . . C5-C6
C242 (Ignition Switch) . . . C6
C243 (Inline) . . . . . . B8, D27
C245 (Starter) . . . . . . J5
C249 (Ignition Module) . . . H6
C252 (Ignition Module) . . . F6
C253 (Distributor) . . . . G10
C262 (Carb Solenoid) . . . . C9
C301 (Wiper Switch) . . . . C36-C37
C302 (Inline) . . . . . . D36-D37
C303 (Inline) . . . . . . E36
C304 (Wiper Motor) . . . . F36
C305 (Washer Pump) . . . . F37
C307 (Brake Warning Switch) . E8
C308 (L Backup Lamp) . . . . F27
C309 (R Backup Lamp) . . . . F27
C310 (Backup Switch) . . . . A26
C311 (H/L & Wiper Ill.) . . . D30
C312 (Heater Ill.) . . . . F29
C313 (Inline) . . . . . . E33
C314 (Dome Lamp) . . . . . F33
C315 (Map Lamp) . . . . . E34
C316 (Horn) . . . . . . . G12-H12
C319 (Speaker) . . . . . . E28
C320 (Inline) . . . . . . C23-C27
C321 (Turn Hazard Switch) . . G11, D21-D22, E32
C322 (Radio) . . . . . . C28
C323 (Horn Relay) . . . . . F11
C324 (Manual Override) . . . G13
C325 (Horn Speed Switch) . . F13
C326 (Cable Speed Sensor) . . F12
C327 (Horn Selector Relay) . . H13
C328 (Horn Selector Relay) . . H13
C329 (City Horn) . . . . . J12
C330 (Country Horn) . . . . J13
C401 (Headlamp Dimmer Switch) . C16
C402 (L Headlamp) . . . . . F16
C403 (R Headlamp) . . . . . F17
C404 (RHF Marker) . . . . . E19
C405 (RHF Turn) . . . . . F19
C406 (LHF Marker) . . . . . F20
C407 (LHF Turn) . . . . . F21
C408 (Headlamp Switch) . . . A19-B19, B34, D34
C410 (A/C Outlet) . . . . . E10
C411 (Turn Flasher) . . . . A23, B23
C412 (Hazard Flasher) . . . B24, C24
C413 (Cigar Lighter) . . . . D43
C414 (Block Heater) . . . . E10
C415 (Brake Switch) . . . . A21-B21
C501 (L Taillamp) . . . . . F23
C502 (LHR Marker) . . . . . C24
C503 (R Taillamp) . . . . . F26
C504 (RHR Marker) . . . . . C25
C505 (License Lamp) . . . . F25
C506 (Blower Switch) . . . . B38
C507 (Blower Switch) . . . . C38
C508 (Blower Resistor) . . . D38
C509 (Blower Motor) . . . . E38
--------------------------------------------------
Grounds
G201 (Voltage Regulator) . . F1
G202 (Block) . . . . . . E3
G204 (Rear Fuel Tank) . . . J14
G205 (Front Fuel Tank) . . . J15
G301 (Instrument Panel) . . . G29
G302 (W/S Frame) . . . . . G33
G303 (Wiper Motor) . . . . G36
G401 (L Core Support) . . . H16, H21
G402 (R Core Support) . . . H18, H19
G501 (LHR Side Marker) . . . E24
G502 (RHR Side Marker) . . . E25
G503 (L T/G) . . . . . . H25
G504 (Blower Case) . . . . G38
--------------------------------------------------
Splices
S201 (Starter Relay) . . . . E2
S202 (Ignition Switch) . . . A11
S203 (Ignition Switch) . . . B8
S204 (Ignition Switch) . . . A4
S205 (Ignition Switch) . . . E7
S301 (Steering Column) . . . D31
S302 (Headlamp Switch) . . . A20
S401 (Headlamp Dimmer Switch) . D16
S402 (Headlamp Dimmer Switch) . E16

Share This
Url
Tag
Thumb

Wiring75-77bExtrLtg.JPG | Hits: 8528 | Size: 62.57 KB | Posted on: 6/16/11 | Link to this image

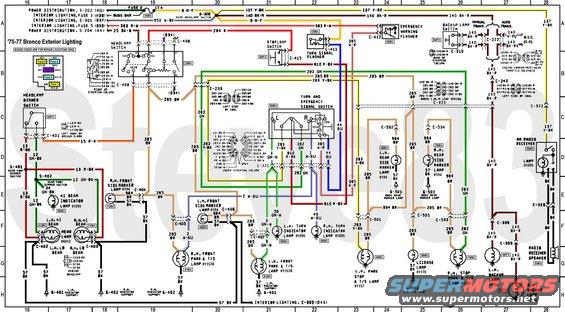

'75-77 Bronco Exterior Lighting
IF THE IMAGE IS TOO SMALL, click it.

Repair Locations Grid:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

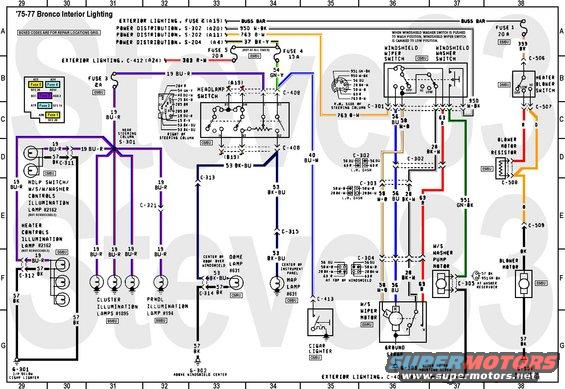

Index '75-77 Bronco Wiring
--------------------------------------------------
Components
Alternator . . . . . . . A1-B1
AM Radio . . . . . . . . D28
Ammeter . . . . . . . . C4
Auxilliary Fuel Tank Sender . F15
Backup Lamp, LHR . . . . . G27
Backup Lamp, RHR . . . . . H27
Backup Lamp Switch . . . . A25, G4
Ballast Resistor . . . . . C7
Battery . . . . . . . . E3-F3
Beam Select Switch . . . . C16
Blinker Switch . . . . . . C22-C23
Block Heater . . . . . . E11
Blower Motor . . . . . . F38
Blower Motor Resistor . . . D38
Blower Motor Switch . . . . B38
Brake Lamp, LHR . . . . . G23
Brake Lamp, RHR . . . . . G26
Brake Lamp Switch . . . . . B21
Brake Warning Lamp . . . . C8
Brake Warning Switch . . . . E8
Breakerless Ignition Module . G6
Carburetor Valve . . . . . C9
Choke Heater . . . . . . E1
Cigar Lighter . . . . . . G35
Coil . . . . . . . . . F7
Constant Voltage Unit . . . C11
Coolant Temperature Gauge . . C13
Coolant Temperature Sender . . E13
CV Unit . . . . . . . . C11
Distributor . . . . . . . F9
Dome Lamp . . . . . . . F33
Dual Brake Warning Switch . . E8
Electric Choke Heater . . . E1
Emergency Signal Flasher . . A24
Emergency Signal Switch . . . C22
Emissions Solenoid Valve . . C9
Engine Block Heater . . . . E11
Flasher, Emergency Signal . . A24
Flasher, Turn Signal . . . . B22
Front Fuel Sender . . . . . F15
Fuel Gauge . . . . . . . C14
Fuel Sender . . . . . . . F15, H14
Fuel Tank Selector Switch . . D15
Fuse 1 (20A) . . . . . . A38
Fuse 2 (15A) . . . . . . A19
Fuse 3 (2A) . . . . . . . B31
Fuse 4 (15A) . . . . . . A34
Fuse 5 (20A) . . . . . . A33
Fusible Link . . . . . . E2-E5
Gauge, Ammeter . . . . . . C4
Gauge, Fuel . . . . . . . C14
Gauge, Oil Pressure . . . . C12
Gauge, Temperature . . . . C13
Generator . . . . . . . A1-B1
Hazard Signal Flasher . . . A24
Hazard Signal Switch . . . . C22
Headlamp, Left . . . . . . F16
Headlamp, Right . . . . . F17
Headlamp Dimmer Switch . . . C16
Headlamp Switch . . . . . B19, C33-C34
Headlamp Switch Lamp . . . . D29
Heater, Block Immersion . . . E11
Heater Blower Switch . . . . B38
Heater Blower Motor . . . . F38
Heater Blower Resistor . . . D38
Heater Control Lamp . . . . F30
Heater, Electric Choke . . . E1
High-Altitude Solenoid Valve . C9
High-Beam Switch . . . . . C16
High-Beam Indicator Lamp . . E17
Horn . . . . . . . . . J12, J13
Horn Relay . . . . . . . F11
Horn Switch . . . . . . . F13
ICVR . . . . . . . . . C11
Ignition Coil . . . . . . F7
Ignition Module . . . . . G6
Ignition Resistor . . . . . C7
Ignition Switch . . . . . B5-D5
Immersion Heater . . . . . E11
Indicator Lamp, Brake Warning . C8
Indicator Lamp, L Turn . . . F21
Indicator Lamp, High-Beam . . E17
Indicator Lamp, R Turn . . . F22
Instrument Cluster Lamp . . . F31
Instrument Cluster Voltage Reg. C11
Key Switch . . . . . . . B5-D5
Lamp, Backup, LHR . . . . . G27
Lamp, Backup, RHR . . . . . H27
Lamp, Brake, LHR . . . . . G23
Lamp, Brake, RHR . . . . . G26
Lamp, Brake Warning Indicator . C8
Lamp, Dome . . . . . . . F33
Lamp, Head, Left . . . . . F16
Lamp, Head, Right . . . . . F17
Lamp, Headlamp Switch . . . D29
Lamp, Heater Control . . . . F30
Lamp, High-Beam Indicator . . E17
Lamp, Instrument Cluster . . F31
Lamp, Left Turn Indicator . . F21
Lamp, License . . . . . . G25
Lamp, Map . . . . . . . F34
Lamp, Park, LHF . . . . . G21
Lamp, Park, LHR . . . . . G23
Lamp, Park, RHF . . . . . G19
Lamp, Park, RHR . . . . . G26
Lamp, PRNDL . . . . . . . F32
Lamp, Reverse, LHR . . . . G27
Lamp, Reverse, RHR . . . . H27
Lamp, Right Turn Indicator . . F22
Lamp, Shifter Illumination . . F32
Lamp, Side Marker, LHF . . . F20
Lamp, Side Marker, LHR . . . D24
Lamp, Side Marker, RHF . . . E18
Lamp, Side Marker, RHR . . . D25
Lamp, Stop, LHR . . . . . G23
Lamp, Stop, RHR . . . . . G26
Lamp, Turn, LHF . . . . . G21
Lamp, Turn, LHR . . . . . G23
Lamp, Turn, RHF . . . . . G19
Lamp, Turn, RHR . . . . . G26
Lamp, Wiper Switch . . . . D29
License Lamp . . . . . . G25
Lighter Socket . . . . . . G35
Loop Ammeter . . . . . . C4
Main Fuel Tank Sender. . . . H14
Map Lamp . . . . . . . . F34
Marker Lamp, LHF Side . . . F20
Marker Lamp, LHR Side . . . D24
Marker Lamp, RHF Side . . . E18
Marker Lamp, RHR Side . . . D25
Module, Breakerless Ignition . G6
Motor, Heater Blower . . . . F38
Motor, Starter . . . . . . H3-J4
Motor, Windshield Wiper . . . G36
Motor, Washer Pump . . . . F37
Neutral Safety Switch . . . . . G4, A27
Oil Pressure Gauge . . . . C12
Oil Pressure Sender . . . . D10
Park Lamp, LHF . . . . . . G21
Park Lamp, LHR . . . . . . G23
Park Lamp, RHF . . . . . . G19
Park Lamp, RHR . . . . . . G26
Power Point . . . . . . . G35
PRNDL Lamp . . . . . . . F32
Radio . . . . . . . . . D28
Radio Capacitor . . . . . D3
Radio Speaker . . . . . . G28
Rear Fuel Sender . . . . . H14
Relay, Horn . . . . . . . F11
Relay, Starter . . . . . . E5
Resistor, Ignition Ballast . . C7
Resistor, Blower Motor . . . D38
Reverse Lamp, LHR . . . . . G27
Reverse Lamp, RHR . . . . . H27
Reverse Lamp Switch . . . . A25, G4
Sender, Fuel, Front . . . . F15
Sender, Fuel, Rear . . . . H14
Sender, Oil Pressure . . . . D10
Sender, Temperature . . . . E13
Shifter Illumination Lamp . . F32
Side Marker Lamp, LHF . . . F20
Side Marker Lamp, LHR . . . D24
Side Marker Lamp, RHF . . . E18
Side Marker Lamp, RHR . . . D25
Solenoid, Carburetor Emission . C9
Speaker . . . . . . . . G28
Starter Motor . . . . . . H3-J4
Starter Relay . . . . . . E5
Stop Lamp, LHR . . . . . . G23
Stop Lamp, RHR . . . . . . G26
Stop Lamp Switch . . . . . B21
Switch, Backup Lamp . . . . A25, G4
Switch, Blinker . . . . . C22-C23
Switch, Blower Motor . . . . B38
Switch, Brake Lamp . . . . B21
Switch, Dual Brake Warning . . E28
Switch, Emergency Signal . . C22
Switch, Fuel Tank Selector . . D15
Switch, Hazard Signal . . . C22
Switch, Headlamp . . . . . B19, C33-C34
Switch, Heater Blower . . . B38
Switch, High-Beam Dimmer . . C16
Switch, Horn . . . . . . F13
Switch, Ignition . . . . . B5-D5
Switch, Neutral Safety . . . . . G4, A27
Switch, Reverse Lamp . . . . A25, G4
Switch, Stop Lamp . . . . . B21
Switch, Turn Signal . . . . C22-C23
Switch, Windshield Washer . . B37
Switch, Windshield Wiper . . B36
Temperature Gauge . . . . . C13
Temperature Sender . . . . E13
Turn Signal, LHF . . . . . G21
Turn Signal, LHR . . . . . G23
Turn Signal Flasher . . . . B22
Turn Signal Indicator, L . . E22
Turn Signal Indicator, R . . E23
Turn Signal, RHF . . . . . G19
Turn Signal, RHR . . . . . G26
Turn Signal Switch . . . . C22-C23
Valve, Carburetor Solenoid . . C9
Voltage Regulator, Alternator . G1-H2
Voltage Regulator, Instruments C11
Water Temperature Gauge . . . C13
Water Temperature Sender . . E13
Windshield Washer Switch . . B37
Windshield Washer Pump Motor . F37
Windshield Wiper Motor . . . G36
Windshield Wiper Switch . . B36
Windshield Wiper Switch Lamp . D29
--------------------------------------------------
Connectors
C201 (Alternator) . . . . . A2, C1
C202 (Voltage Regulator) . . F1-F2
C203 (Radio Capacitor) . . . C2
C205 (Ammeter) . . . . . . C3
C206 (Inline) . . . . . . A3-B3
C207 (Battery POS ) . . . . . E3
C208 (Battery NEG ) . . . . . F3
C209 (Distributor Cap) . . . F9
C211 (Starter Relay Battery) . E5
C212 (Starter Relay Starter) . E5
C213 (Starter Relay S) . . . E5
C214 (Starter Relay I) . . . E5
C216 (Ignition Coil) . . . . G7
C217 (Ignition Coil) . . . . F7
C218 (Inline) . . . . . . D12-13, F7
C222 (Inline, NSS) . . . . F3-F4, A27
C223 (ICVR) . . . . . . . C11
C224 (ICVR) . . . . . . . C11
C225 (Temp Gauge) . . . . . C13
C226 (Temp Gauge) . . . . . C13
C227 (Temp Sender) . . . . E13
C228 (Oil Gauge) . . . . . C12
C229 (Oil Gauge) . . . . . C12
C230 (Oil Sender) . . . . . E12
C231 (Fuel Gauge) . . . . . B14
C232 (Fuel Gauge) . . . . . C14, E14
C233 (Inline) . . . . . . F14, B20
C234 (Rear Fuel Sender) . . . H14
C235 (Tank Select Switch) . . D15
C236 (Tank Select Switch) . . D15
C237 (Tank Select Switch) . . D15
C238 (Inline) . . . . . . E15
C239 (Front Fuel Sender) . . F15
C240 (Ignition Switch) . . . B6-C6
C241 (Ignition Switch) . . . C5-C6
C242 (Ignition Switch) . . . C6
C243 (Inline) . . . . . . B8, D27
C245 (Starter) . . . . . . J5
C249 (Ignition Module) . . . H6
C252 (Ignition Module) . . . F6
C253 (Distributor) . . . . G10
C262 (Carb Solenoid) . . . . C9
C301 (Wiper Switch) . . . . C36-C37
C302 (Inline) . . . . . . D36-D37
C303 (Inline) . . . . . . E36
C304 (Wiper Motor) . . . . F36
C305 (Washer Pump) . . . . F37
C307 (Brake Warning Switch) . E8
C308 (L Backup Lamp) . . . . F27
C309 (R Backup Lamp) . . . . F27
C310 (Backup Switch) . . . . A26
C311 (H/L & Wiper Ill.) . . . D30
C312 (Heater Ill.) . . . . F29
C313 (Inline) . . . . . . E33
C314 (Dome Lamp) . . . . . F33
C315 (Map Lamp) . . . . . E34
C316 (Horn) . . . . . . . G12-H12
C319 (Speaker) . . . . . . E28
C320 (Inline) . . . . . . C23-C27
C321 (Turn Hazard Switch) . . G11, D21-D22, E32
C322 (Radio) . . . . . . C28
C323 (Horn Relay) . . . . . F11
C324 (Manual Override) . . . G13
C325 (Horn Speed Switch) . . F13
C326 (Cable Speed Sensor) . . F12
C327 (Horn Selector Relay) . . H13
C328 (Horn Selector Relay) . . H13
C329 (City Horn) . . . . . J12
C330 (Country Horn) . . . . J13
C401 (Headlamp Dimmer Switch) . C16
C402 (L Headlamp) . . . . . F16
C403 (R Headlamp) . . . . . F17
C404 (RHF Marker) . . . . . E19
C405 (RHF Turn) . . . . . F19
C406 (LHF Marker) . . . . . F20
C407 (LHF Turn) . . . . . F21
C408 (Headlamp Switch) . . . A19-B19, B34, D34
C410 (A/C Outlet) . . . . . E10
C411 (Turn Flasher) . . . . A23, B23
C412 (Hazard Flasher) . . . B24, C24
C413 (Cigar Lighter) . . . . D43
C414 (Block Heater) . . . . E10
C415 (Brake Switch) . . . . A21-B21
C501 (L Taillamp) . . . . . F23
C502 (LHR Marker) . . . . . C24
C503 (R Taillamp) . . . . . F26
C504 (RHR Marker) . . . . . C25
C505 (License Lamp) . . . . F25
C506 (Blower Switch) . . . . B38
C507 (Blower Switch) . . . . C38
C508 (Blower Resistor) . . . D38
C509 (Blower Motor) . . . . E38
--------------------------------------------------
Grounds
G201 (Voltage Regulator) . . F1
G202 (Block) . . . . . . E3
G204 (Rear Fuel Tank) . . . J14
G205 (Front Fuel Tank) . . . J15
G301 (Instrument Panel) . . . G29
G302 (W/S Frame) . . . . . G33
G303 (Wiper Motor) . . . . G36
G401 (L Core Support) . . . H16, H21
G402 (R Core Support) . . . H18, H19
G501 (LHR Side Marker) . . . E24
G502 (RHR Side Marker) . . . E25
G503 (L T/G) . . . . . . H25
G504 (Blower Case) . . . . G38
--------------------------------------------------
Splices
S201 (Starter Relay) . . . . E2
S202 (Ignition Switch) . . . A11
S203 (Ignition Switch) . . . B8
S204 (Ignition Switch) . . . A4
S205 (Ignition Switch) . . . E7
S301 (Steering Column) . . . D31
S302 (Headlamp Switch) . . . A20
S401 (Headlamp Dimmer Switch) . D16
S402 (Headlamp Dimmer Switch) . E16

Share This
Url
Tag
Thumb

Wiring75-77cIntrLtg.JPG | Hits: 6369 | Size: 67.53 KB | Posted on: 6/16/11 | Link to this image

'75-77 Bronco Interior Lighting
IF THE IMAGE IS TOO SMALL, click it.

Repair Locations Grid:

Share This
Url
Tag
Thumb

Wiring75-77dIndex.JPG | Hits: 3586 | Size: 128.35 KB | Posted on: 5/20/11 | Link to this image

'75-77 Bronco Wiring Index
IF THE IMAGE IS TOO SMALL, click it.
Somehow, I missed NEUTRAL SAFETY SWITCH . . G4, A27

Improved, corrected, & combined versions of Seabiscuit's colorized diagrams. Connector faces, component locations, and technical oversight provided by Viperwolf1.

Before printing, click the image to make sure you have the largest version.

See also:

https://www.fleet.ford.com/truckbbas/non-html/1997/c37_39_p.pdf

Share This
Url
Tag
Thumb

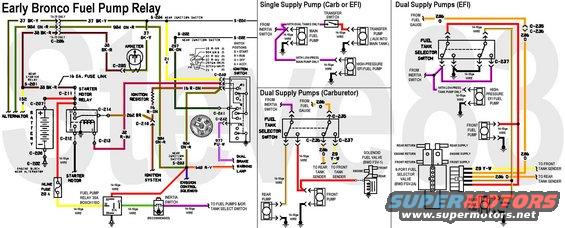

FuelPumpSwap.JPG | Hits: 12296 | Size: 44.11 KB | Posted on: 5/26/11 | Link to this image

Early Bronco Fuel Pump & Relay Wiring
IF THE IMAGE IS TOO SMALL, click it.

Most of the first (Left) panel of the diagram applies to all eBs. All the new FP wiring is near the bottom. The main power comes from a ring terminal on the starter relay; the trigger comes from a splice in circuit 904 (anywhere, including at the I terminal on the ig.sw.); the trigger ground must be continuous back to the battery (-) post (like all grounds). Each of the other 3 panels only applies to trucks whose owners choose the particular fuel pump setup described. So ignore the 2 that don't apply to YOUR eB.

There are several sources for both types of fuel valve, including O'Reilly AP, & BC Broncos. The FSV-2A kit includes a generic toggle switch, but the stock eB tank select switch is easy to rewire for either valve. Bosch/Tyco/ISO 30A cube relays are common & cheap.

The inertia (impact/crash/rollover) switch is inexpensive & easy-to-find at junkyards, and only ~$80 new (XF3Z9341AA), but a knock-off can be had for ~$40. If not from a JY, the pigtail is ~$12 (Pico 5756PT). It's worth it to make sure the fuel pump doesn't set the truck on fire after a wreck or rollover; particularly on vehicles without an EEC/PCM to turn off the FP relay when the engine stops.

For dual EFI, note that connectors 235 & 236 are the same gender, so they don't fit together. Either the connectors can be cut off & their wires spliced, or an intermediate connector can be used.

The small fuel valve has ~20 Ohms, so it draws ~0.7 A continuously when directing flow to its top port. It draws nothing (off) when the bottom port is active. The large valve draws slightly more, but ONLY while it's changing positions. Once the switch is made, it holds there mechanically, and draws no current in either position.

The transfer pump is risky because it's easy to cause big problems. There must be provisions NOT SHOWN in this diagram to prevent the transfer pump from running when the aux. tank is empty (damaging the pump), OR from running when the main tank is full (causing fuel to overflow) UNLESS the overflow is directed back to the aux. tank (which solves both problems, until the main tank stops overflowing).

Share This
Url
Tag
Thumb

3Gswap.JPG | Hits: 15386 | Size: 75.62 KB | Posted on: 5/26/11 | Link to this image

1G-to-3G (or 4G) Swap Wiring
IF THE IMAGE IS TOO SMALL, click it.

Compare to: . . . . . . . . . . . . . . . See also:

. . . . . . . . . . . . .

Note that the 3 wires going to the new voltage regulator connector are stock early Bronco voltage regulator circuits used for their original functions, so this swap is easier than it appears. Just splice them onto the 3G VR pigtail (WPT-119). Circuit 26 should NOT be connected to 37; cap each one off separately. Or, 37 can be attached to C211 to increase the current-handling capacity at S204.

The only real electrical modification is the addition of an inexpensive 4ga battery cable (eye-to-eye) available at any parts store for $5-10, and a 175A fuse w/holder (or similar circuit breaker) which is slightly harder to find, but still not expensive. But it might be cheaper & easier (by eliminating the 152-Y splice at S-201) to just grab the whole setup from a later junkyard vehicle, like this:

Since the stock '66-77 charge wire (37 Bk/Y) is too small to carry the new alternator's output, the stock '66-77 ammeter is equally useless after this mod (not that it was much good before), so a voltmeter is a logical replacement for it, and there are writeups for swapping one into the stock cluster on ClassicBroncos.com, and in this album:

This shows the MILDEST consequence of an alternator upgrade keeping the stock ammeter:

It COULD have been much worse - a fire in the dash with a dead short to the battery through a relatively heavy wire.

Although the 904 Gn/R connection to S203 is required, the ALT bulb & resistor aren't necessary for the alternator to work properly, but it's an inexpensive, easy, & effective addition to the circuit. The bulb only lights if the VR detects a fault (or before the engine starts). The resistor maintains the circuit if the bulb burns out, but doesn't interfere with the working bulb. A bulb holder with the correct resistor can be found in many Fords from the mid-80s to early-90s.

The choke heater shown is a stock 6V heater. For an aftermarket carburetor with a 12V heater (check it documentation), the best place to splice it is on circuit 932 Bu, which already goes to the carburetor area.

An aftermarket voltage regulator is available (commonly referred to as "1-wire", even though it needs 2 in addition to the charge cable) which eliminates the need for the LG/R wire and the option of the ALT lamp. Some exhibit intermittent charging problems and battery drains, but many work fine.

Thanks to Viperwolf1 for valuable input.

If the 3G doesn't quite fit the engine bracket, read this caption & the NEXT few:

Don't overlook the battery terminals or alternator mounting. Not only will poor connections prevent a high-output alternator from putting out its max; they can cause a WIDE variety of other symptoms & problems.

Share This
Url
Tag
Thumb

StarterSolSwap.JPG | Hits: 10876 | Size: 63.28 KB | Posted on: 5/25/11 | Link to this image

Starter Wiring for original (swinging pole shoe) or PMGR (solenoid-type)
IF THE IMAGE IS TOO SMALL, click it.

To swap from old to new: the original (~4ga) cable is moved to the battery side (M1) of the starter relay (E9TZ-11450-B), and a new smaller wire (~14-8ga) is run from the relay output (M2) to the new starter S terminal. No other terminals on the starter relay should be moved, but the starter cable should be adjacent to the battery cable. Clean all the ring terminals and posts with a wire brush so they make good contact to each other.

If the PMGR starter was shipped with a jumper from the large upper terminal to the small terminal, REMOVE & DISCARD it.

Don't overlook the battery terminals. Not only will bad ones prevent a high-torque starter from putting out its max torque; they can cause a WIDE variety of other symptoms & problems.

See also:

Share This
Url
Tag
Thumb

AuxFuseRelay-eB.jpg | Hits: 2757 | Size: 33.56 KB | Posted on: 1/14/16 | Link to this image

Auxiliary Fuse Relays
IF THE IMAGE IS TOO SMALL, click it.

Adding fuses this way minimizes the added load on the factory ignition switch contacts, and allows a wide variety of configurations. Points where new wire is connected are shown in lime green.

Both new SPDT control switches & relays are not required - they're shown, but optional. If all new accessories are to be controlled by 1 ignition switch position, then only that relay is required. If the ability to turn those accessories OFF while the ig.sw. is ON is not necessary, then the control switch can be omitted, and that ig.sw. feed can be connected directly to the control relay's 86 terminal.

The 1A fused battery feed to the SPDT control switches is optional to allow the accessories to be forced on temporarily without the key. Doing so will NOT power the factory circuits - only the new ones. For this function, a switch with a momentary position is recommended so the circuits aren't accidentally left on to drain the battery. Look for a switch marketed as "On-Off-(On)" or "On-Off-Mom"; some retailers may identify it as an SP3T/SPTT switch, and that configuration will work, too, simply by NOT connecting anything to the center throw. If this function is NOT required, an SPST switch is sufficient.

The wire gauges noted are the recommended MAXIMUM (lowest gauge number); wires 2~6 gauges smaller (higher number) will work, provided the current draw on each is considered & calculated. The fusible link wire should always be 4 gauge numbers smaller (higher) than the wire going to the new fuses. The fan fuse should actually be connected to the new fusible link closer to the battery - it's only drawn this way to keep the diagram more organized.

The fuse block & subsequent relays can be in the cabin or under the hood, provided wires that pass through body panels do not chafe or short. Fuses must be sized to protect the new wiring between the new fuse & the new accessory; wiring must be sized for the max current draw of all the accessories on that particular wire. Fuses & wires must not exceed the current capacity of the fuse block terminals, which is why the e-fan is shown separate - it's too high a draw for most aftermarket fuse blocks, and many OE (JY).

The SPST dash switches carry NONE of the accessories' loads, so they can all be very-low-current (inexpensive) switches. All the accessory load goes through the relays at the far Right of the diagram.

"Low-draw" means any accessory supplied with a 5A fuse or smaller. The total load on either control relay should not exceed ~25A.
"High-draw" means any accessory with a peak draw of 5~40A (60~500W). For 25-40A loads, be sure to use a 40A relay.
"Internal switch" means any primary control switch included with, attached to, or built into an electrical accessory, including a thermocouple chiller/cooler's external selector switch.
"RD" means radar detector. It's grouped with "engine-on" accessories because it's not needed if the vehicle is parked. The stereo & CB could be used while parked, so they're "key-on" accessories.
"Winch control" means a hard-wired dash switch to control a medium or large electric winch's built-in relays, or electric solenoid valves for a hydraulic winch. It does NOT mean the high-current inline control switch used on some very-light-duty (ATV) winches. ANY electric winch's main power wire should be connected directly to the starter relay's battery stud. I chose to connect this to the engine-running circuit for several reasons:
1) a winch draws a LOT of current, so the alternator needs to be putting out to help it run, and so the battery isn't drained too low to start the engine later;
2) the engine & drivetrain should always be used to help the winch move the vehicle, and the steering wheel needs to be unlocked (on vehicles with key-steering interlock);
3) when the key is removed, the dash switch is disabled, so someone inside the vehicle without the key can't easily or accidentally operate it;
4) if the winch is required with the key off, the SPDT control switch can be moved to the battery override position temporarily.

Those are all just suggestions based on best practices. This diagram is easily adaptable to almost any safe configuration.

This diagram was created from this set of symbols using MSPaint:

Share This
Url
Tag
Thumb

LighterSocket.JPG | Hits: 4216 | Size: 40.41 KB | Posted on: 6/23/11 | Link to this image

Selectable Lighter Socket
IF THE IMAGE IS TOO SMALL, click it.

The LED is optional, and can be purchased with the correct resistor for 12V use.

It's shown in an early Bronco ('66-77), but the basic layout works in all 12V vehicles.

Share This
Url
Tag
Thumb

66-72 SuspFrt.jpg | Hits: 870 | Size: 75.52 KB | Posted on: 7/7/19 | Link to this image

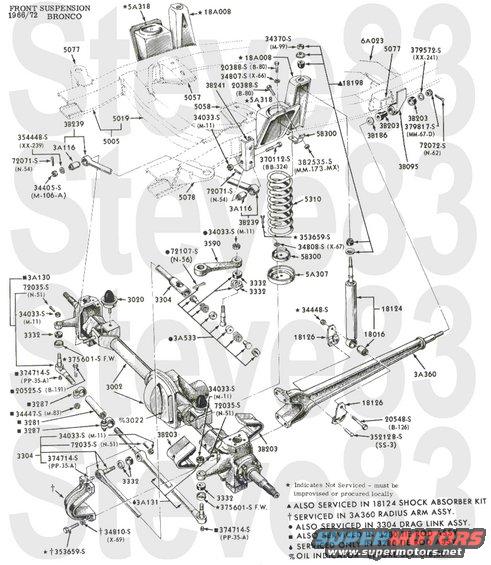

'66-72 Front Suspension
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

66-72 AirSpring.jpg | Hits: 783 | Size: 37.21 KB | Posted on: 7/7/19 | Link to this image

'66-72 Air Springs
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

66-71 FrontAxle.jpg | Hits: 788 | Size: 68.99 KB | Posted on: 7/7/19 | Link to this image

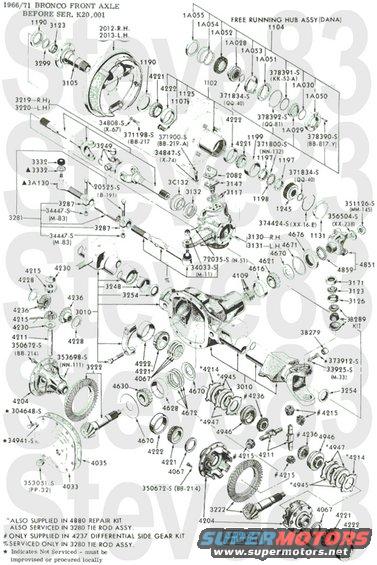

'66-71 Dana 30 Front Axle
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

71-72 FrontAxle.jpg | Hits: 798 | Size: 104.42 KB | Posted on: 7/7/19 | Link to this image

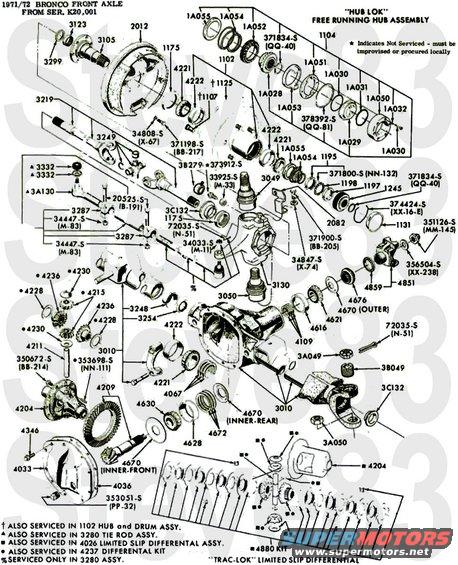

'71-72 Dana 44 Front Axle
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

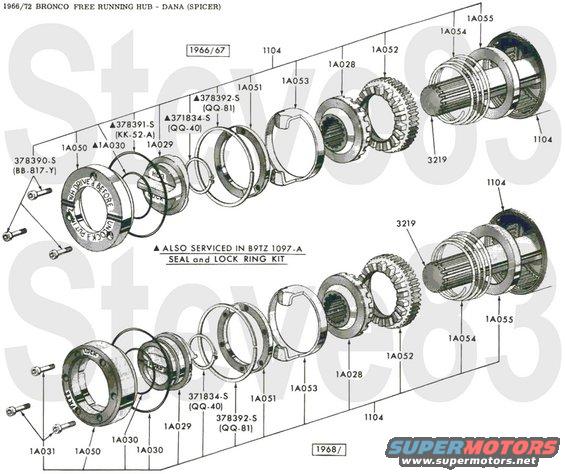

66-72 HubLock.jpg | Hits: 906 | Size: 63.35 KB | Posted on: 7/7/19 | Link to this image

'66-72 Hub Locks
IF THE IMAGE IS TOO SMALL, click it.

See also:

Share This
Url
Tag
Thumb

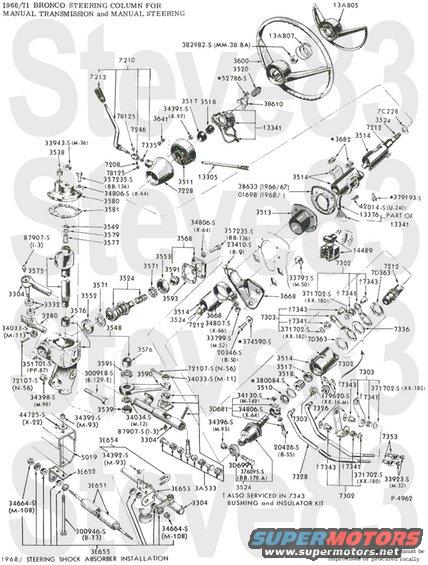

66-71 ColumnMan.jpg | Hits: 844 | Size: 72.95 KB | Posted on: 7/7/19 | Link to this image

'66-71 Manual Steering Column
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb

66-72 ManualStrg.jpg | Hits: 666 | Size: 44.72 KB | Posted on: 7/7/19 | Link to this image

'66-72 Manual Steering Gear Box
IF THE IMAGE IS TOO SMALL, click it.

Share This
Url
Tag
Thumb
