Album section

Connectors

From 1997 Ford Taurus, documented by SHOZ123.

21 photos
← Back to this vehicle

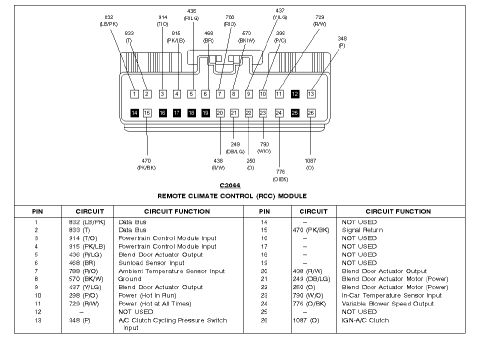

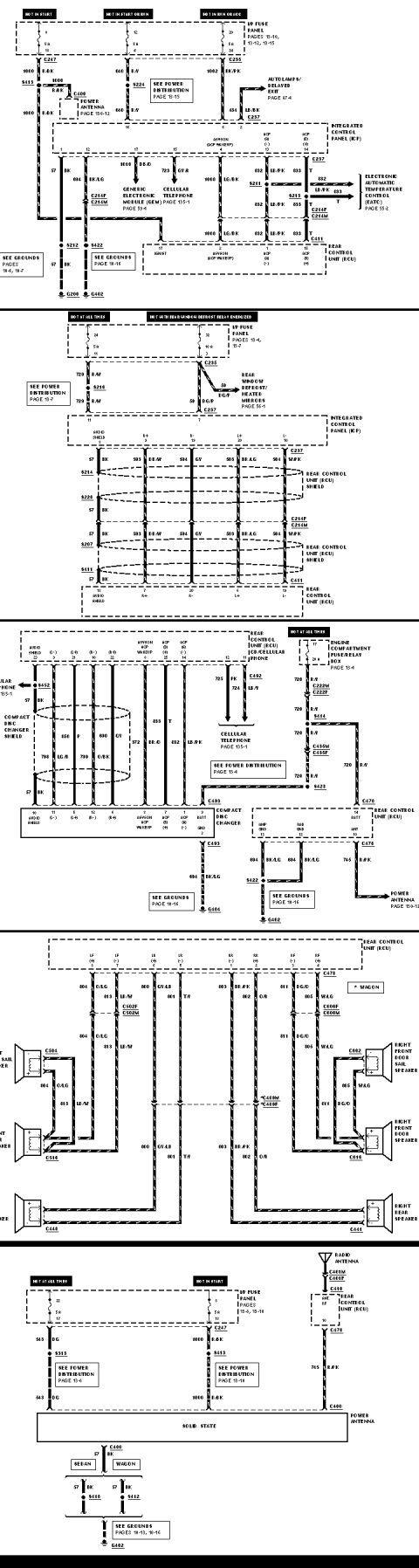

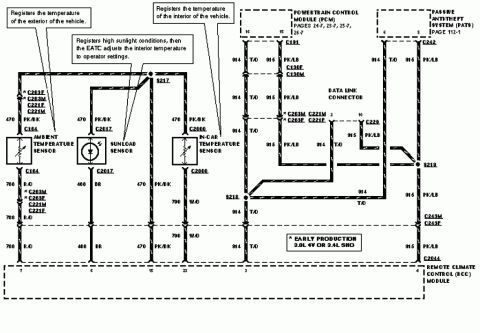

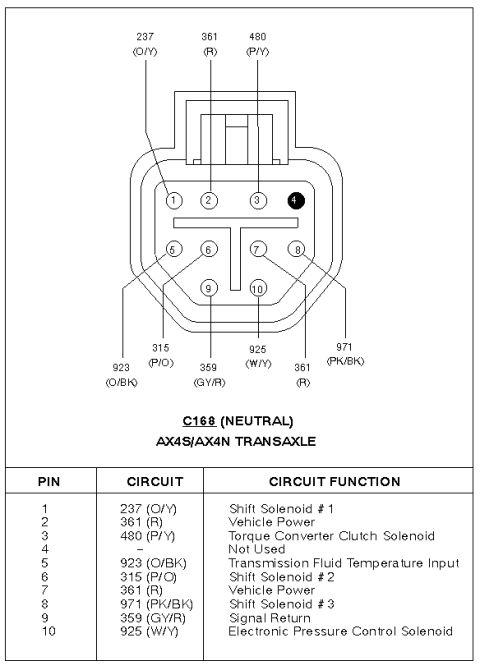

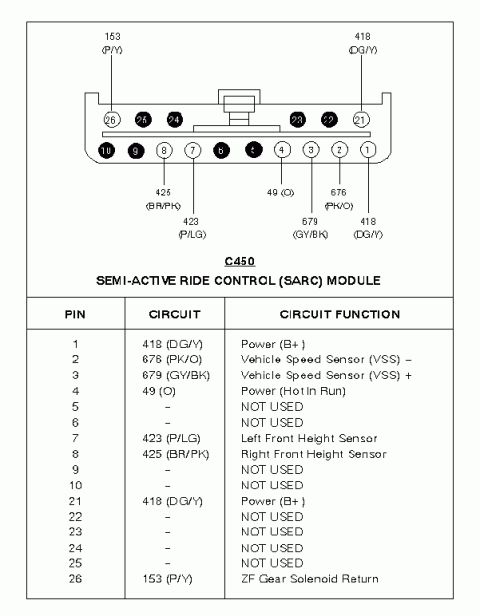

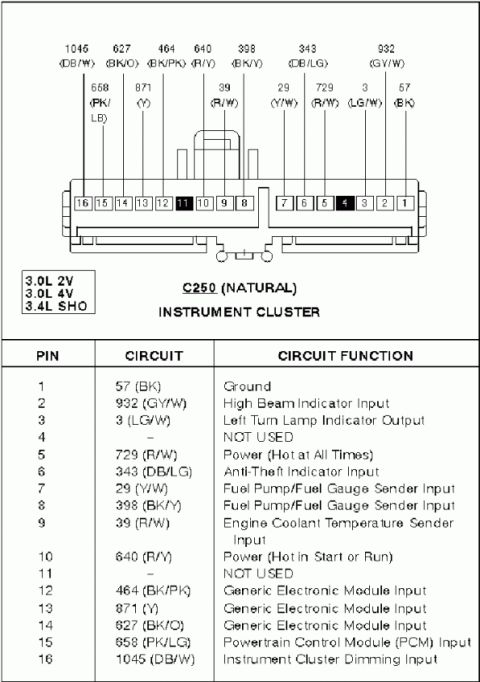

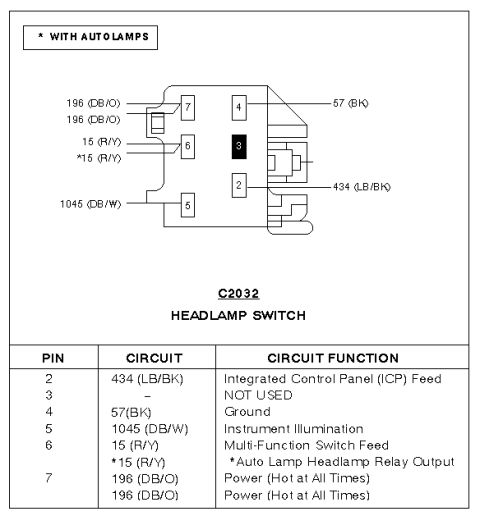

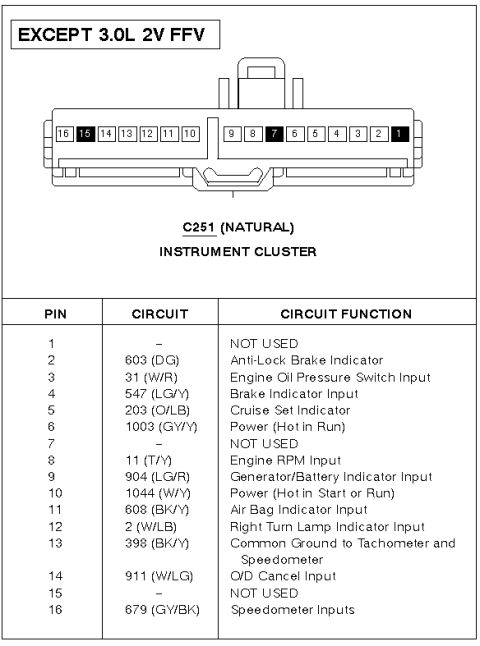

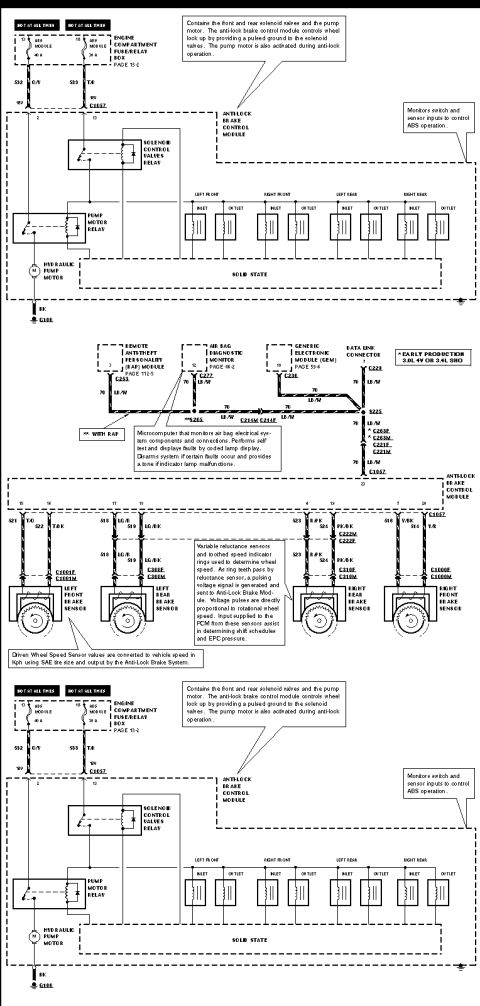

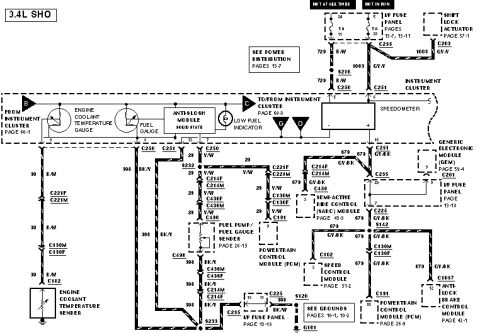

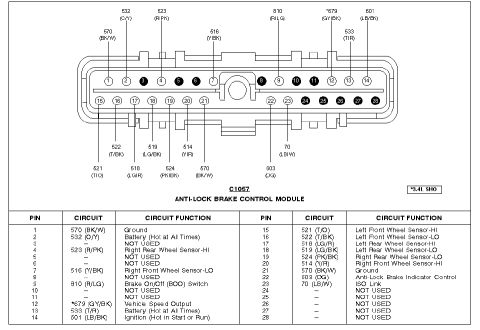

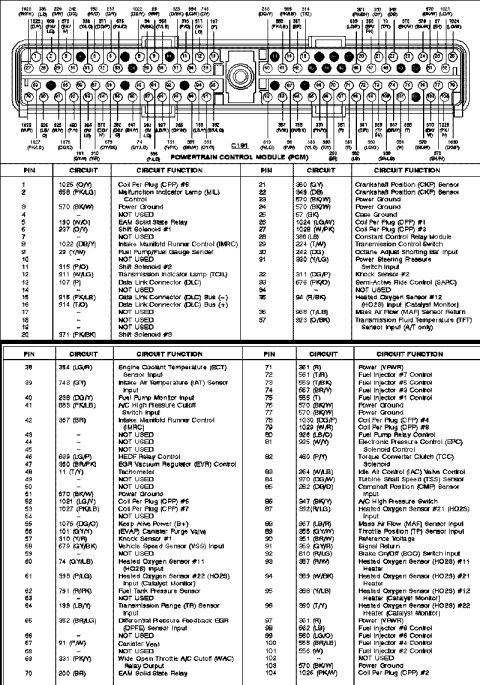

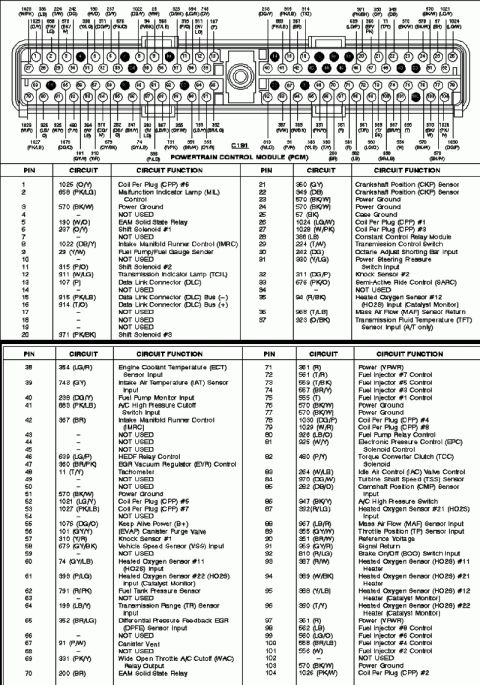

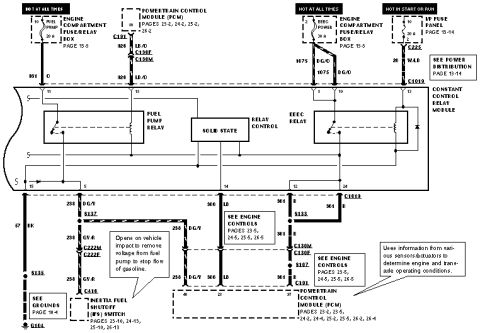

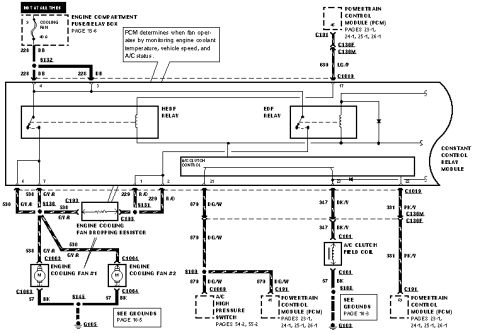

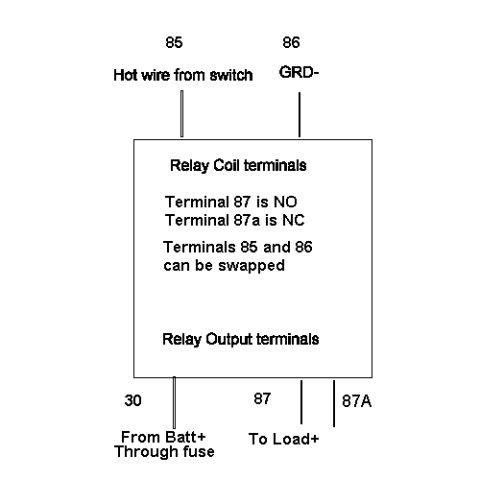

1997 Ford Taurus - SARC connector C451 1997 Ford Taurus - Wiring diagram in five panels tracing power feeds, audio unit circuits and left and right speaker wiring with connector and splice callouts. 1997 Ford Taurus - Connector pinout chart for the Remote Climate Control (RCC) module C2044, mapping each pin number to its circuit and function. 1997 Ford Taurus - Wiring diagram showing ambient, in-car and sunload temperature sensors connected to the PCM and data link connector with circuit codes. 1997 Ford Taurus - Connector pinout chart for headlamp switch C2032 listing each pin's circuit number and function such as ground, illumination and feeds. 1997 Ford Taurus - Electrical wiring diagram spanning several panels showing relays, motor windings and integrated control modules with circuit references. 1997 Ford Taurus - Standard ISO relay terminal map: 85/86 are the swappable coil terminals, 30 is battery in through a fuse, 87 is normally-open output to loa… 1997 Ford Taurus - Spedomenter wire diagram '98 SHO 1997 Ford Taurus - C251 back of IP, speedo inputs. 1997 Ford Taurus - Anti Lock Module connector pinout 1997 Ford Taurus - Powertrain Control Module (PCM) connector pinout listing each pin number, wire circuit color, and circuit function (ECT, IAT, MAF, injector… 1997 Ford Taurus - Pinout of PCM connector C191 showing all 104 pins with circuit numbers, wire colors and functions for injectors, coil-on-plug, HO2S and sen… 1997 Ford Taurus - Wiring diagram of the Semi-Active Ride Control (SARC) module C450 connector showing pin numbers, color-coded circuits and functions. 1997 Ford Taurus - Wiring diagram showing engine cooling fan circuits, HEDF and EDF relays, A/C clutch field coil and color-coded wires. 1997 Ford Taurus - Wiring diagram showing fuel pump relay, EEC relay, inertia fuel shutoff switch and color-coded circuits to the PCM. 1997 Ford Taurus - This is a wiring diagram for the C168 (Neutral) AX4S/AX4N Transaxle. It shows a connector with 10 pins and lists the circuit and circuit fu… 1997 Ford Taurus - Wiring diagram of the instrument cluster connector C250 showing pin numbers, color-coded circuits and functions. 1997 Ford Taurus - Engine controls wiring diagram for a 3.0L 4V showing PCM connections to coolant, shaft speed and injector sensors with color-coded circuits. 1997 Ford Taurus - Service manual connector view of PCM connector C175 with a pin-by-pin circuit and function table. 1997 Ford Taurus - Connector Views page 150-11 from the 2002 Taurus/Sable manual listing pins 41-104 with circuit numbers, wire colors and functions such as i… 1997 Ford Taurus - Connector Views page 150-12 from the 2002 Taurus/Sable manual showing C176, C177 crash sensor, C180 camshaft sensor and C181/C182 injector…
