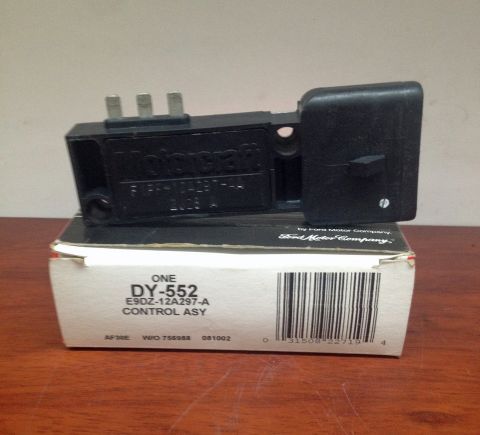

TFI ICM

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

16 photos
← Back to this vehicle

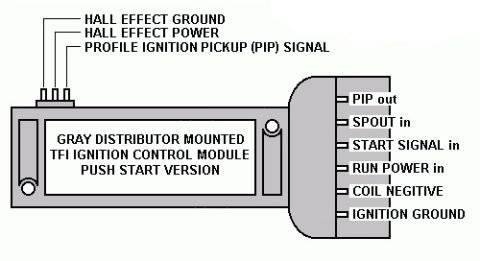

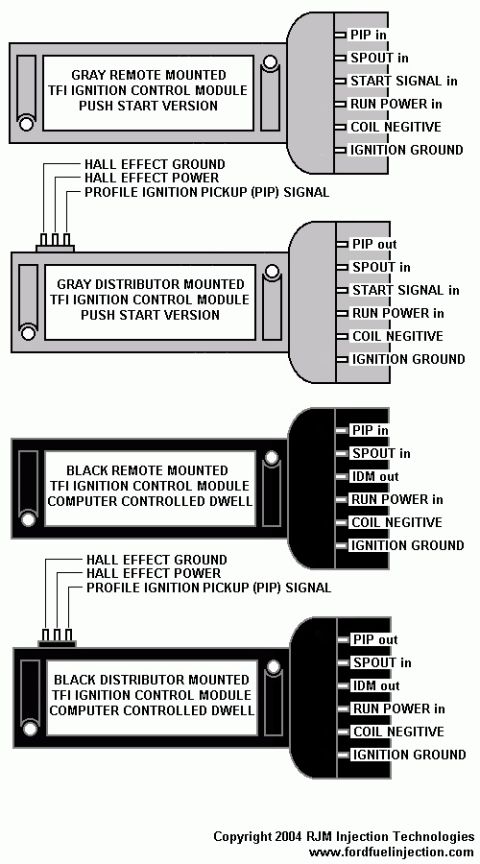

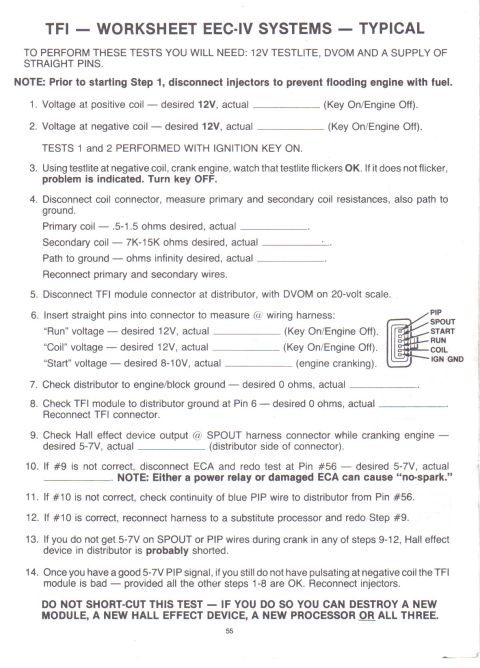

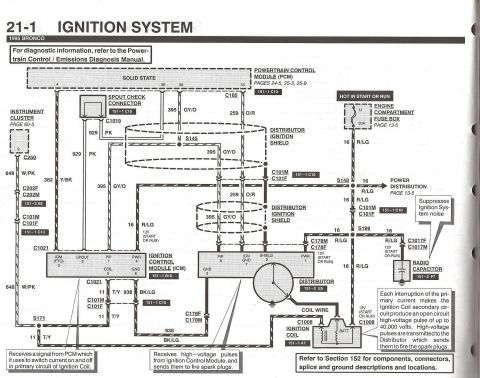

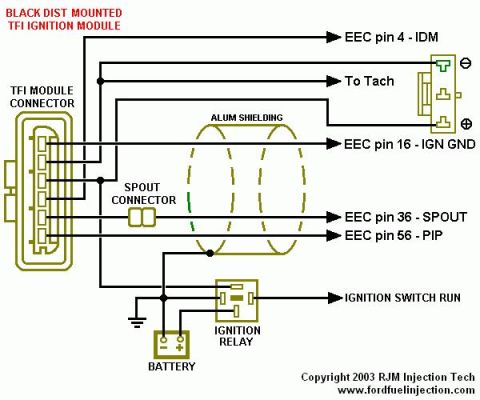

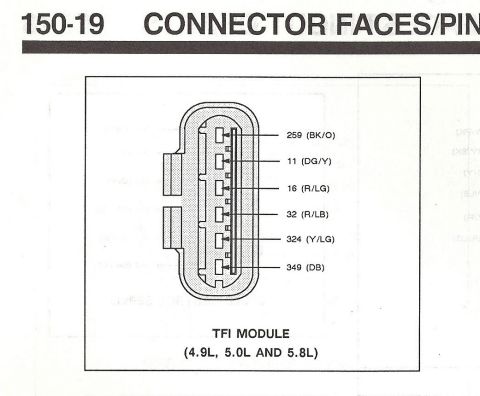

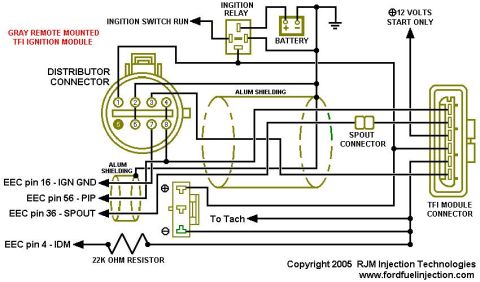

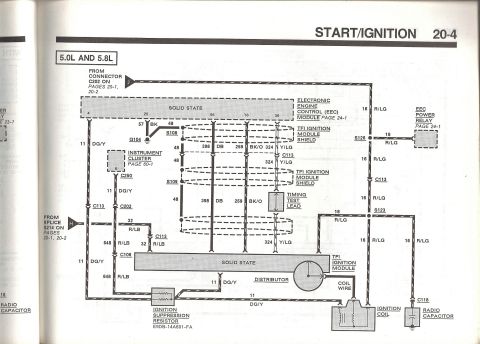

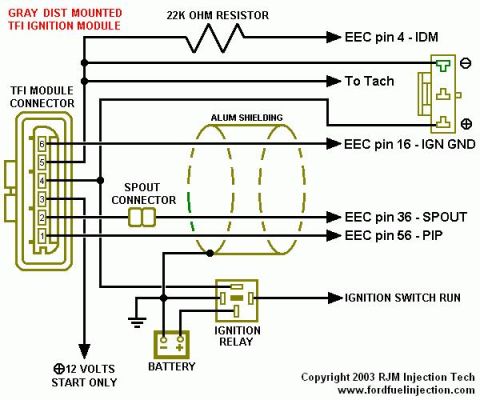

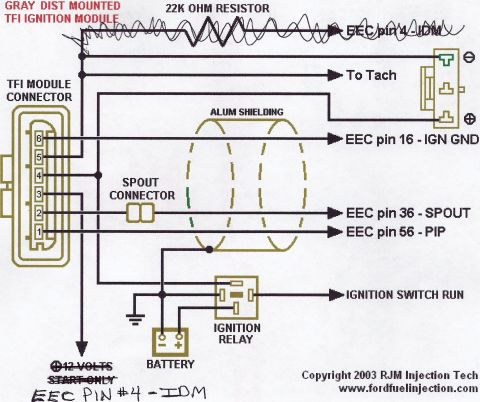

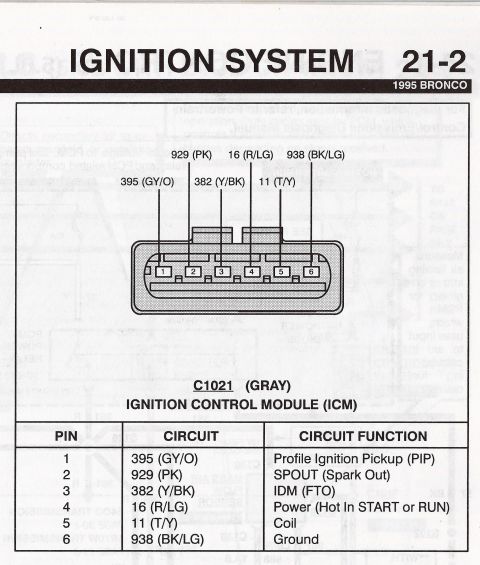

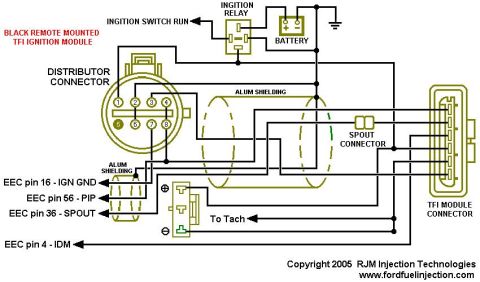

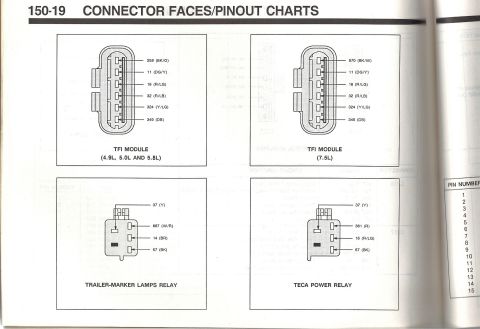

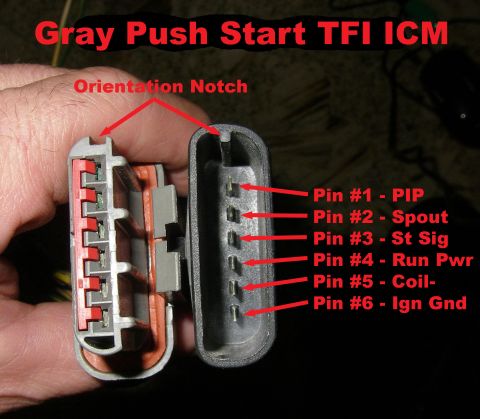

1990 Ford Bronco - TFI/EEC-IV ignition test worksheet listing coil voltages and resistance targets (primary 0.5-1.5 ohm, secondary 7K-15K ohm, START 8-10V) an… 1990 Ford Bronco - TFI ICM Upgrade - Push Start to CCD 1990 Ford Bronco - RJM Injection TFI ignition control module connector pinout diagrams for gray and black remote and distributor-mounted versions. 1990 Ford Bronco - Connector face/pinout chart from a Ford EVTM (page 150-19): TFI ignition module pins for 4.9L/5.0L/5.8L and 7.5L engines, plus trailer-mark… 1990 Ford Bronco - Ignition system diagram (21-2, 1995 Bronco) showing ICM connector C1021 pinout with circuit colors and a pin function table. 1990 Ford Bronco - Connector faces/pinout (150-19) showing the TFI module connector terminals with circuit numbers and wire color codes for 4.9L/5.0L/5.8L. 1990 Ford Bronco - Ford 5.0L/5.8L Start/Ignition schematic (page 20-4): EEC control, TFI ignition module and shield, timing test lead, ignition coil and radio… 1990 Ford Bronco - Ignition system schematic showing PCM, SPOUT check connector, Ignition Control Module (ICM), distributor, ignition coil and radio capacitor… 1990 Ford Bronco - RJM wiring diagram for a gray distributor-mounted TFI ignition module: 6-pin connector, SPOUT connector, 22K-ohm IDM resistor and EEC pins… 1990 Ford Bronco - RJM wiring diagram for a gray remote-mounted TFI ignition module: distributor connector, SPOUT connector, 22K-ohm resistor and EEC pins 4/1… 1990 Ford Bronco - Wiring diagram of a distributor-mounted TFI ignition module showing EEC pins, SPOUT connector, ignition relay, and battery. 1990 Ford Bronco - Wiring diagram of a remote-mounted TFI ignition module showing distributor connector, EEC pins, and shielding. 1990 Ford Bronco - A hand holds two mating halves of a black 6-pin TFI ICM connector, showing the female pins with red locking wedge and the socket side with… 1990 Ford Bronco - Close-up of a gray Ford TFI ignition control module (ICM) electrical connector held in hand, showing the two mating halves with a labeled 6… 1990 Ford Bronco - Wiring/pinout diagram of a gray distributor-mounted TFI ignition module showing PIP, SPOUT, coil and ignition-ground terminals. 1990 Ford Bronco - A Motorcraft ignition control module, part number DY-552, is shown on its original Ford Motor Company packaging.
