What are the wire colors on the TFI module connector for 4.9L, 5.0L and 5.8L engines?

Circuit 259 (BK/O - black/orange), 11 (DG/Y - dark green/yellow), 16 (R/LG - red/light green), 32 (R/LB - red/light blue), 324 (Y/LG - yellow/light green), and 349 (DB - dark blue).

How does the 7.5L TFI module connector differ from the smaller engines?

On the 7.5L, the top pin is circuit 570 (BK/W - black/white) instead of circuit 259 (BK/O). The remaining pins are the same: 11 (DG/Y), 16 (R/LG), 32 (R/LB), 324 (Y/LG), and 349 (DB).

What circuits connect to the Trailer-Marker Lamps Relay?

Circuits 37 (Y - yellow), 667 (W/R - white/red), 14 (BR - brown), and 57 (BK - black).

What circuits connect to the TECA Power Relay?

Circuits 37 (Y - yellow), 361 (R - red), 16 (R/LG - red/light green), and 57 (BK - black).

Which engines does this connector pinout page cover?

It shows TFI module connector faces for the 4.9L, 5.0L, 5.8L engines (one diagram) and the 7.5L engine (a separate diagram).

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/836735

Ford TFI Module Connector Pinout - 4.9L 5.0L 5.8L 7.5L Wiring & Relay Diagrams

Ford TFI module, trailer-marker lamp relay and TECA power relay connector pinout charts

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1989 Ford Bronco E4OD Transmission Wiring Diagram - EEC Module Pins (Pg 44)

Ford Duraspark II & TFI Ignition System Wiring Diagrams - EEC-IV PIP/SPOUT

1992-96 Ford Sealed-Bowl TFI Distributor Diagram & Ignition Wiring Schematics

Ford TFI Module Connector Pinout - 4.9L 5.0L 5.8L 7.5L Wiring & Relay Diagrams

Ford ECT Engine Coolant Temperature Sensor Connector Pinout Diagram

Ford ISC-BPA Idle Air Bypass Solenoid Connector Pinout - ISC (-) & VPWR (+)

Ford EEC-IV SD to MAF Computer Pin-Out Chart: Pins 49-60 (1990-1995)

Ford EEC-IV SD to MAF Computer Pin-Out Chart: Pins 22-48 (1990 Bronco)

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

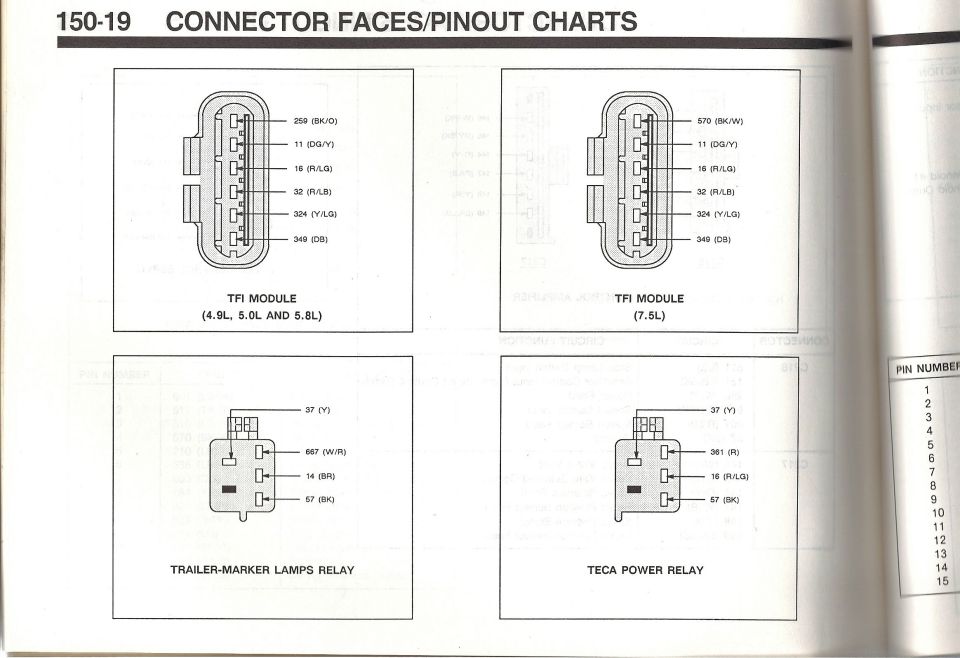

Connector face/pinout chart from a Ford EVTM (page 150-19): TFI ignition module pins for 4.9L/5.0L/5.8L and 7.5L engines, plus trailer-marker lamp and TECA power relay pinouts with wire-circuit colors.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption November 2010 · Photo 249 of 1787

This is page 150-19, 'Connector Faces/Pinout Charts,' from a Ford wiring reference manual, showing four connector face diagrams with circuit numbers and wire color codes. Two diagrams cover the TFI (Thick Film Ignition) module connector: one for 4.9L, 5.0L and 5.8L engines (circuits 259 BK/O, 11 DG/Y, 16 R/LG, 32 R/LB, 324 Y/LG, 349 DB) and one for the 7.5L engine, which is identical except that circuit 570 (BK/W) replaces circuit 259 (BK/O) at the top pin. Two additional diagrams show relay connector faces: the Trailer-Marker Lamps Relay (circuits 37 Y, 667 W/R, 14 BR, 57 BK) and the TECA Power Relay (circuits 37 Y, 361 R, 16 R/LG, 57 BK). A partial 'PIN NUMBER' column (1-15) from an adjacent page is visible at the right edge. A reader can use this page to identify TFI module connector wiring by circuit number and wire color for diagnosing ignition problems, and to identify the wiring at the trailer-marker lamps and TECA power relays. The page itself is undated; it was uploaded for a 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the wire colors on the TFI module connector for 4.9L, 5.0L and 5.8L engines?: Circuit 259 (BK/O - black/orange), 11 (DG/Y - dark green/yellow), 16 (R/LG - red/light green), 32 (R/LB - red/light blue), 324 (Y/LG - yellow/light green), and 349 (DB - dark blue).
How does the 7.5L TFI module connector differ from the smaller engines?: On the 7.5L, the top pin is circuit 570 (BK/W - black/white) instead of circuit 259 (BK/O). The remaining pins are the same: 11 (DG/Y), 16 (R/LG), 32 (R/LB), 324 (Y/LG), and 349 (DB).
What circuits connect to the Trailer-Marker Lamps Relay?: Circuits 37 (Y - yellow), 667 (W/R - white/red), 14 (BR - brown), and 57 (BK - black).
What circuits connect to the TECA Power Relay?: Circuits 37 (Y - yellow), 361 (R - red), 16 (R/LG - red/light green), and 57 (BK - black).
Which engines does this connector pinout page cover?: It shows TFI module connector faces for the 4.9L, 5.0L, 5.8L engines (one diagram) and the 7.5L engine (a separate diagram).
