Ford Gray Remote Mount TFI Ignition Module Wiring Diagram - EEC-IV Schematic

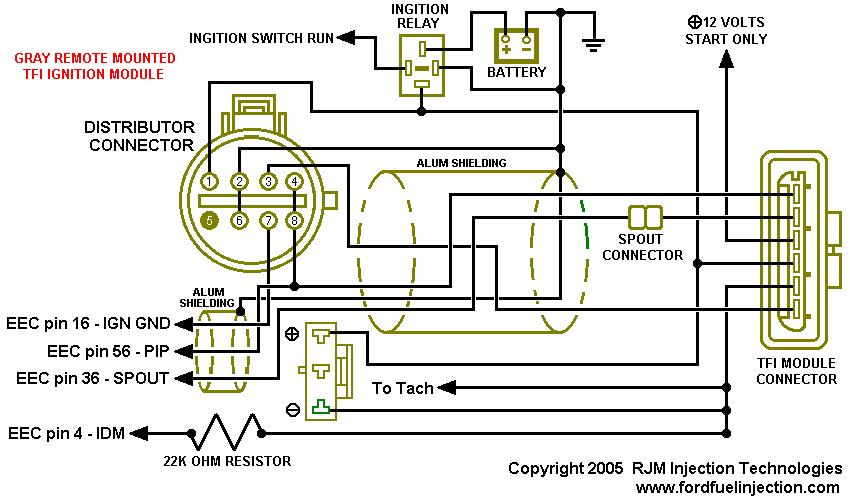

Gray remote-mounted TFI ignition module wiring diagram with distributor and EEC pinouts
Gray remote-mounted TFI ignition module wiring diagram with distributor and EEC pinoutsOriginal file
Gray remote-mounted TFI ignition module wiring diagram with distributor and EEC pinouts

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1995 Ford Bronco Anti-Theft System Wiring Diagram (Page 112-1) Ford Black Remote-Mount TFI Ignition Module Wiring Schematic - EEC Pinout Ford TFI Ignition Module Wiring Schematic - Black Distributor Mounted (EEC-IV) Ford Gray Remote Mount TFI Ignition Module Wiring Diagram - EEC-IV Schematic Ford TFI Ignition Module Wiring Schematic - Gray Distributor Mount (EEC Pins) 1995 Ford Bronco Ignition System Wiring Diagram - TFI, ICM & PCM Schematic Ford 5.0L & 5.8L TFI Start/Ignition Wiring Diagram - EEC Module & Coil (20-4) 1986-95 Ford V8 Truck Speed Density EEC-IV Wiring Diagram - VSS & Sensor Pins Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

RJM wiring diagram for a gray remote-mounted TFI ignition module: distributor connector, SPOUT connector, 22K-ohm resistor and EEC pins 4/16/36/56, fed by ignition relay and battery.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 906 of 1787

This document is a wiring schematic for the gray remote-mounted TFI (Thick Film Ignition) ignition module used in Ford EEC-IV ignition systems, published by RJM Injection Technologies (www.fordfuelinjection.com, copyright 2005). The diagram shows the eight-pin distributor connector (pins 1-8) and how each circuit routes through aluminum-shielded harness sections to the TFI module connector, the SPOUT connector, the ignition coil, the ignition relay, the battery, and the ignition switch RUN circuit. A separate feed provides 12 volts during START only. Four EEC (engine computer) pin assignments are identified: EEC pin 16 (IGN GND), EEC pin 56 (PIP), EEC pin 36 (SPOUT), and EEC pin 4 (IDM), with the IDM circuit passing through a 22K ohm resistor. A tach signal tap point ("To Tach") is shown at the coil negative side. A reader can learn how the remote-mounted gray TFI module is wired between the distributor, ignition coil, and EEC computer, which EEC pins carry the PIP, SPOUT, IDM, and ignition ground signals, where the SPOUT connector sits in the circuit, and where aluminum shielding is used on the harness. It is useful for diagnosing no-spark conditions, tach hookups, and TFI/EEC signal troubleshooting.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Which EEC pins connect to the gray remote-mount TFI ignition system?
Per the diagram: EEC pin 16 is IGN GND, EEC pin 56 is PIP, EEC pin 36 is SPOUT, and EEC pin 4 is IDM.
What resistor is used in the IDM circuit to EEC pin 4?
A 22K ohm resistor is shown in the IDM circuit leading to EEC pin 4.
Where does the tach signal come from in this TFI schematic?
The 'To Tach' line connects at the ignition coil's negative (⊖) terminal circuit.
When does the TFI module receive its 12-volt feed shown at the top right?
The diagram labels that feed as '12 VOLTS START ONLY,' meaning it is powered only during cranking.
How many pins does the distributor connector have in this diagram?
The distributor connector is shown with eight pins, numbered 1-4 on the top row and 5-8 on the bottom row.
