Ford 5.0L & 5.8L TFI Start/Ignition Wiring Diagram - EEC Module & Coil (20-4)

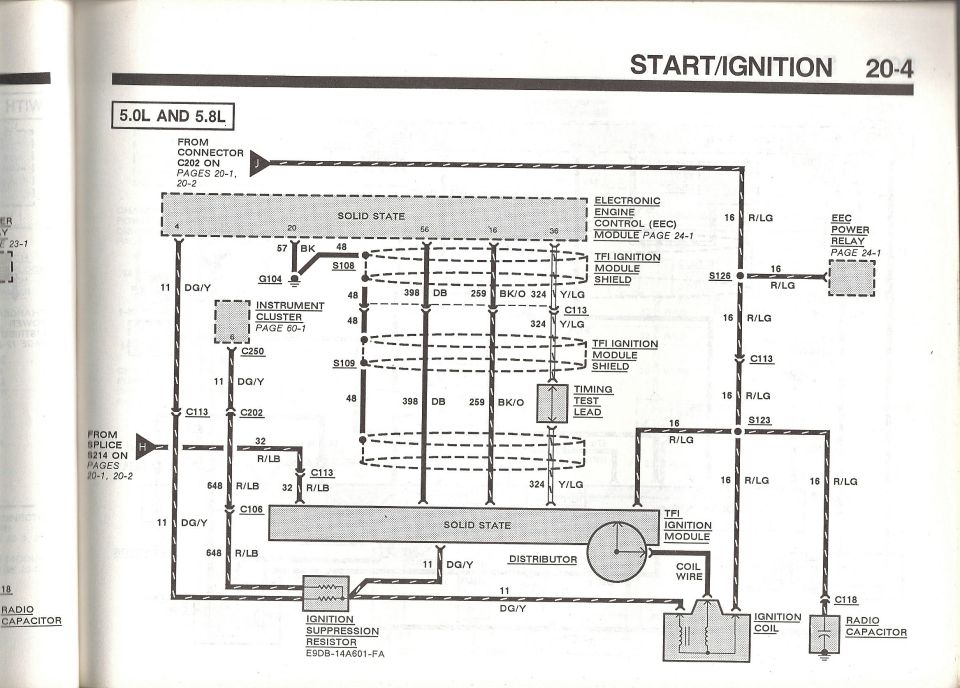

Ford 5.0L/5.8L start/ignition wiring diagram, TFI module, EEC power relay, page 20-4
Ford 5.0L/5.8L start/ignition wiring diagram, TFI module, EEC power relay, page 20-4Original file
Ford 5.0L/5.8L start/ignition wiring diagram, TFI module, EEC power relay, page 20-4

Reference · 1987-1991 BroncoAll 175 wiring diagrams

Ford Gray Remote Mount TFI Ignition Module Wiring Diagram - EEC-IV Schematic Ford TFI Ignition Module Wiring Schematic - Gray Distributor Mount (EEC Pins) 1995 Ford Bronco Ignition System Wiring Diagram - TFI, ICM & PCM Schematic Ford 5.0L & 5.8L TFI Start/Ignition Wiring Diagram - EEC Module & Coil (20-4) 1986-95 Ford V8 Truck Speed Density EEC-IV Wiring Diagram - VSS & Sensor Pins Ford DuraSpark II Ignition Wiring Diagram - Module, Coil & Resistor Schematic 1990 Ford Bronco Anti-Lock Brakes (RABS) Wiring Diagram - EVTM Page 42-2 1989-95 Ford MAF Sensor Connector Pinout Diagram - Wire Colors & Pins A-D Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Ford 5.0L/5.8L Start/Ignition schematic (page 20-4): EEC control, TFI ignition module and shield, timing test lead, ignition coil and radio suppression circuits with wire codes (R/LG, BK/O, DG/Y).

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 903 of 1787

This is a scanned page (20-4, "START/IGNITION") from a Ford factory wiring diagram manual covering the start/ignition circuit for 5.0L and 5.8L engines with the TFI (Thick Film Ignition) system. The diagram shows the Electronic Engine Control (EEC) module (referenced to page 24-1) connected through shielded wiring to the TFI ignition module mounted on the distributor. Key circuits include circuit 48 (with TFI ignition module shields at splices S108 and S109), circuit 398 (DB), circuit 259 (BK/O), circuit 324 (Y/LG) which runs through the timing test lead, circuit 11 (DG/Y) feeding the ignition coil through an ignition suppression resistor (part number E9DB-14A601-FA), and circuit 16 (R/LG) from the EEC power relay (page 24-1) through splices S126 and S123 to the TFI module and radio capacitor. Connectors shown include C113, C202, C250, C106, and C118, with feeds from connector C202 and splice S214 on pages 20-1/20-2 and a link to the instrument cluster (page 60-1). A reader can trace each ignition circuit number, wire color, connector, splice, and ground (G104) for diagnosing no-start or ignition faults on these V8 engines.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire color and circuit number feeds the ignition coil in this diagram?
Circuit 11, dark green/yellow (DG/Y), runs through the ignition suppression resistor to the ignition coil.
What is the part number of the ignition suppression resistor?
E9DB-14A601-FA.
Which circuit supplies power from the EEC power relay to the TFI ignition module?
Circuit 16, red/light green (R/LG), from the EEC power relay (page 24-1) through splices S126 and S123 and connector C113.
Which circuit is used for the timing test lead?
Circuit 324, yellow/light green (Y/LG), which passes through connector C113 and the timing test lead to the TFI ignition module.
Which engines does this start/ignition diagram cover?
The diagram is labeled for 5.0L and 5.8L engines.
