'96 Body-Chassis

From 1996 Ford Bronco, documented by Mikey350.

19 photos
← Back to this vehicle

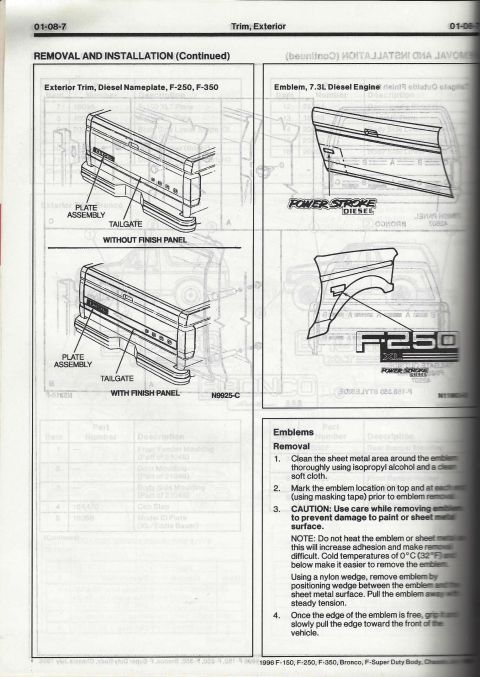

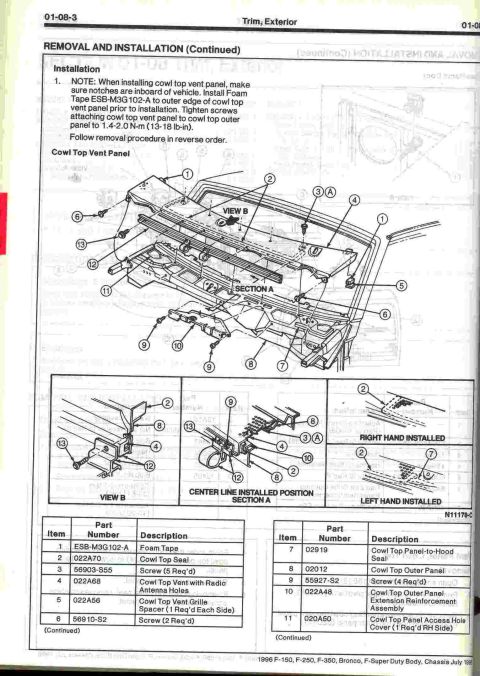

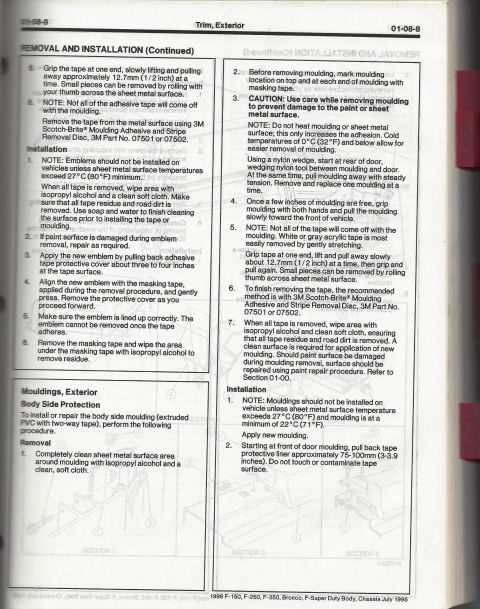

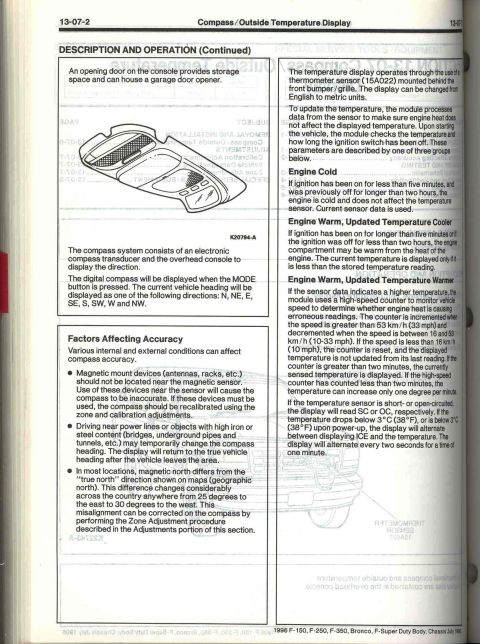

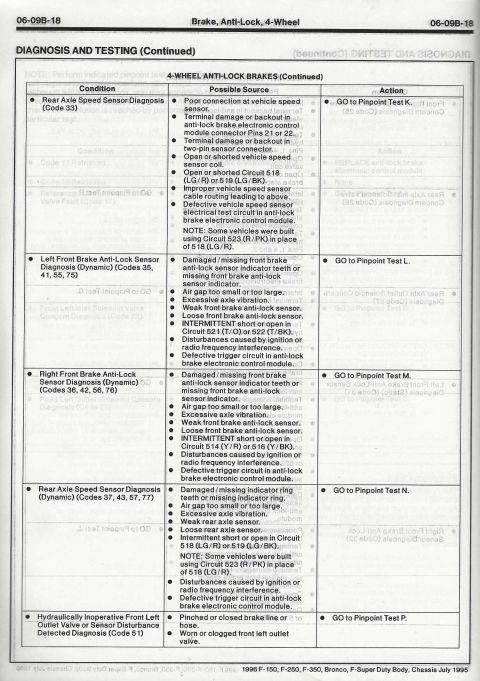

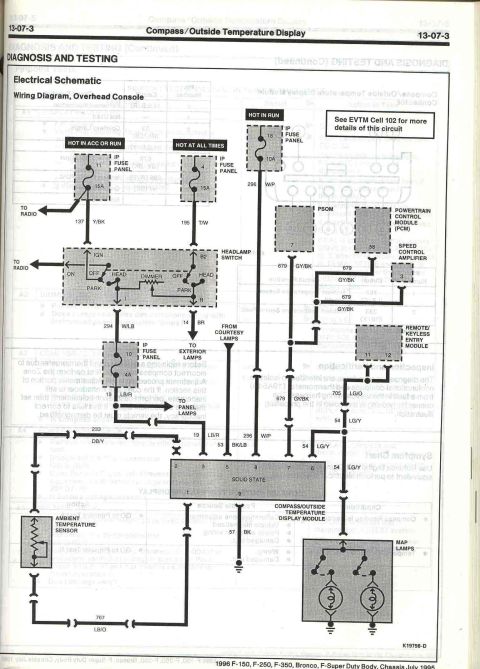

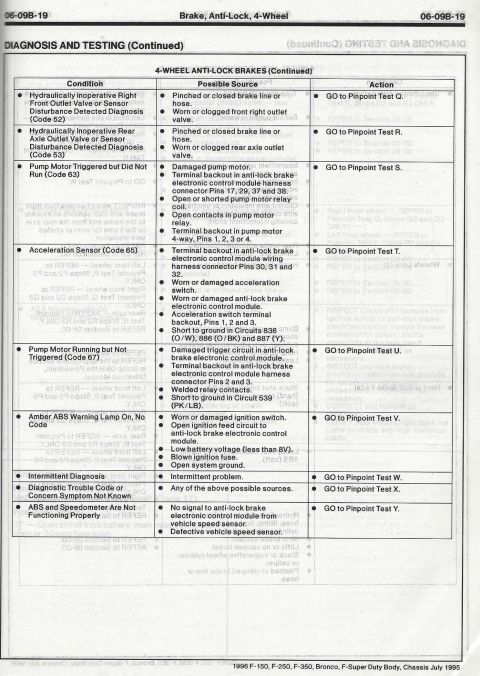

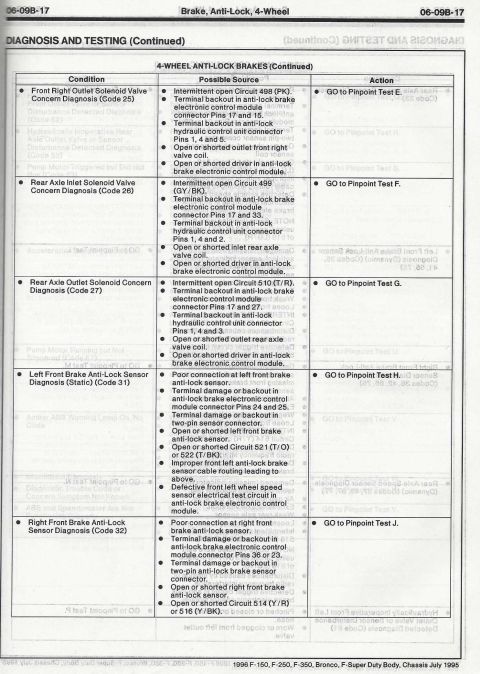

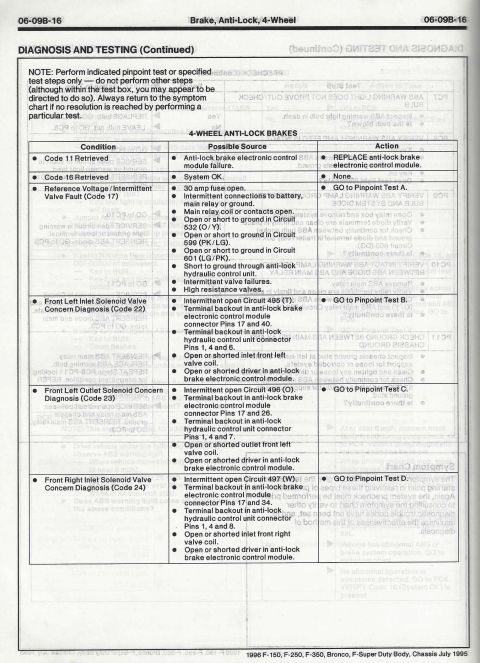

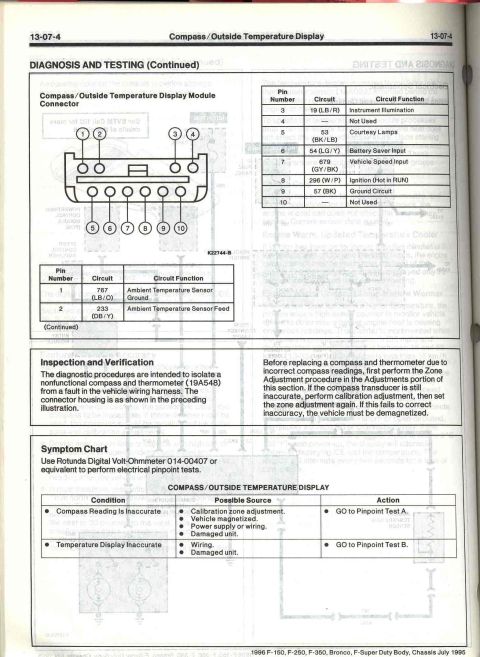

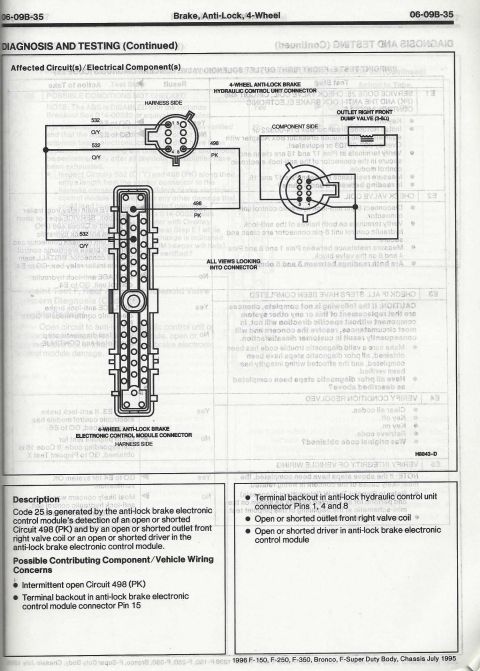

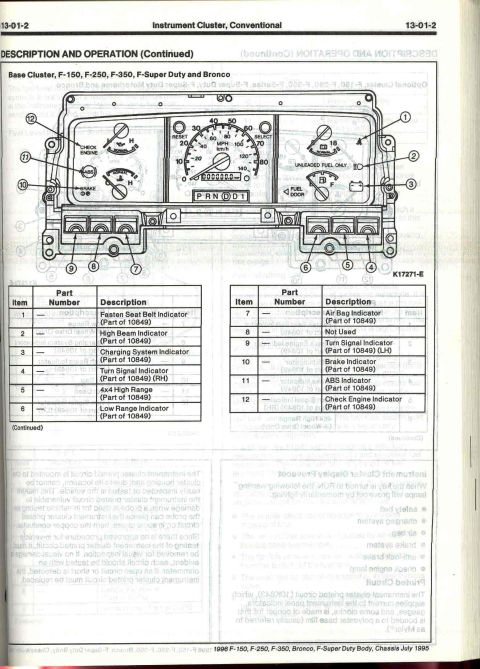

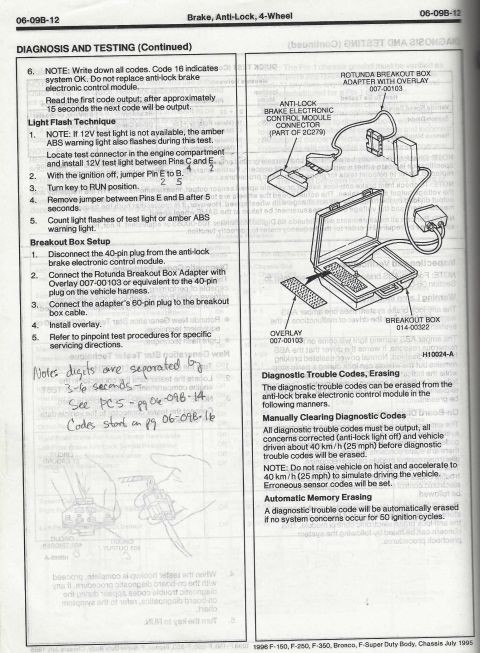

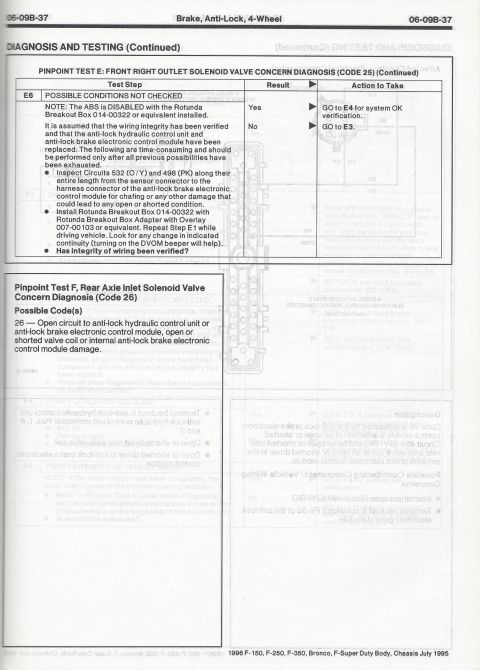

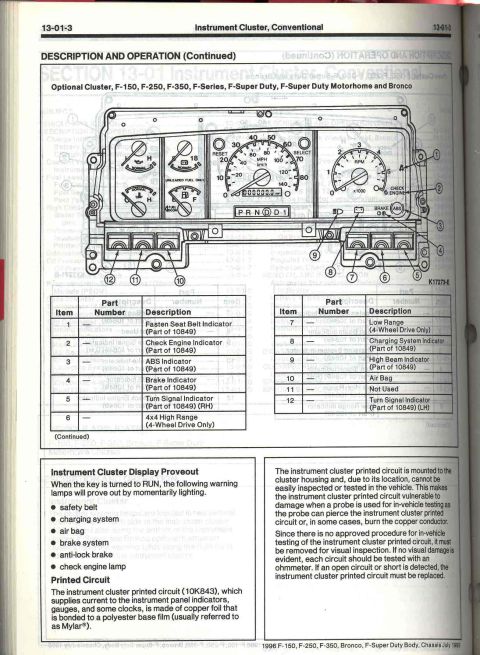

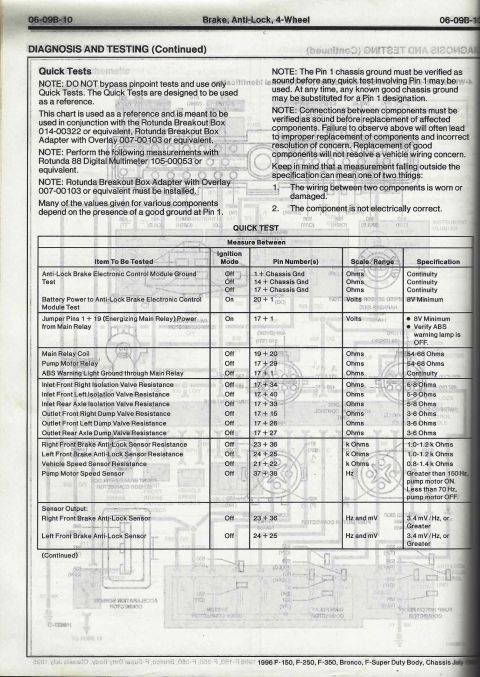

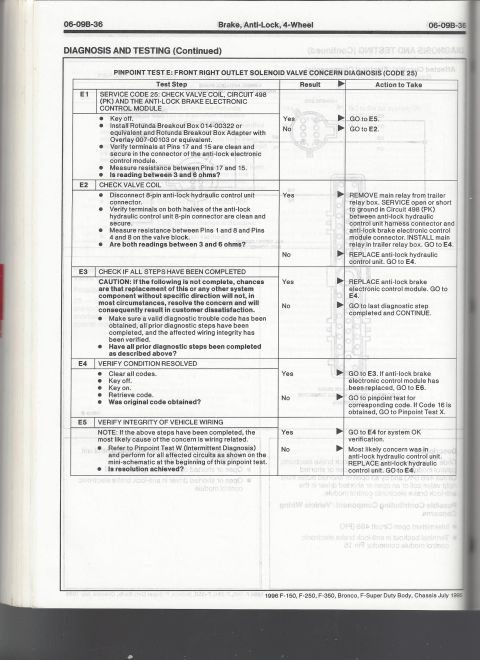

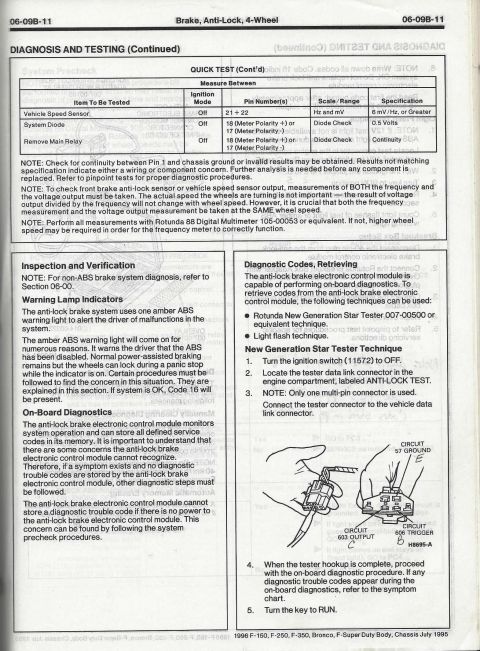

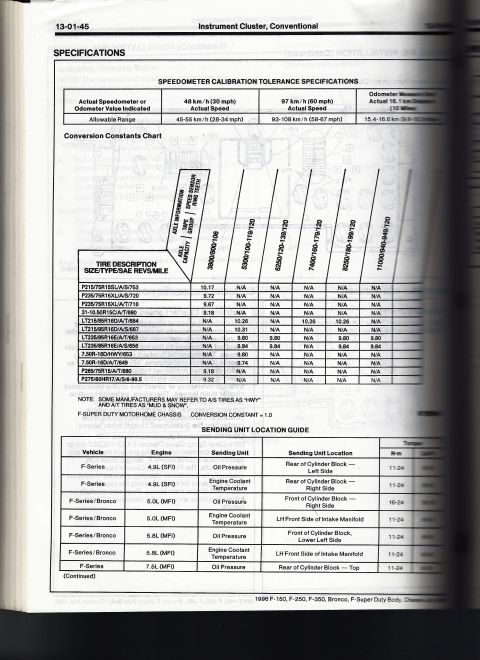

1996 Ford Bronco - Removal and installation procedure for the cowl top vent panel with exploded views, install notes and a part-number table. 1996 Ford Bronco - Ford service manual page covering exterior trim and emblem removal and installation for F-250/F-350, with labeled tailgate nameplate and Po… 1996 Ford Bronco - Step-by-step exterior emblem and body-side moulding removal and installation procedure with 3M adhesive and temperature cautions. 1996 Ford Bronco - Scanned Ford service manual page with an ABS quick-test table listing items, ignition mode, pin numbers, scale/range, and specifications. 1996 Ford Bronco - Scanned Ford service manual page covering ABS quick-test measurements, on-board diagnostics, and Star Tester hookup with circuit illustrati… 1996 Ford Bronco - Scanned Ford service manual page describing ABS code retrieval and breakout-box test setup, with adapter and connector illustrations and ha… 1996 Ford Bronco - Scanned Ford service manual page with 4-wheel ABS diagnostic trouble codes, reference-voltage faults, and pinpoint-test actions. 1996 Ford Bronco - Scanned Ford service manual page listing 4-wheel ABS solenoid-valve and sensor diagnostic codes with possible sources and pinpoint tests. 1996 Ford Bronco - Scanned Ford service manual page with 4-wheel ABS speed-sensor diagnostic codes and pinpoint-test actions in a condition/source/action tabl… 1996 Ford Bronco - Scanned Ford service manual page listing 4-wheel ABS diagnostic trouble codes with condition, possible source, and pinpoint-test action col… 1996 Ford Bronco - 4WABS diagnosis page showing hydraulic control unit and electronic control module connector pinouts plus Code 25 description: open/shorted… 1996 Ford Bronco - 4WABS Pinpoint Test E (Code 25) front right outlet solenoid valve diagnosis steps; checks valve coil resistance on circuit 498 PK, expectin… 1996 Ford Bronco - Continuation of 4WABS Pinpoint Test E (Code 25) plus start of Test F (Code 26) covering wiring-integrity inspection of circuits 532 ON and… 1996 Ford Bronco - Service manual description-and-operation page for the base instrument cluster with labeled diagram and part-number table. 1996 Ford Bronco - Service manual description-and-operation page for the optional instrument cluster with labeled diagram and part-number table. 1996 Ford Bronco - Scanned service manual page 13-01-45 titled 'Instrument Cluster, Conventional' with Specifications including Speedometer Calibration Tolera… 1996 Ford Bronco - Scanned body/chassis manual page 13-07-2, "Compass / Outside Temperature Display, Description and Operation," with a line drawing of the ov… 1996 Ford Bronco - Electrical schematic for the overhead-console compass/outside-temperature display, showing the ambient temperature sensor, map lamps, headl… 1996 Ford Bronco - Ford service page (13-07-4) for the compass/outside-temperature display: connector pin-to-circuit tables (ignition pin 9, VSS pin 7, ambien…
