What does ABS Code 26 mean on a 1996 Ford Bronco or F-Series truck?

Per this manual page, Code 26 (Rear Axle Inlet Solenoid Valve concern) indicates an open circuit to the anti-lock hydraulic control unit or anti-lock brake electronic control module, an open or shorted valve coil, or internal anti-lock brake electronic control module damage.

Which circuits should be inspected in Pinpoint Test E step E6 for ABS Code 25?

Inspect Circuits 532 (O/Y) and 498 (PK) along their entire length from the sensor connector to the harness connector of the anti-lock brake electronic control module for chafing or damage that could cause an open or shorted condition.

What special tools are called out in step E6?

Rotunda Breakout Box 014-00322 (or equivalent) and Rotunda Breakout Box Adapter with Overlay 007-00103 (or equivalent). Note: the ABS is DISABLED while the breakout box is installed.

What do you do if wiring integrity is verified in step E6?

If Yes, GO to E4 for system OK verification. If No, GO to E3.

Which vehicles does this service manual page cover?

The footer states it applies to the 1996 F-150, F-250, F-350, Bronco, and F-Super Duty (Body, Chassis manual, July 1995).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1110349

1996 Ford Bronco/F-150 ABS Code 25 & 26 Pinpoint Tests E6/F - Solenoid Valve

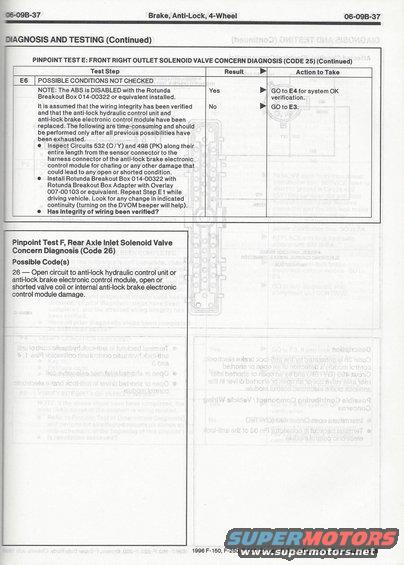

1996 Ford 4-Wheel Anti-Lock Brake Pinpoint Test E/F continued, Code 25 wiring integrity verification, page 06-09B-37

‹ ›

Reference · 1992-1996 BroncoAll 142 service procedures

1994 Ford Bronco/F-150/Econoline Anti-Theft Alarm Diagnosis Test M (13-11-22)

1994 Ford Bronco/F-150 Anti-Theft Alarm Diagnosis - Tests K & L (13-11-21)

1996 Ford Bronco/F-150 Exterior Trim & Body Side Moulding Removal - Pg 01-08-8

1996 Ford Bronco/F-150 ABS Code 25 & 26 Pinpoint Tests E6/F - Solenoid Valve

1996 Ford Bronco/F-150 ABS Code 25 Pinpoint Test E - Front Right Solenoid Valve

E4OD service page 07-01A-86 with TFT sensor resistance chart, solenoid and EPC tests

1994 Ford Bronco EGR System Functional Diagnosis - Test Steps EGR1-EGR3 (10A-13)

Code reader manual pages 33-34, Retrieving Codes KOER Self Test for EEC-IV systems, with highlighted steps

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Parasitic Battery Draw Test Procedure - Checking for Unwanted Draw (Wilson)

Ford Vacuum System Troubleshooting Steps & Tests - Supply, Leak, Component (EVTM)

1996 Ford Bronco Vacuum System Troubleshooting - Supply, Leak & Component Tests

142service procedures1992-1996 Ford Bronco More reference

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

Wiring diagram

Exploded parts

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Manual page

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Continuation of 4WABS Pinpoint Test E (Code 25) plus start of Test F (Code 26) covering wiring-integrity inspection of circuits 532 ON and 498 PK from sensor to ABS module connector.

Part of 1992-1996 Ford Bronco Service Procedures

AI caption June 2017 · Photo 312 of 409

This page (06-09B-37) from the 1996 Ford F-150, F-250, F-350, Bronco, and F-Super Duty Body/Chassis service manual (dated July 1995) covers 4-wheel Anti-Lock Brake System (ABS) diagnosis and testing. It concludes Pinpoint Test E for the Front Right Outlet Solenoid Valve concern (ABS Code 25) with step E6, 'Possible Conditions Not Checked.' Step E6 assumes wiring integrity has been verified and the anti-lock hydraulic control unit and electronic control module have been replaced; it directs the technician to inspect Circuits 532 (O/Y) and 498 (PK) for chafing or damage that could cause opens or shorts, and to install Rotunda Breakout Box 014-00322 with Overlay Adapter 007-00103 to repeat Step E1 while driving, watching for continuity changes. A 'Yes' answer routes to E4 for system OK verification; 'No' routes back to E3. The page also introduces Pinpoint Test F for the Rear Axle Inlet Solenoid Valve concern (Code 26), defining Code 26 as an open circuit to the anti-lock hydraulic control unit or electronic control module, an open or shorted valve coil, or internal module damage. The lower portion of the scan shows only bleed-through from the reverse page. The document notes the ABS is disabled while the breakout box is installed.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does ABS Code 26 mean on a 1996 Ford Bronco or F-Series truck?: Per this manual page, Code 26 (Rear Axle Inlet Solenoid Valve concern) indicates an open circuit to the anti-lock hydraulic control unit or anti-lock brake electronic control module, an open or shorted valve coil, or internal anti-lock brake electronic control module damage.
Which circuits should be inspected in Pinpoint Test E step E6 for ABS Code 25?: Inspect Circuits 532 (O/Y) and 498 (PK) along their entire length from the sensor connector to the harness connector of the anti-lock brake electronic control module for chafing or damage that could cause an open or shorted condition.
What special tools are called out in step E6?: Rotunda Breakout Box 014-00322 (or equivalent) and Rotunda Breakout Box Adapter with Overlay 007-00103 (or equivalent). Note: the ABS is DISABLED while the breakout box is installed.
What do you do if wiring integrity is verified in step E6?: If Yes, GO to E4 for system OK verification. If No, GO to E3.
Which vehicles does this service manual page cover?: The footer states it applies to the 1996 F-150, F-250, F-350, Bronco, and F-Super Duty (Body, Chassis manual, July 1995).
