1994 Ford Bronco Cargo Table Blueprint - Sub Box Platform Dimensions (66.9 in)

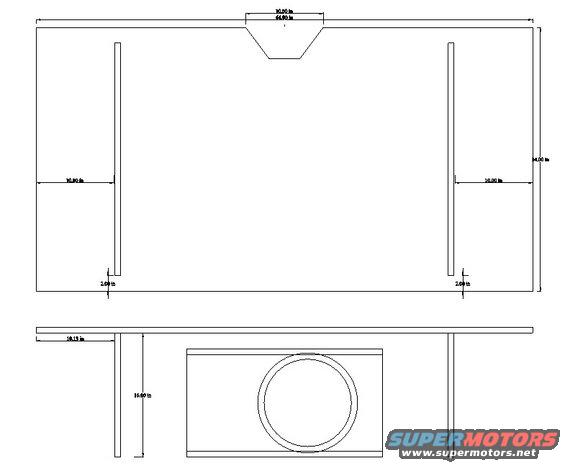

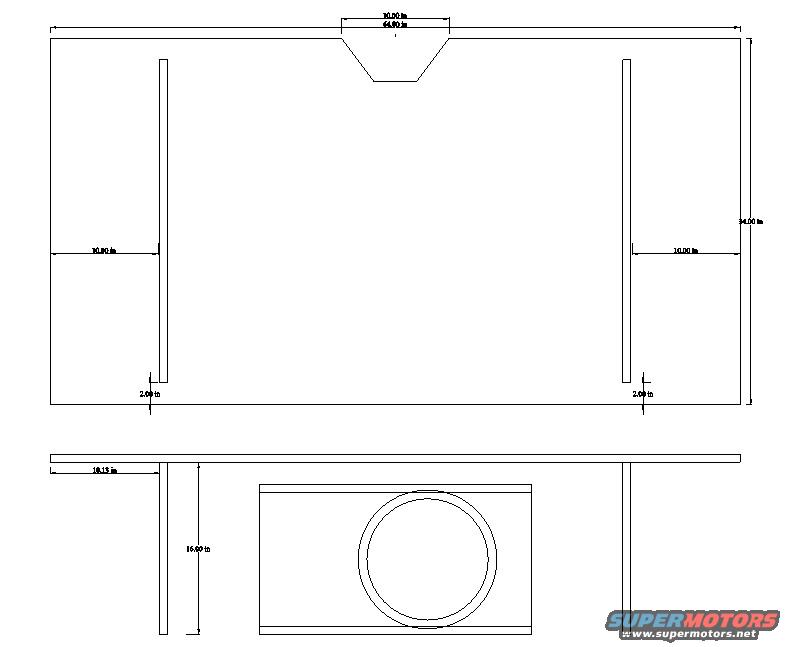

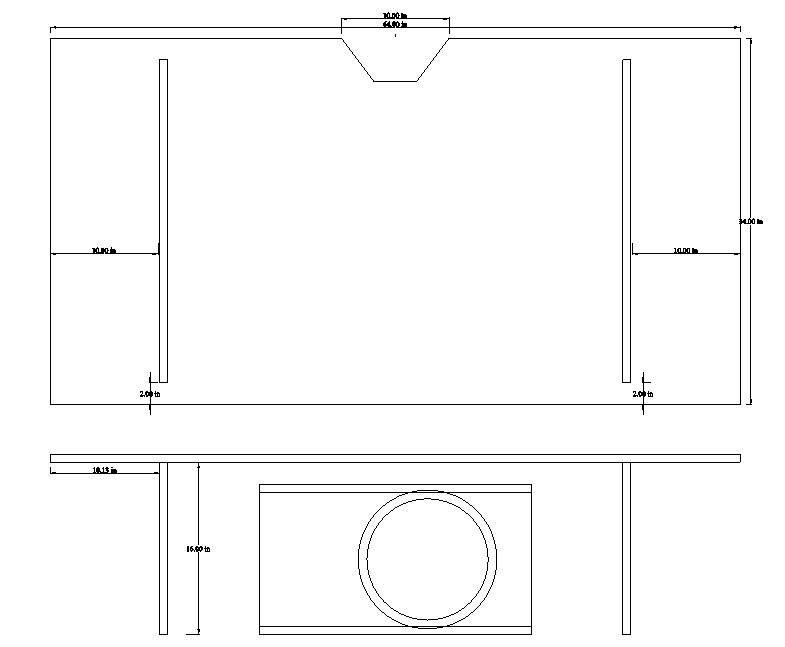

This document is a CAD-style blueprint (two orthographic views) of a custom truck table or cargo-area platform, uploaded as part of a car audio installation build set for a 1994 Ford Bronco. The top (plan) view shows a rectangular panel approximately 66.90 inches wide and 34.00 inches deep, with a 30.00-inch-wide trapezoidal notch cut into the top center edge. Two 2.00-inch-thick support rails run front-to-back, each located 10.00 inches in from the left and right edges. The lower (elevation) view shows the platform with 16.00-inch-tall legs, the left leg positioned 10.13 inches from the panel's left edge. Centered beneath the tabletop in the elevation view is a rectangular enclosure containing a large circular cutout with a double-ring outline, consistent with a ported or single-driver subwoofer box shown in the companion drawings of the same album. From this document a builder can learn the overall panel dimensions, notch width, rail thicknesses and placements, and leg height needed to reproduce the platform so it clears the subwoofer enclosure below. No part numbers, materials, dates, or vehicle-specific text appear on the drawing itself.
