What components are shown in this tailgate window diagram?

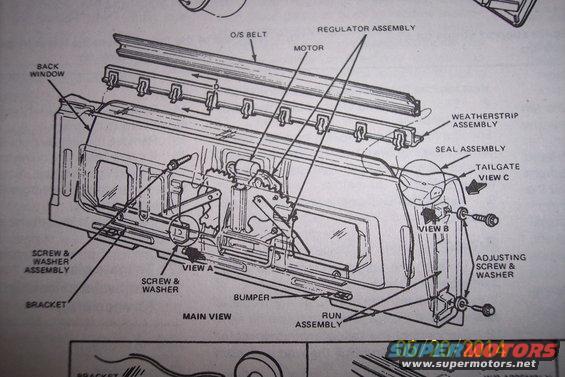

The exploded view labels the back window, regulator assembly, motor, O/S belt, weatherstrip assembly, seal assembly, run assembly, bracket, bumper, screw & washer assemblies, and adjusting screw & washer on the tailgate.

Where is the window motor located in the tailgate?

The diagram shows the motor mounted centrally inside the tailgate, attached to the regulator assembly that raises and lowers the back window.

How is the glass run assembly adjusted?

The diagram shows an adjusting screw & washer at the end of the tailgate that secures and positions the run assembly.

Are there detail views for specific hardware locations?

Yes — View A shows a screw & washer/bracket location on the tailgate face, View B shows a seal/hardware point at the tailgate end, and View C shows the seal assembly area at the top corner of the tailgate.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “CUSTOM - SOLD!!!”/ Photo supermotors.net/registry/media/1023579

Ford Bronco Tailgate Window Regulator & Motor Exploded Diagram - Rear Glass

Exploded view of tailgate window regulator, motor and seal assemblies with labeled parts

‹ ›

Exploded parts diagram of a tailgate power-window assembly showing regulator, motor, run channels and seal components.

AI caption May 2014 · Photo 172 of 488

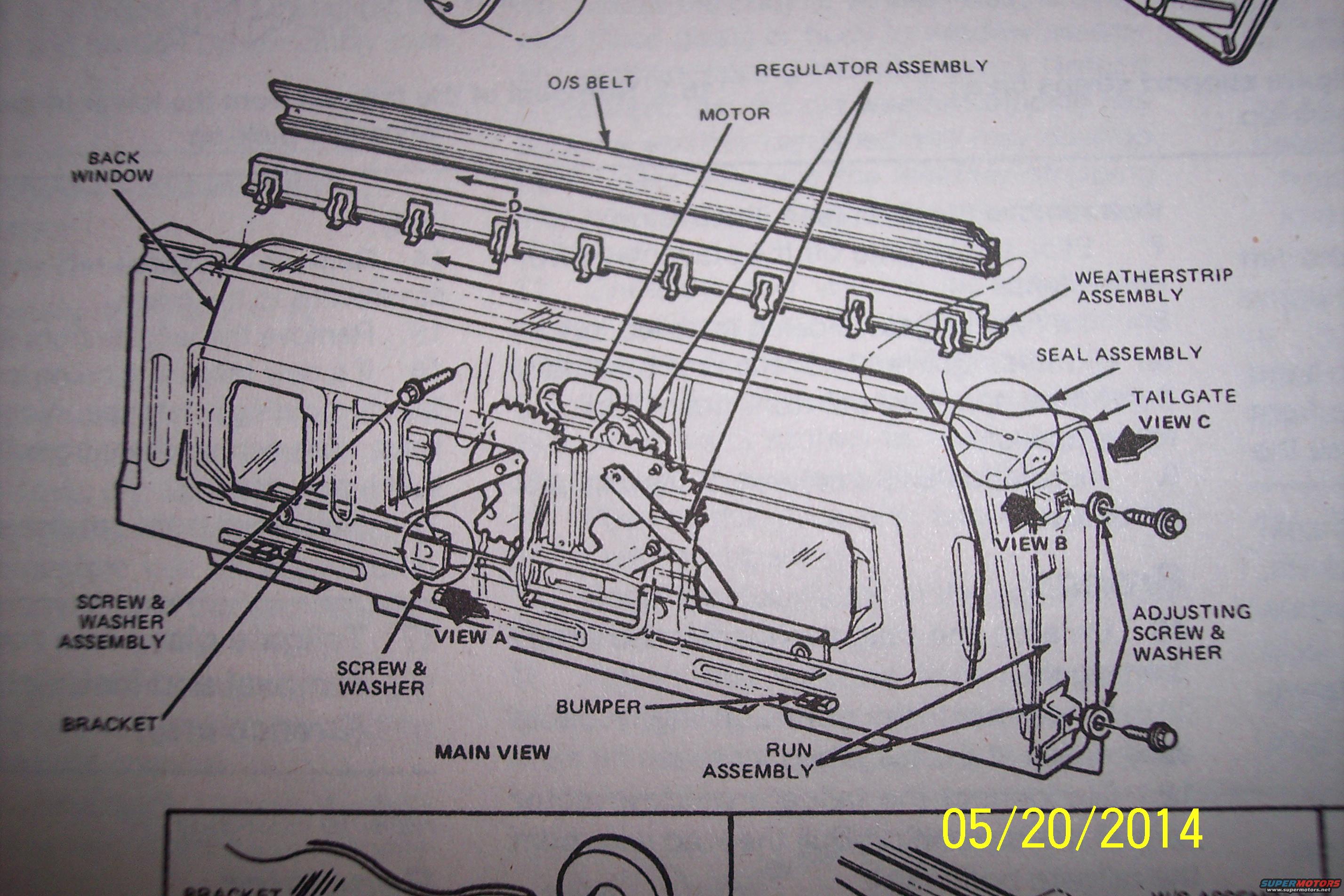

This document is a scanned exploded-view illustration from a service manual showing the tailgate power (electric) rear window system of a Ford Bronco-style tailgate. The main view depicts the tailgate inner structure with the back window glass, the window regulator assembly, the electric motor, and the outside (O/S) belt weatherstrip with its retaining clips. Callouts identify the weatherstrip assembly along the top of the tailgate, the seal assembly and glass run assembly at the tailgate ends, mounting hardware (screw & washer assemblies, bracket, bumper), and the adjusting screw & washer used to position the run assembly. Three detail views are referenced (View A, View B, View C) showing hardware and seal locations at specific points on the tailgate. A reader can learn the names and relative positions of all major components involved in removing, installing, or adjusting the tailgate window glass, regulator, and motor, which is useful when diagnosing a rear window that binds, leaks, or fails to move. The scan is a photograph of a printed manual page; no part numbers, torque specs, or year/model text are visible on this page. A yellow camera date stamp of 05/20/2014 appears in the corner.
