What engines does this component location view cover?

The caption states it applies to the 5.0L/5.8L engine, and it is page 2 of 2 for that engine.

Where is the fuel pump relay shown on this diagram?

The fuel pump relay is called out on the right side of the engine compartment, near connectors C118 and C105 and above the oil pressure sender, roughly at grid row C, columns 7-8.

Which fuse links are identified in this illustration?

Fuse links A, F, G, L, M, N, P, and W are located together near the starter relay area on the left side of the engine compartment (grid area D, column 3).

Which electrical connectors are located on this page?

Connectors C100, C105, C106, C110, C118, C129, C133, C151, C152, and C154 are called out, along with grounds G100 and G104.

Where is the daytime running lamps (DRL) module located?

The DRL module is shown at the front of the engine compartment near the LH headlamp, called out at the bottom right of the diagram.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1038907

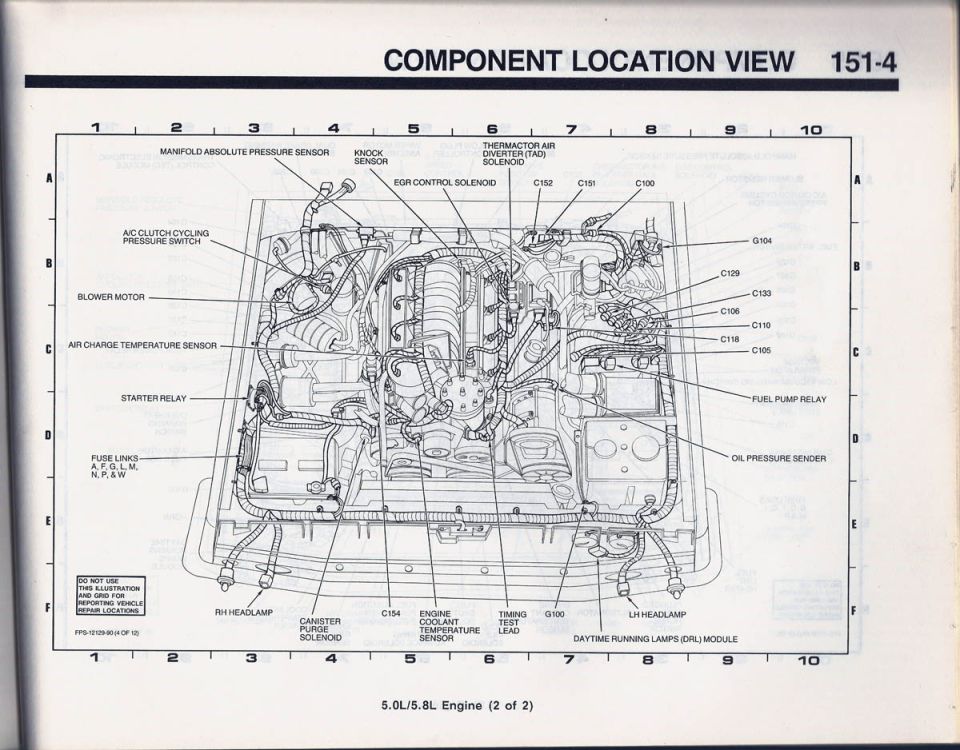

1990 Ford Bronco 5.0L/5.8L Engine Component Location Diagram (151-4)

Ford 5.0L/5.8L engine component location view 151-4, sensors and relays callouts

‹ ›

Component location view (sheet 2 of 2) for Ford 5.0L/5.8L engine identifying MAP, knock, air charge temp sensors, EGR/thermactor solenoids, fuel pump/starter relays, oil pressure sender and DRL module.

AI caption October 2014 · Photo 1610 of 1799

This is page 151-4 of a Ford factory electrical/vacuum troubleshooting manual (EVTM) showing a Component Location View of the engine compartment for 5.0L and 5.8L engines, labeled '(2 of 2)'. The illustration is an overhead line drawing of the engine bay with a letter/number locator grid (columns 1-10, rows A-F). Callouts identify the physical locations of key engine-management and electrical components, including the Manifold Absolute Pressure sensor, knock sensor, Thermactor Air Diverter (TAD) solenoid, EGR control solenoid, A/C clutch cycling pressure switch, blower motor, air charge temperature sensor, starter relay, fuel pump relay, oil pressure sender, canister purge solenoid, engine coolant temperature sensor, timing test lead, daytime running lamps (DRL) module, and both headlamps. Electrical connectors C100, C105, C106, C110, C118, C129, C133, C151, C152, and C154, grounds G100 and G104, and fuse links A, F, G, L, M, N, P, and W are also located. A boxed note warns not to use the illustration and grid for reporting vehicle repair locations. The document number FPS-12129-90 (4 of 12) indicates a 1990 publication. Readers can use this page to find where these connectors, sensors, relays, and grounds are physically located in the engine compartment.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What engines does this component location view cover?: The caption states it applies to the 5.0L/5.8L engine, and it is page 2 of 2 for that engine.
Where is the fuel pump relay shown on this diagram?: The fuel pump relay is called out on the right side of the engine compartment, near connectors C118 and C105 and above the oil pressure sender, roughly at grid row C, columns 7-8.
Which fuse links are identified in this illustration?: Fuse links A, F, G, L, M, N, P, and W are located together near the starter relay area on the left side of the engine compartment (grid area D, column 3).
Which electrical connectors are located on this page?: Connectors C100, C105, C106, C110, C118, C129, C133, C151, C152, and C154 are called out, along with grounds G100 and G104.
Where is the daytime running lamps (DRL) module located?: The DRL module is shown at the front of the engine compartment near the LH headlamp, called out at the bottom right of the diagram.
