1979 Ford Bronco/F100-F350 Charging System Diagram - Connector & Splice Locations

Ford manual charging-system diagram plus component location/connector-description table (alternator, voltage regulator, starter relay, splices) and the alternator-regulator jumper-wire test setup.

AI caption · Photo 7 of 48

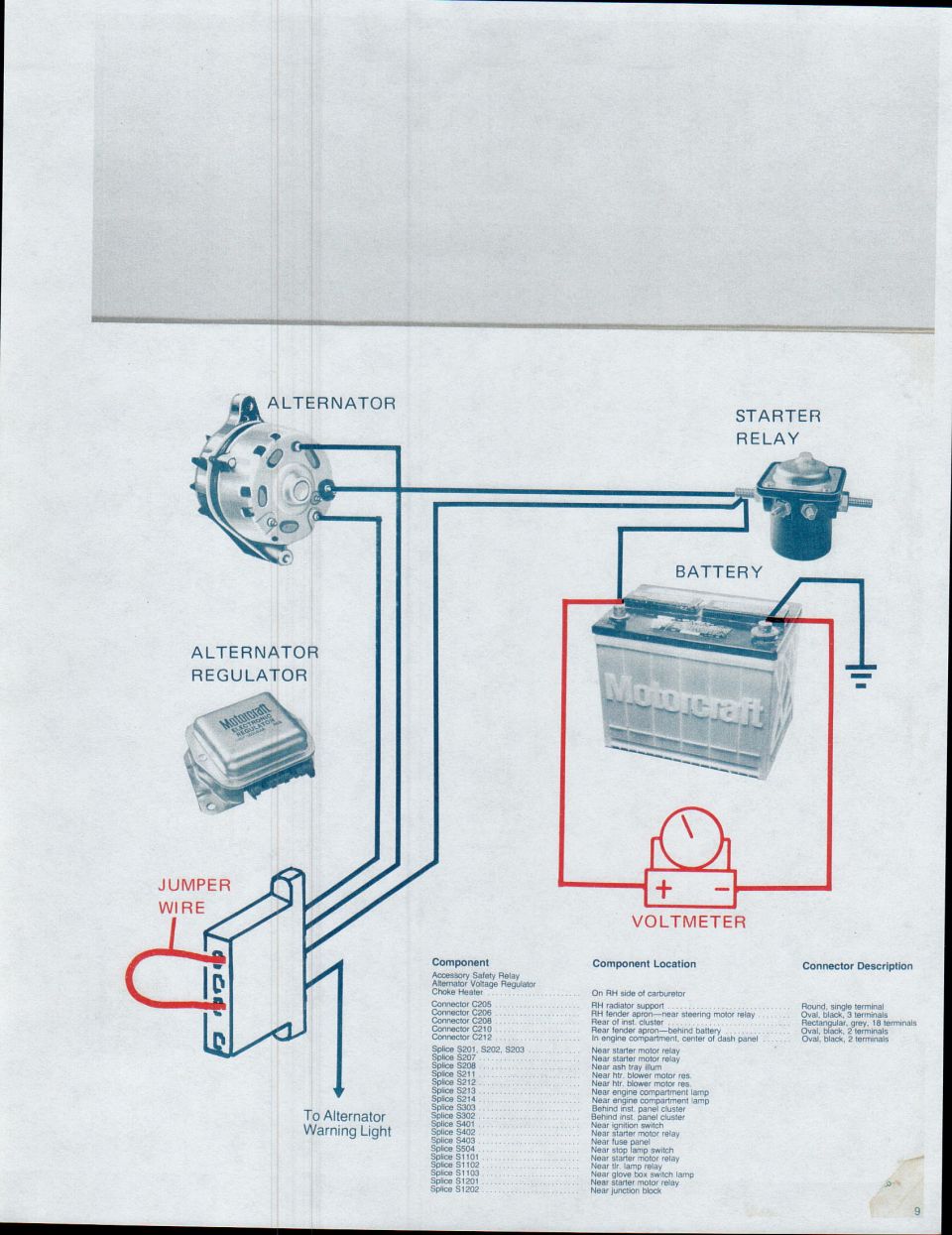

This page (page 9 of a multi-page Ford service reference set) illustrates the charging/starting system components of a late-1970s Ford truck. A pictorial diagram shows the alternator, alternator regulator (a Motorcraft electronic regulator), starter relay, and Motorcraft battery, with dark blue lines representing factory wiring and red lines showing test connections: a jumper wire installed at a connector (with one lead going 'To Alternator Warning Light') and a voltmeter connected across the battery terminals for a charging system test. Below the illustration is a component location legend listing the Accessory Safety Relay, Alternator Voltage Regulator, and Choke Heater (on the RH side of the carburetor), plus connectors C205, C206, C208, C210, and C212 with their physical locations (RH radiator support, RH fender apron near the steering motor relay, rear of instrument cluster, rear fender apron behind the battery, engine compartment center of dash panel) and connector descriptions (terminal counts, shapes, and colors). It also lists numerous wiring splices (S201–S1202) with their locations, such as near the starter motor relay, fuse panel, ignition switch, blower motor resistor, and junction block. Readers can use this page to locate charging-circuit connectors and splices and to see the voltmeter/jumper-wire test hookup.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is Connector C208 located and what does it look like?
Connector C208 is located at the rear of the instrument cluster and is described as rectangular, grey, with 18 terminals.
Where is the choke heater located?
The choke heater is located on the RH (right-hand) side of the carburetor.
How is the voltmeter connected in this charging system test diagram?
The voltmeter is shown connected in red across the battery's positive and negative terminals, with a jumper wire installed at a connector whose circuit runs 'To Alternator Warning Light'.
Where is Splice S403 located?
Splice S403 is located near the fuse panel.
Where is Connector C210 and how many terminals does it have?
Connector C210 is on the rear fender apron, behind the battery, and is an oval, black connector with 2 terminals.

Comments

No comments yet.

More from this build

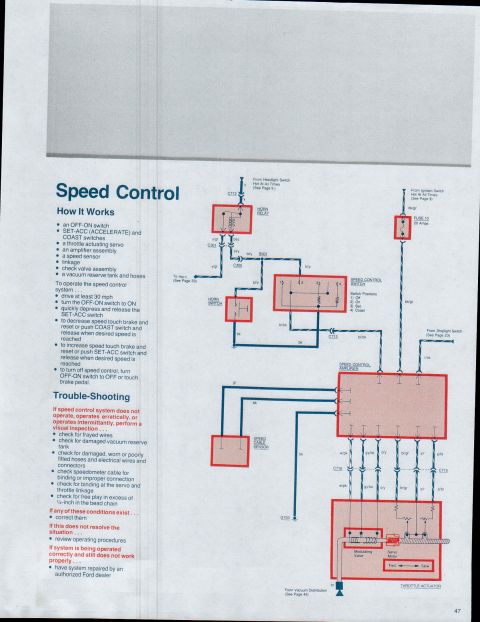

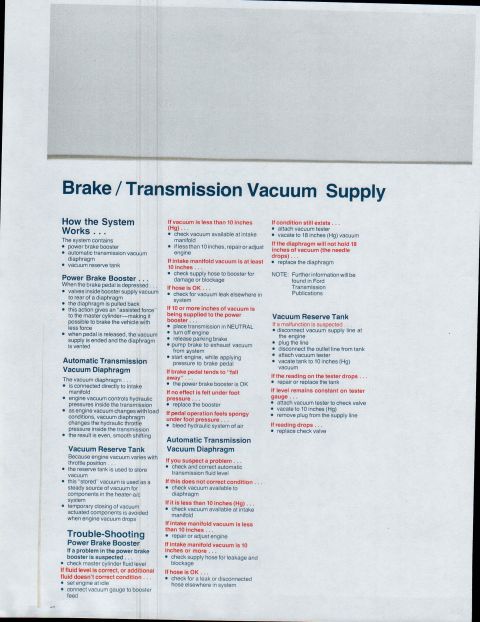

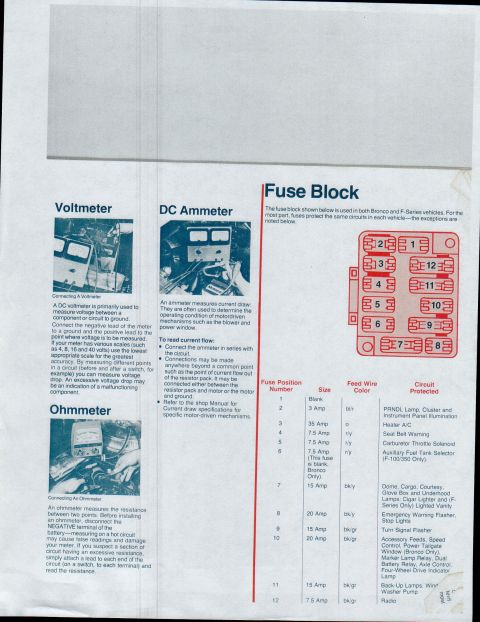

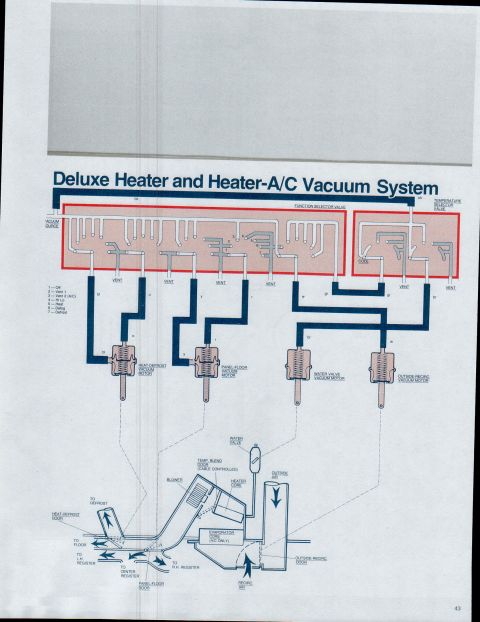

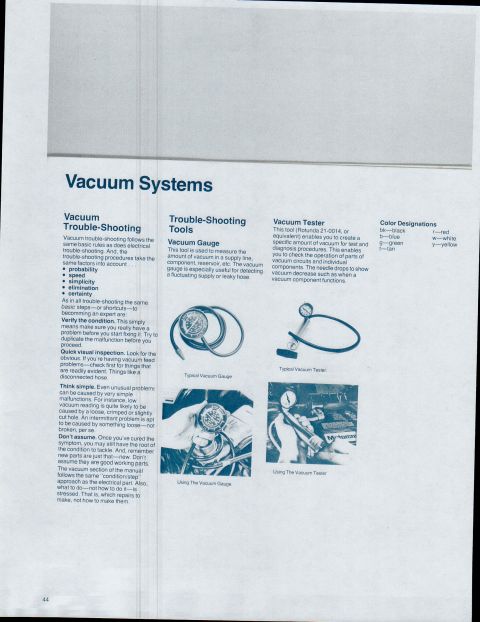

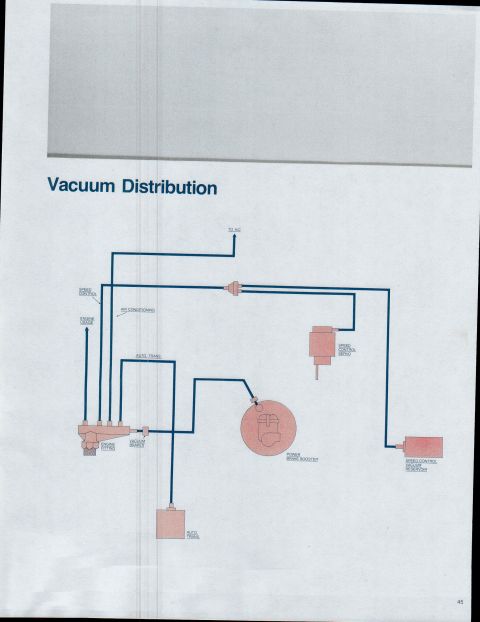

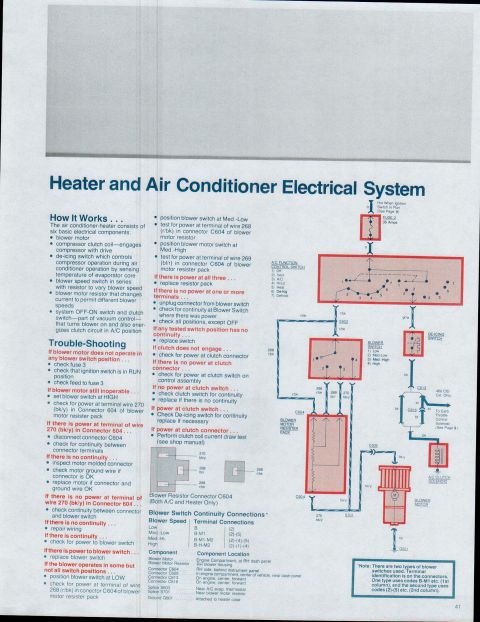

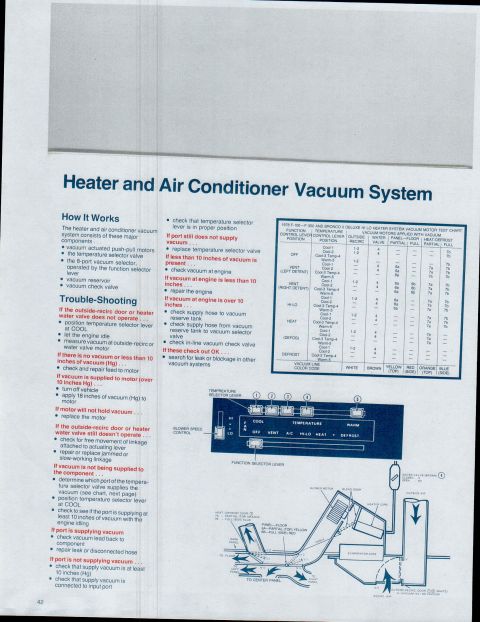

Ford Bronco/F-Series fuse block chart with meter usage; fuse position, amp size, wire color, circuit protected Ford speed control (cruise) wiring diagram with switch positions and trouble-shooting, Bronco/F-Series Brake / Transmission Vacuum Supply system operation and trouble-shooting page, Ford manual Ford Bronco/F-Series vacuum distribution diagram: power brake booster, A/C, auto transmission, speed control reservoir Ford vacuum systems troubleshooting page with vacuum gauge and tester tool usage Ford heater-AC temperature selector valve vacuum routing diagram with color-coded hoses 1978 F-350 and Bronco heater-AC vacuum system with vacuum motor test chart Ford truck heater and air conditioner electrical wiring diagram with blower resistor connector chart
