What wire should I check if the headlights fail but the parking lights work on a 1979 Ford truck?

Check for power at the dimmer switch connector terminal of wire 15 (y/bk). If no power there, check for power at the light switch terminal of wire 285 (br); if that also has no power, replace the light switch.

Where is splice 801 located?

Splice 801 is located behind the instrument cluster.

What should I check if headlights work but parking, side marker, and license plate lights fail?

If power is not present at terminal of wire 25 (bk/o), check the black and orange wire to the fuse link, inspect the fuse link, and check the black and orange wire to the battery. If power is present, check the terminal for damage and repair/replace as necessary, or replace the light switch if the terminal is OK.

How do I test a dimmer switch that only gives high or low beam?

Position the dimmer switch so you can operate it by hand, insert a test light on terminal of wire 12 (gr/bk) and operate the switch several times, then repeat on wire 13 (r/bk). If the test light does not flash off and on as the dimmer button is pushed, replace the dimmer switch.

Does the headlight switch have a fuse for the headlights?

The switch has an internal circuit breaker for the headlights circuit and one for the parking/marker lamp circuit; these circuit breakers are automatic resetting.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1979 Ford Bronco/ Photo supermotors.net/registry/media/1032632

1979 Ford Bronco F100-F350 Exterior Lighting Troubleshooting & Wiring Guide

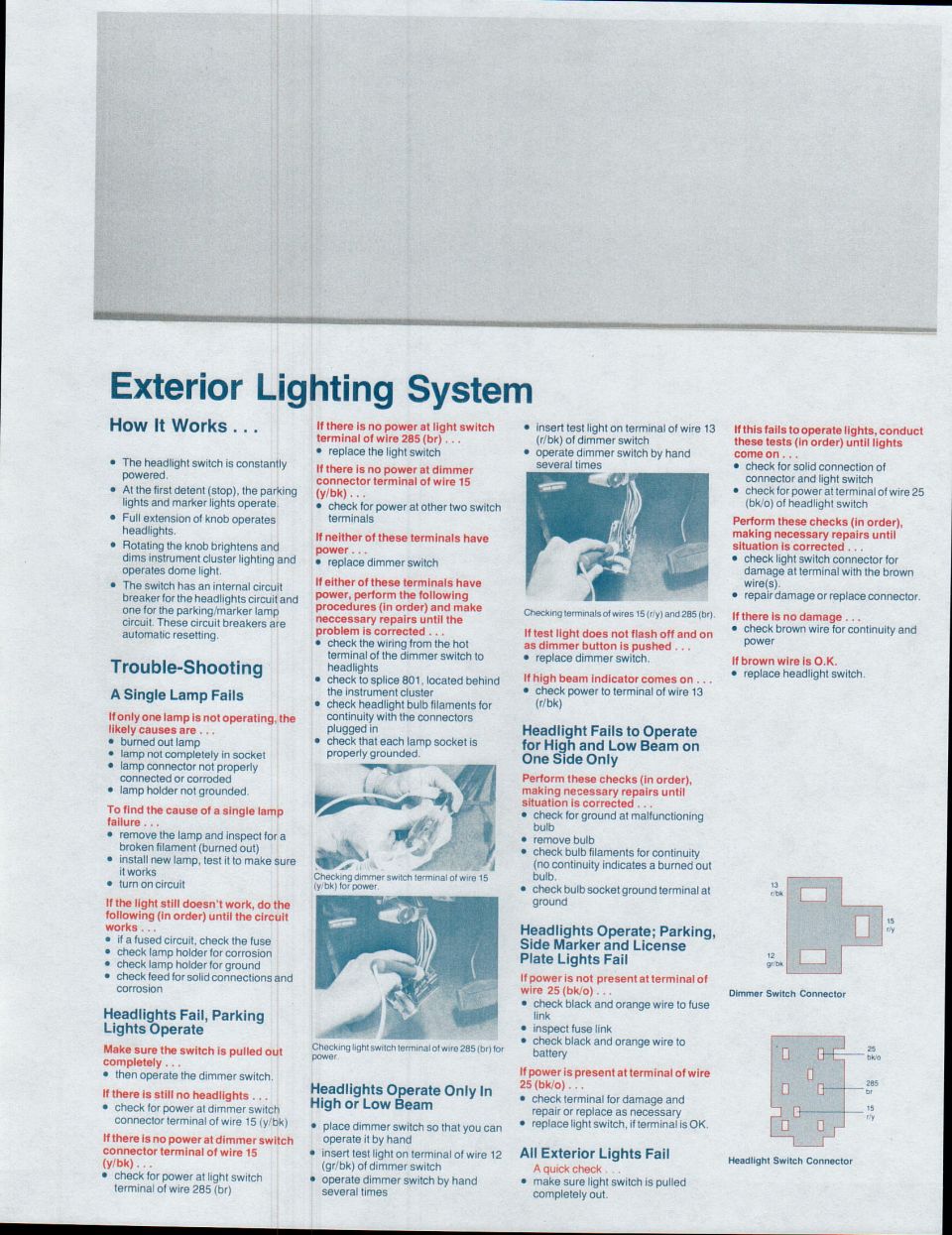

Exterior Lighting System troubleshooting page: headlight switch, dimmer switch connector diagrams

‹ ›
