What fuse protects the 4 wheel drive indicator light circuit?

Fuse 10, a 20 amp fuse, feeds the 4 Wheel Drive Indicator Light circuit; the circuit is hot when the ignition switch is in Run or Accy.

What fuse powers the seat belt warning buzzer?

Fuse 4, a 7.5 amp fuse, powers the Seat Belt Warning Indicator Buzzer circuit; it is fed from the ignition switch and hot in Run.

Where is the oil pressure switch located?

It varies by engine: 300 cid, on engine, LH rearward, below valve cover; 351/400 cid, centerline of engine block, full rearward; 460 cid, on top of engine rearward of carburetor; 302 cid, on engine block, LH lower side, near oil filter.

At what pressure does the oil pressure switch open?

The oil pressure switch opens with oil pressure over 6 PSI, which turns off the Oil Pressure Warning Indicator Light.

Where is connector C420 located and what does it look like?

C420 is on the toe board near the dimmer switch; it is a rectangular, brown, 2-terminal connector used in the Seat Belt Buckle Switch circuit.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1979 Ford Bronco/ Photo supermotors.net/registry/media/1032648

1979 Ford Bronco F100-F350 Wiring Diagram - Brake, Oil Pressure & Seat Belt Warning

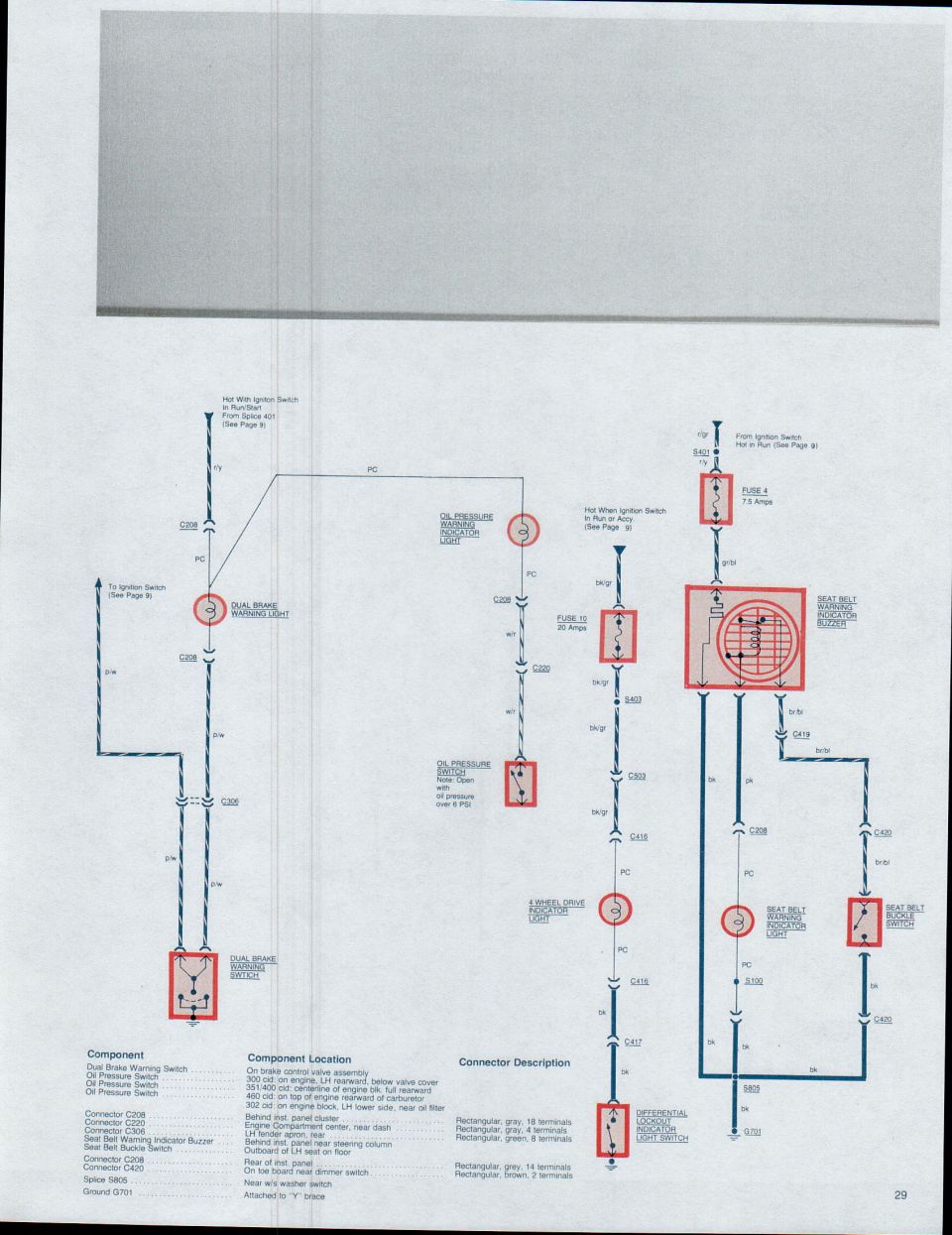

Ford truck brake, oil pressure and seat belt warning wiring diagram with fuse 4

‹ ›
