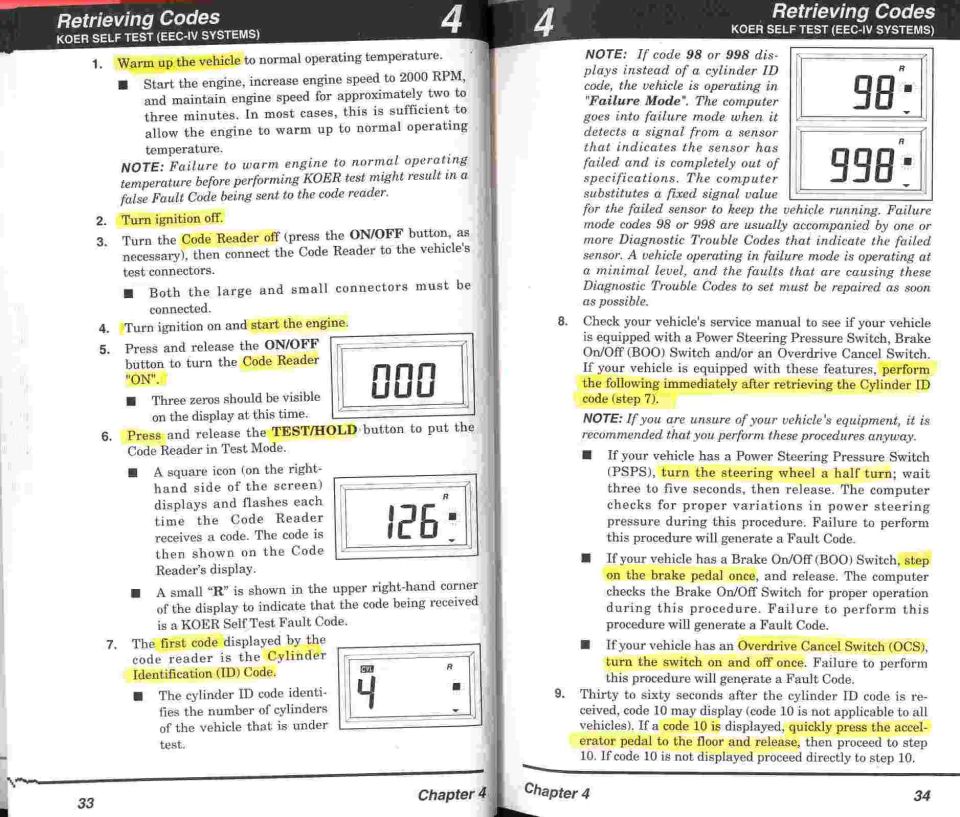

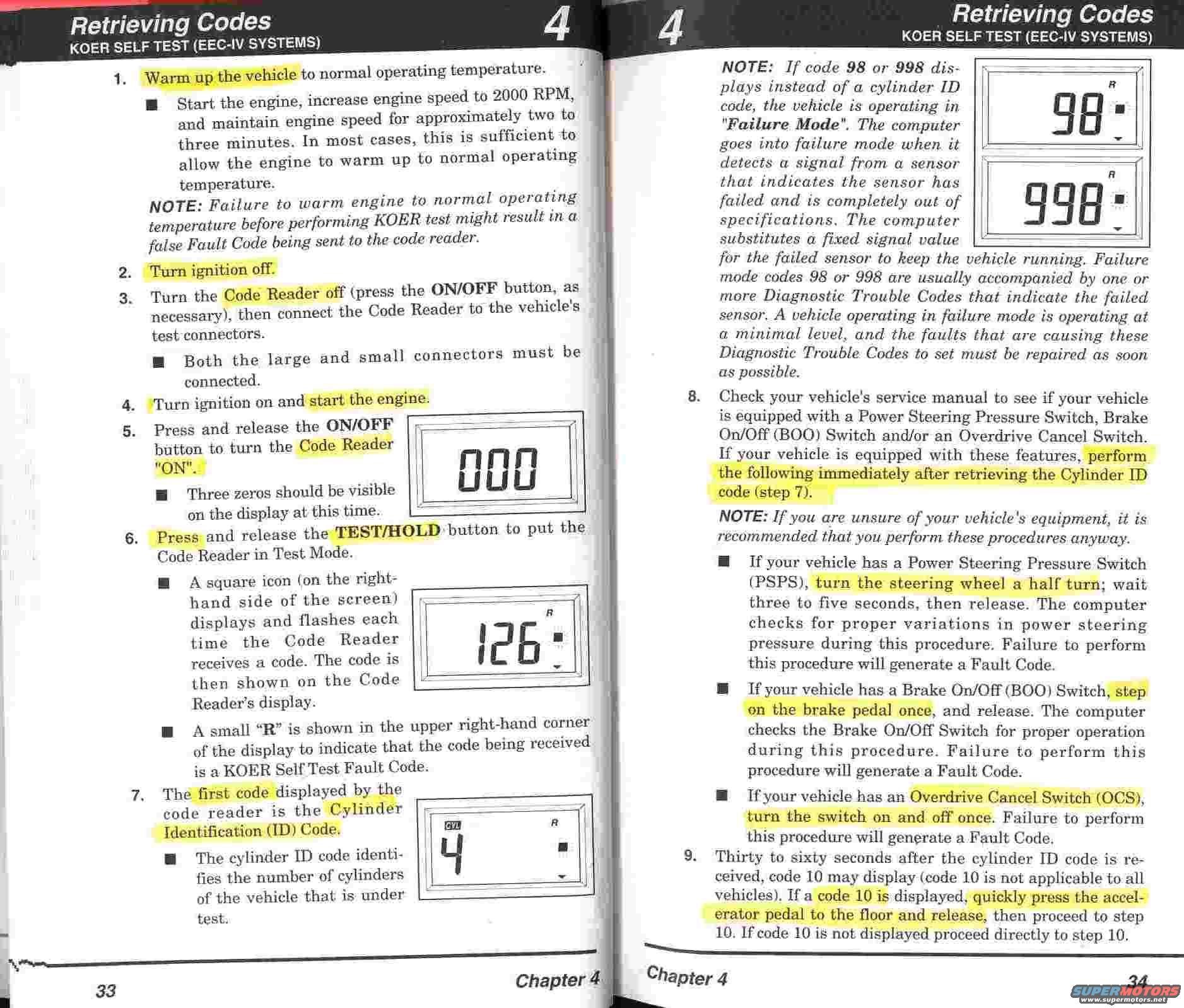

Code reader manual pages 33-34, Retrieving Codes KOER Self Test…

Code reader manual pages 33-34, Retrieving Codes KOER Self Test for EEC-IV systems, with highlighted steps
Code reader manual pages 33-34, Retrieving Codes KOER Self Test for EEC-IV systems, with highlighted stepsOriginal file
Code reader manual pages 33-34, Retrieving Codes KOER Self Test for EEC-IV systems, with highlighted steps

Reference · 1992-1996 BroncoAll 142 service procedures

1996 Ford Bronco/F-150 ABS Code 25 Pinpoint Test E - Front Right Solenoid Valve E4OD service page 07-01A-86 with TFT sensor resistance chart, solenoid and EPC tests 1994 Ford Bronco EGR System Functional Diagnosis - Test Steps EGR1-EGR3 (10A-13) Code reader manual pages 33-34, Retrieving Codes KOER Self Test for EEC-IV systems, with highlighted steps 1994 Ford Bronco/F-150 Radio & CD Player Removal Procedure - Service Manual 15-01-3 1994 Ford Bronco/F-150 Rear Drum Brake Diagram & Parts List - 06-02-9 Rear drum brake adjuster screw and shoe adjusting lever kit procedure with exploded diagram H4964-C 1994 Ford Bronco/F-150 Distributor Installation - 5.0L 5.8L 7.5L Closed Bowl Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA Parasitic Battery Draw Test Procedure - Checking for Unwanted Draw (Wilson) Ford Vacuum System Troubleshooting Steps & Tests - Supply, Leak, Component (EVTM) 1996 Ford Bronco Vacuum System Troubleshooting - Supply, Leak & Component Tests 142service procedures1992-1996 Ford Bronco More reference 1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4Wiring diagram 1996 Ford Bronco/F-150 Distributor Exploded Parts Diagram & Installation 03-07A-6Exploded parts Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16Spec plate 1996 F-Series and Bronco manual page 00-01-8 on VIN check digit, model year and plant codesManual page Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & TimingSchematic 1996 Ford Bronco Brochure Pg 7 - Specs, Trims, Options & Engine SpecificationsBrochure 1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector PinoutFuse chart Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing DiagramVacuum routing Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

KOER Self Test steps for EEC-IV systems: warm up, start engine, read the cylinder ID code, plus PSPS, BOO and OCS checks and 98/998 failure mode codes.
