What ground point do the F350 dual rear wheel body marker lamps use?

The left side, rear, and right side body marker lamp grounds all route via circuit 206 white (W) wires through splices S409, S410 and S412 to ground G401 (component view 151-19 B9).

What wire color and circuit number is used for the body marker lamp grounds?

Circuit 206, white (W) wire, throughout the marker lamp ground network on this page.

Which connectors are in the marker lamp ground circuit on a 1994 F350 dual rear wheel?

C411, C412 (left side), C410 (rear), C413, C420 (right side), plus C409 (151-19 F6), C408 (151-19 E9), C407 (151-24 F10), and C401 (151-19 F6).

Where does the driver's door master window switch ground go?

Pins 15, 1, 7, and 9 of the Master Window Control Switch pass through connector C503 to splice S500, then through connector C214 (component view 151-18 F3).

What page covers the trailer grounds referenced in this diagram?

The diagram points to "GROUNDS FOR TRAILER: PAGE 95-3," which branches off the marker lamp ground circuit through connector C407.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1090774

1994 Ford Bronco/F-Series EVTM Grounds 10-12 - Door Switch & Marker Lamp Wiring

1994 Bronco/F-Series ground wiring diagram page 10-12, body marker lamps and trailer grounds

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1994 Ford Bronco/F-Series EVTM Page 10-15 Grounds - S202 Ground Splice Diagram

1994 Ford Bronco/F-Series EVTM Grounds 10-14 - S205 Ground Splice Diagram

1994 Ford Bronco/F-Series EVTM Grounds Diagram Pg 10-13 - S203 Ground Splice

1994 Ford Bronco/F-Series EVTM Grounds 10-12 - Door Switch & Marker Lamp Wiring

1994 Ford Bronco/F-Series EVTM Grounds Diagram Pg 10-11 - G201 S200 Wiring

1994 Ford Bronco/F-Series EVTM Grounds 10-10 - Module Ground Wiring Diagram

1994 Bronco/F-Series 85-1 headlamps wiring diagram with connector reference list

1994 Bronco/F-Series in-line connector C202F pin face and pin-to-circuit table

1994 Ford Bronco/F-Series Instrument Cluster PSOM Wiring Diagram - EVTM 60-7

1994 Ford Bronco/F-Series PSOM C252 Connector Pinout - Speedometer Wiring

1994 Ford Bronco 4WABS ABS Wiring Diagram - EVTM Page 42-4

1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader Procedure

Service procedure

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Manual page

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Ford ground wiring diagram showing master window/door-lock switches, side marker lamps and trailer grounds with color-coded wires.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption June 2016 · Photo 269 of 409

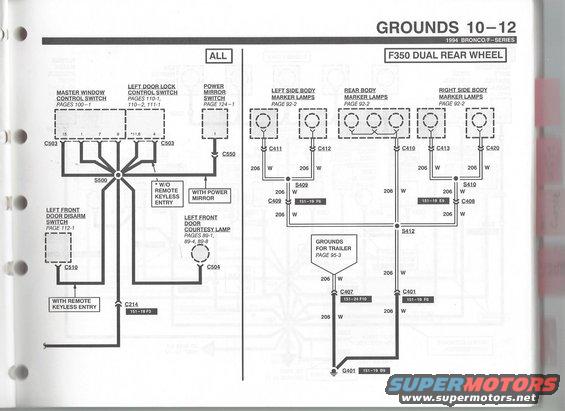

This is page 10-12 ("Grounds") from the 1994 Ford Bronco/F-Series Electrical & Vacuum Troubleshooting Manual (EVTM). The left half, labeled "ALL," shows the driver's-door ground circuit: the Master Window Control Switch (pins 15, 1, 7, 9; pages 100-1), Left Door Lock Control Switch (pins 11,8 without remote keyless entry, or pin 4; pages 110-1, 110-2, 111-1), Power Mirror Switch (pin 1; page 124-1), Left Front Door Disarm Switch (with remote keyless entry; page 112-1, connector C510), and Left Front Door Courtesy Lamp (pages 89-1, 89-4, 89-8; connector C504), all joining at splice S500 through connectors C503 and C550 and continuing through connector C214 (component view 151-18 F3). The right half, labeled "F350 DUAL REAR WHEEL," traces the grounds for the left side, rear, and right side body marker lamps (page 92-2) using white (W) circuit 206 wires through connectors C411, C412, C410, C413, C420, C409, C408, C407, and C401, splices S409, S410, and S412, including the trailer grounds branch (page 95-3), all terminating at ground G401 (component view 151-19 B9). Readers can trace ground wiring paths, connector numbers, wire color/circuit numbers, and cross-referenced EVTM pages.
