What fuses power the warning chime module on a 1996 Ford Bronco?

Three fuse panel circuits feed the module: fuse 17 (10A, hot in start or run) supplying run/start power on circuit 640 R/Y; fuse 8 (15A, hot at all times) through the left courtesy lamp switch on circuits 54 LG/Y and 159 R/PK; and fuse 4 (15A, hot at all times) through the main light switch on circuits 195 T/W and 14 BR.

When does the 1996 Bronco warning chime sound?

With the LH front door courtesy lamp switch closed (door open), the module sounds a warning if the key is left in the ignition, the headlamps are left on, or the seat belt is not buckled. With the seat belt unbuckled and power applied, an electronic timer sounds the warning buzzer for six seconds.

How long does the fasten seat belt indicator stay lit?

The indicator lights for 4 to 8 seconds when the ignition switch is initially put in the RUN position, whether the belts are buckled or not.

What wire color is the seat belt buckled input circuit?

Circuit 85 BR/LB (brown/light blue) runs from module pin 3 through connectors C280, C229F/M and C302M/F to the seat belt switch, which is open with the belt buckled and grounds through 57 BK at G201.

Where are connector and ground locations for this circuit described?

The diagram says to refer to Section 152 for components, connectors, splice and ground descriptions and locations; grounds are also covered on pages 10-10 and 10-6.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1097604

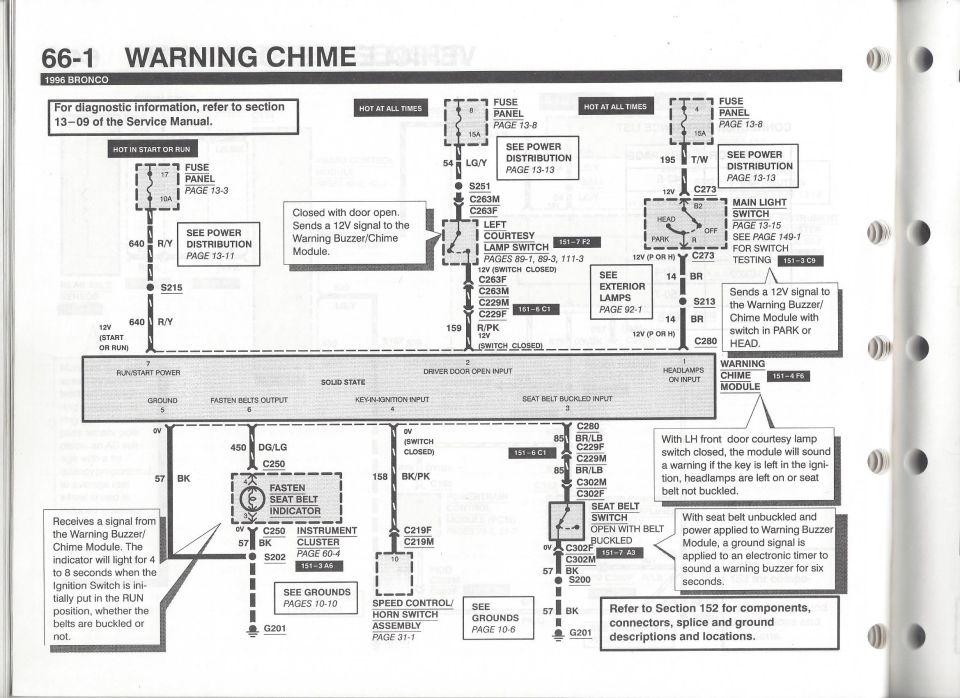

1996 Ford Bronco Warning Chime Wiring Diagram - EVTM Page 66-1

1996 Ford Bronco Warning Chime wiring diagram, section 66-1, seat belt indicator and chime module circuits

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1994 Ford Bronco 4WABS ABS Control Module C119 Pinout - EVTM Page 42-7

1994 Ford Bronco 4WABS ABS Module C119 Connector Pinout - EVTM Pg 42-7

1996 Ford Bronco/F-Series 4-Wheel ABS Code 25 Circuit Diagram (06-09B-35)

1996 Ford Bronco Warning Chime Wiring Diagram - EVTM Page 66-1

1996 Ford Bronco Warning Chime Module C280 Connector Pinout - EVTM 66-2

'94 Bronco/F-Series power windows page 100-1 wiring diagram of master switch and front window motors

'94 Bronco power windows page 100-2 wiring diagram of tailgate window switches, latch switch and motor

1994 Ford Bronco/F-Series Grounds Diagram 10-2 - Fuel Pump/Sender Grounds

1994 Ford Bronco/F-Series Instrument Cluster PSOM Wiring Diagram - EVTM 60-7

1994 Ford Bronco/F-Series PSOM C252 Connector Pinout - Speedometer Wiring

1994 Ford Bronco 4WABS ABS Wiring Diagram - EVTM Page 42-4

1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader Procedure

Service procedure

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Manual page

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

1996 Bronco warning chime wiring schematic (page 66-1) showing fuse panel feeds, seat belt indicator, ignition key-in switch and warning buzzer/chime module circuits with wire color codes.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption October 2016 · Photo 289 of 409

This is page 66-1, "Warning Chime," from the 1996 Ford Bronco Electrical & Vacuum Troubleshooting Manual (EVTM). It presents the complete wiring diagram for the warning chime module, a solid-state module with seven pins: run/start power (pin 7), driver door open input (pin 2), headlamps on input (pin 1), ground (pin 5), fasten belts output (pin 6), key-in-ignition input (pin 4), and seat belt buckled input (pin 3). Power sources are fuse 17 (10A, hot in start or run), fuse 8 (15A, hot at all times) via the left courtesy lamp switch, and fuse 4 (15A, hot at all times) via the main light switch. Wire circuits shown include 640 R/Y, 54 LG/Y, 159 R/PK, 195 T/W, 14 BR, 450 DG/LG, 158 BK/PK, 85 BR/LB, and 57 BK grounds at G201. Connectors referenced include C250, C263M/F, C229M/F, C273, C280, C302M/F, and C219F/M, with splices S200, S202, S213, S215, S251. Callouts explain module operation: warnings sound when the key is left in the ignition, headlamps are left on, or the seat belt is unbuckled with the driver's door open; the fasten seat belt indicator lights 4-8 seconds at initial RUN. Cross-references point to power distribution, grounds, instrument cluster, exterior lamps, and Section 152 component locations.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses power the warning chime module on a 1996 Ford Bronco?: Three fuse panel circuits feed the module: fuse 17 (10A, hot in start or run) supplying run/start power on circuit 640 R/Y; fuse 8 (15A, hot at all times) through the left courtesy lamp switch on circuits 54 LG/Y and 159 R/PK; and fuse 4 (15A, hot at all times) through the main light switch on circuits 195 T/W and 14 BR.
When does the 1996 Bronco warning chime sound?: With the LH front door courtesy lamp switch closed (door open), the module sounds a warning if the key is left in the ignition, the headlamps are left on, or the seat belt is not buckled. With the seat belt unbuckled and power applied, an electronic timer sounds the warning buzzer for six seconds.
How long does the fasten seat belt indicator stay lit?: The indicator lights for 4 to 8 seconds when the ignition switch is initially put in the RUN position, whether the belts are buckled or not.
What wire color is the seat belt buckled input circuit?: Circuit 85 BR/LB (brown/light blue) runs from module pin 3 through connectors C280, C229F/M and C302M/F to the seat belt switch, which is open with the belt buckled and grounds through 57 BK at G201.
Where are connector and ground locations for this circuit described?: The diagram says to refer to Section 152 for components, connectors, splice and ground descriptions and locations; grounds are also covered on pages 10-10 and 10-6.
