1994 Ford Bronco 4WABS ABS Control Module C119 Pinout - EVTM Page 42-7

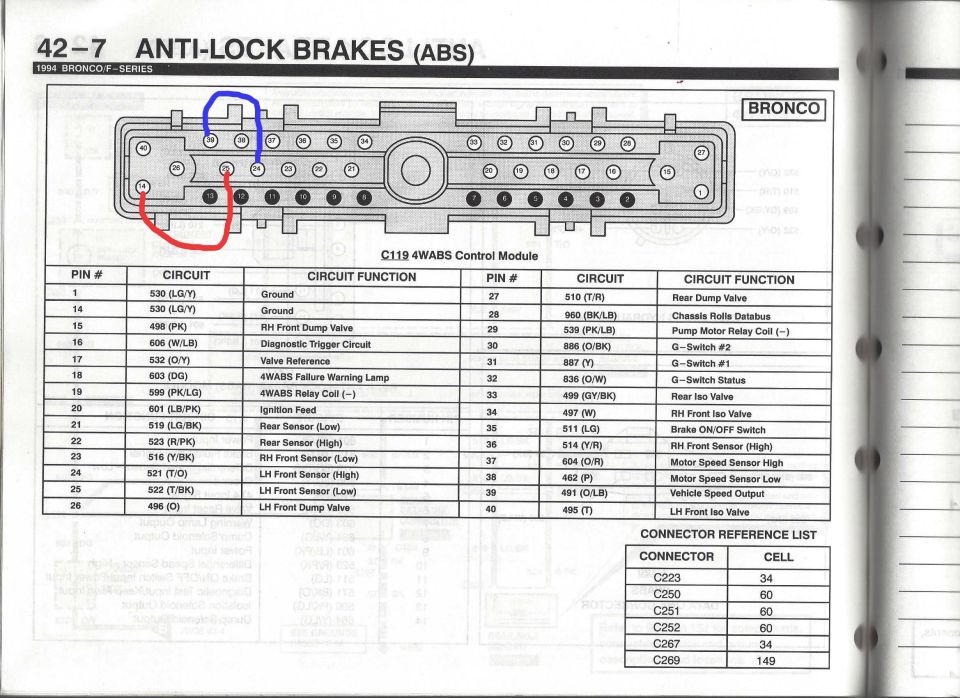

1994 Ford Bronco/F-Series 4WABS control module C119 connector pinout chart with annotated pins
1994 Ford Bronco/F-Series 4WABS control module C119 connector pinout chart with annotated pinsOriginal file
1994 Ford Bronco/F-Series 4WABS control module C119 connector pinout chart with annotated pins

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1994 Ford Bronco/F-Series In-Line Connector Faces C300 & C318 Pinouts (EVTM) 1994 Ford Bronco 4WABS Control Module C119 Connector Pinout - ABS Wiring Diagram 1994 Ford Bronco 4WABS ABS Control Module C119 Connector Pinout - EVTM 42-7 1994 Ford Bronco 4WABS ABS Control Module C119 Pinout - EVTM Page 42-7 1994 Ford Bronco 4WABS ABS Module C119 Connector Pinout - EVTM Pg 42-7 1996 Ford Bronco/F-Series 4-Wheel ABS Code 25 Circuit Diagram (06-09B-35) 1996 Ford Bronco Warning Chime Wiring Diagram - EVTM Page 66-1 1996 Ford Bronco Warning Chime Module C280 Connector Pinout - EVTM 66-2 1994 Ford Bronco/F-Series Instrument Cluster PSOM Wiring Diagram - EVTM 60-7 1994 Ford Bronco/F-Series PSOM C252 Connector Pinout - Speedometer Wiring 1994 Ford Bronco 4WABS ABS Wiring Diagram - EVTM Page 42-4 1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS 411wiring diagrams1992-1996 Ford Bronco More reference 1996 Ford Bronco/F-150 Distributor Exploded Parts Diagram & Installation 03-07A-6Exploded parts Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader ProcedureService procedure Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16Spec plate 1996 F-Series and Bronco manual page 00-01-8 on VIN check digit, model year and plant codesManual page Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & TimingSchematic 1996 Ford Bronco Brochure Pg 7 - Specs, Trims, Options & Engine SpecificationsBrochure 1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector PinoutFuse chart Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing DiagramVacuum routing Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

4WABS anti-lock brake control module connector C119 pinout (1994 Bronco/F-Series) with user-circled pin groups; lists 40 pins, circuit numbers, wire colors and functions.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption · Photo 324 of 409

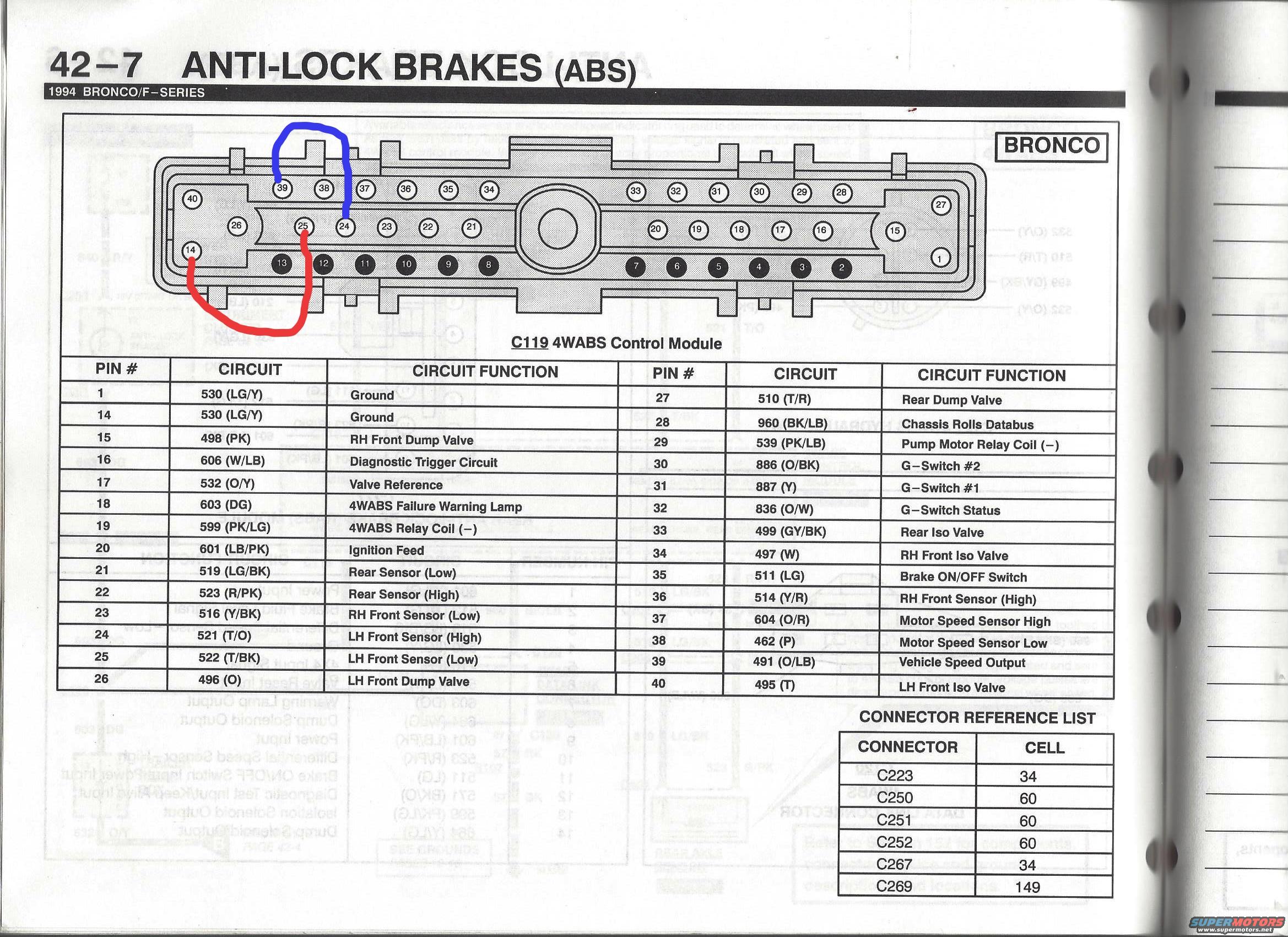

This document is page 42-7 of the 1994 Ford Bronco/F-Series Electrical & Vacuum Troubleshooting Manual (EVTM), covering the Anti-Lock Brakes (ABS) system. It shows the pinout of connector C119, the 40-pin connector for the 4WABS (four-wheel anti-lock brake system) Control Module on the Bronco. A connector face diagram illustrates the physical position of all 40 pins, with hand-drawn marker annotations circling pins 39/24 (blue) and 14/25 (red). A table lists each pin number with its Ford circuit number, wire color code, and circuit function, including grounds (pins 1, 14 on circuit 530 LG/Y), dump and iso valve controls for each wheel channel, wheel speed sensor inputs (rear, RH front, LH front high/low pairs), G-switch inputs, pump motor relay coil, 4WABS relay coil, failure warning lamp, ignition feed, diagnostic trigger, brake on/off switch, motor speed sensor high/low, and vehicle speed output. A connector reference list cross-references connectors C223, C250, C251, C252, C267, and C269 to their EVTM cell numbers. This page is useful for diagnosing 4WABS wiring faults, identifying wire colors at the ABS module, and tracing ABS circuits on 1994 Bronco and F-Series trucks.
