1994 Ford Bronco Negative Battery Cable Diagram - Ground Cable Lengths & Routing

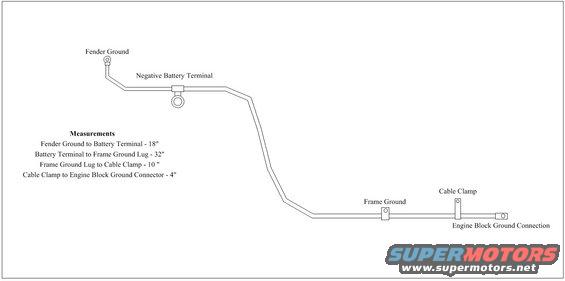

This document is a hand-drawn/CAD-style schematic of a custom negative battery cable layout, uploaded to the gallery of a 1994 Ford Bronco. The diagram traces a single ground cable path from a Fender Ground lug, through the Negative Battery Terminal, down to a Frame Ground lug, through a Cable Clamp, and ending at the Engine Block Ground Connection. A 'Measurements' legend gives cut lengths for each cable segment: Fender Ground to Battery Terminal is 18 inches, Battery Terminal to Frame Ground Lug is 32 inches, Frame Ground Lug to Cable Clamp is 10 inches, and Cable Clamp to Engine Block Ground Connector is 4 inches. The drawing shows terminal lug ends at the fender, frame, and engine block, a ring-style battery terminal at the negative post, and a clamp midway along the run. There are no part numbers, wire gauge callouts, torque specs, or year/model statements on the document itself; companion images in the same album reference NAPA flag terminals, a 175 amp mega fuse, and 1-gauge solder pellets, suggesting this is one page of a battery cable fabrication set. A reader can use this diagram to fabricate a replacement negative battery cable with matching segment lengths and grounding points.
