What is the length from the starter solenoid to the battery terminal on this positive battery lead?

The measurements table lists Solenoid to battery terminal as 16-18 inches.

How long is the starter trigger wire in this diagram?

The Starter Trigger Wire is listed as 63 inches, with the Starter Trigger to cable clamp (starter end) segment being 22 inches.

What is the total distance from the battery terminal to the starter power terminal?

The diagram lists Battery Terminal to Starter Power Terminal as 47-50 inches, broken down as Battery Terminal to Cable Clamp 30 inches and Cable Clamp to starter 17 inches.

How long is the HEGO lead in this cable assembly?

The HEGO Lead (connector end to end) is 48 1/2 inches, and the HEGO Lead sensor end sits 11 inches from the Cable Clamp.

What components are shown on this positive battery cable routing diagram?

It shows the Starter Solenoid/Relay, HEGO lead and connector, Positive Battery Terminal, a Cable Clamp, the Starter Trigger ring terminal, and the Starter Power Connection.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1111615

1994 Ford Bronco Positive Battery Cable Diagram - Lead Lengths & Routing

Diagram of starter and positive cable routing with solenoid, HEGO leads and labeled lengths

‹ ›

Routing diagram of positive battery and starter wiring with labeled solenoid, HEGO and clamp points plus measurements.

AI caption July 2017 · Photo 2467 of 3001

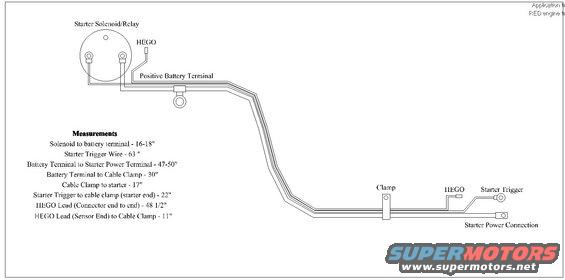

This document is a hand-drafted wiring/cable-routing diagram for a positive battery lead assembly, uploaded to a 1994 Ford Bronco gallery. The drawing shows the positive battery cable run beginning at the Starter Solenoid/Relay (drawn as a round relay with two terminal posts), continuing through the Positive Battery Terminal (drawn as a ring/eyelet), then routing down and across to a Cable Clamp, with branches for a HEGO (heated exhaust gas oxygen sensor) lead connector, a Starter Trigger ring terminal, and the Starter Power Connection at the far end. A 'Measurements' legend lists cable segment lengths for fabricating the harness: Solenoid to battery terminal 16-18", Starter Trigger Wire 63", Battery Terminal to Starter Power Terminal 47-50", Battery Terminal to Cable Clamp 30", Cable Clamp to starter 17", Starter Trigger to cable clamp (starter end) 22", HEGO Lead connector end to end 48 1/2", and HEGO Lead sensor end to Cable Clamp 11". Text in the upper-right corner ('Application ti…', 'RED engine ti…') is cut off. A reader can use this diagram as a template for building or replacing a positive battery cable with integrated starter trigger and HEGO leads, with exact cut lengths for each segment.
