Hyundai Genesis Coupe 3.8L (G6DA) MFI Ignition Coil Wiring Diagram SD313-10

Wiring diagram showing ignition coil and condenser circuits with grounds for a 3.8L MFI control system.

AI caption · Photo 954 of 981

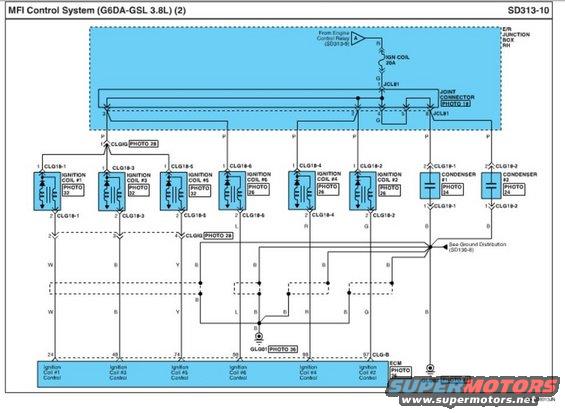

This document is page 2 of the MFI (Multiport Fuel Injection) Control System wiring diagram, sheet SD313-10, for the G6DA-GSL 3.8L V6 engine. It shows the ignition coil circuit: power comes from the Engine Control Relay (referenced on SD313-9) through the 20A IGN COIL fuse in the E/R (engine room) Junction Box RH, then through joint connector JCL81 to all six ignition coils (connectors CLG18-1 through CLG18-6) and two condensers (CLG19-1, CLG19-2). Feed wires to the coils are P (pink); control-side wire colors are W, B, Y, L, R, and G. Each coil's control wire runs to the ECM connector CLG-B: pin 24 (Coil #1), 49 (Coil #3), 74 (Coil #5), 98 (Coil #6), 99 (Coil #4), and 97 (Coil #2). Grounds go through GLG01 and GLG02, with a reference to Ground Distribution on SD130-8. Photo callouts (PHOTO 19, 24, 26, 28, 32, 34, 36) point to connector location photos, and connector CLGIG links the coil ground/shield circuit. A reader can use this to trace ignition coil power, control, and ground circuits and identify the correct ECM pins and fuse for diagnosis.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Which fuse powers the ignition coils on the 3.8L G6DA engine?
The IGN COIL 20A fuse in the E/R Junction Box RH, fed from the Engine Control Relay (see SD313-9).
Which ECM pins control each ignition coil?
ECM connector CLG-B: pin 24 = Coil #1, pin 49 = Coil #3, pin 74 = Coil #5, pin 98 = Coil #6, pin 99 = Coil #4, pin 97 = Coil #2.
What are the connector numbers for the ignition coils?
CLG18-1 through CLG18-6 for ignition coils #1–#6, and CLG19-1 / CLG19-2 for Condenser #1 and Condenser #2.
What wire color feeds power to all the ignition coils?
P (pink) wires from joint connector JCL81 feed pin 1 of each ignition coil connector.
Where is the ground distribution for this circuit documented?
The diagram refers to Ground Distribution on sheet SD130-8; grounds shown here are GLG01 and GLG02.
