2010 Hyundai Genesis Coupe Power Distribution Wiring Diagram - Button Start

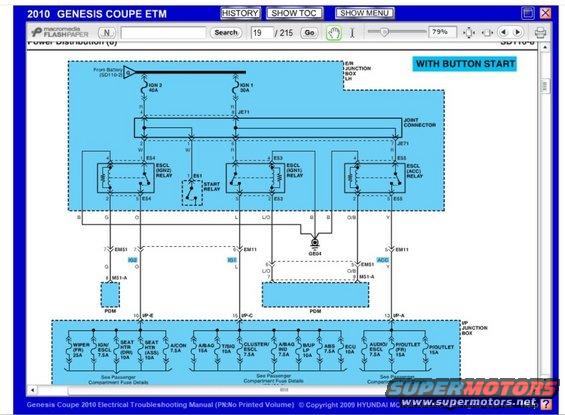

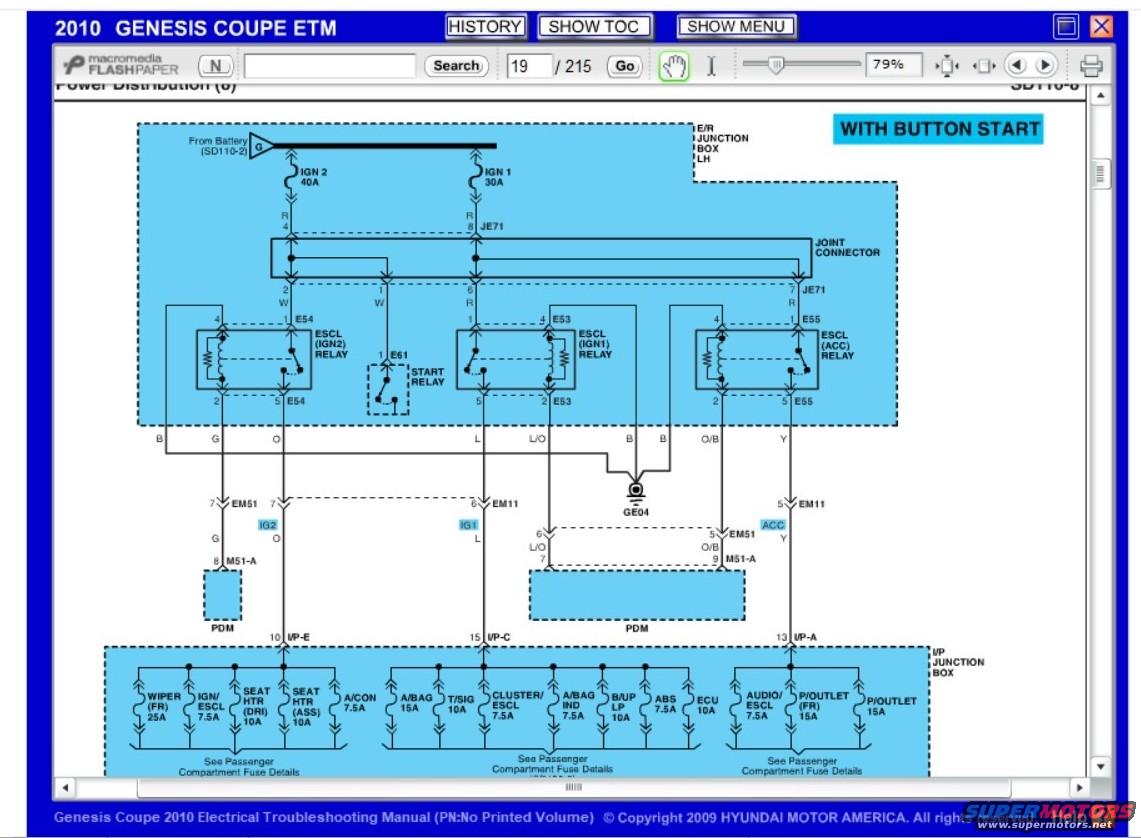

This document is page 19 of 215 from the 2010 Hyundai Genesis Coupe Electrical Troubleshooting Manual (ETM), showing the Power Distribution (6) diagram, sheet SD110-6, specifically for vehicles WITH BUTTON START. It traces power from the battery (via SD110-2) through the IGN 2 40A and IGN 1 30A fuses in the E/R (engine room) Junction Box LH, through joint connector JE71, to three ESCL relays — ESCL (IGN2) relay (connector E54), ESCL (IGN1) relay (connector E53), and ESCL (ACC) relay (connector E55) — plus the START relay (E61). Relay outputs pass through connectors EM51, EM11, and M51-A to the PDM (Power Distribution Module) and to the I/P (instrument panel) Junction Box via connectors I/P-E (pin 10), I/P-C (pin 15), and I/P-A (pin 13). The I/P junction box fuses shown include WIPER (FR) 25A, IGN/ESCL 7.5A, SEAT HTR (DRI) 10A, SEAT HTR (ASS) 10A, A/CON 7.5A, A/BAG 15A, T/SIG 10A, CLUSTER/ESCL 7.5A, A/BAG IND 7.5A, B/UP LP 10A, ABS 7.5A, ECU 10A, AUDIO/ESCL 7.5A, P/OUTLET (FR) 15A, and P/OUTLET 15A. Wire colors (R, W, G, O, L, L/O, B, O/B, Y) and ground point GE04 are labeled. Readers can identify fuse ratings, relay connector pinouts, and circuit routing for the IGN1/IGN2/ACC power distribution with push-button start.
