What fuses power the turn signal and hazard circuits on a 1995 Ford Bronco?

Per the diagram, fuse 7 (15A, hot in RUN) powers the turn flasher, and fuse 13 (15A, hot at all times) powers the hazard flasher and the Brake On/Off (BOO) switch.

What does the BOO (Brake On/Off) switch do?

The diagram states it is closed with the brake pedal depressed, allowing current flow to operate the stop lamps. Its output on circuit 511 LG also feeds the trailer electronic brake control unit, shift lock actuator, speed control, 4WABS control module, PCM, and high-mount stop lamps.

What wire color is the brake switch output circuit?

Circuit 511, light green (LG), which branches at splice S240; it continues as circuit 569 DG (dark green) to the outside cargo/high-mount stop lamps at C907.

Which wires feed the front turn signal lamps?

Circuit 3 LG/W feeds the left front park/turn lamp through C202 and C1031, and circuit 2 W/LB feeds the right front park/turn lamp through C202 and C1032.

Does the brake switch signal go to the PCM?

Yes: 511 LG goes to the powertrain control module at connector C185 pin 2, but the diagram notes this applies only with the E4OD or 4R70W transmission.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1172076

1995 Ford Bronco BOO Brake Switch & Turn Signal Wiring Diagram (Stop Lamps)

'95 Bronco brake on/off switch wiring diagram with color-coded turn, flasher and stop circuits

‹ ›

Reference · 1980-1986 BroncoAll 92 wiring diagrams

1992-96 Ford Bronco Fuel Pump Wiring Diagram - Relay, Inertia Switch, EEC

1992-Up Ford Multifunction Switch (MFS) Testing - Terminal Pinout & Ohm Values

1996 Ford F-Series/Bronco EEC/PCM Connector Pinout Diagram: 4.9L 5.0L 5.8L

1995 Ford Bronco BOO Brake Switch & Turn Signal Wiring Diagram (Stop Lamps)

Ford C913 Connector Pinout - Automatic Day/Night Mirror Wiring Diagram

1994-1996 Ford Bronco/F-150 Airbag Circuit Wiring Diagram - SRS Sensors & Pins

Ford Bronco 4WABS Anti-Lock Brake Wiring Diagram - Connector Pinouts C119 C121

1992-96 Ford F-Series Power Window Wiring Diagram (& '97 >8500 GVWR)

92wiring diagrams1980-1986 Ford Bronco More reference

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Exploded parts

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

Brake On-Off (BOO) Circuit for '95 Bronco (others similar)
IF THE IMAGE IS TOO SMALL, click it.

The shift lock is specific to '95-up with auto trans; CHMSL is '92-96 for Broncos, but '94-up for F-series; 4WABS is '93-96 Bronco, but F-series have RABS from '87-up; rear defrost is a Bronco option.

See also:

Part of 1980-1986 Ford Bronco Wiring Diagrams

Owner caption February 2024 · Photo 6336 of 6546

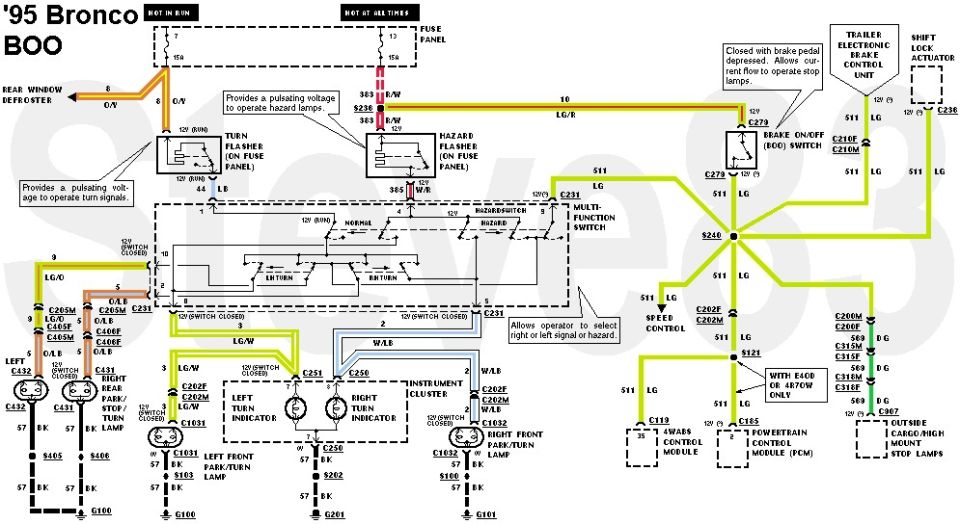

This is a color-coded wiring diagram titled "'95 Bronco BOO" covering the Brake On/Off (BOO) switch, turn signal, hazard, and stop lamp circuits on a 1995 Ford Bronco. Power originates from two 15A fuses in the fuse panel: fuse 7 (hot in RUN, feeding the turn flasher via circuit 8 O/Y shared with the rear window defroster feed) and fuse 13 (hot at all times, feeding the hazard flasher and BOO switch via circuit 383 R/W and 10 LG/R). The multi-function switch (C231) routes flasher output (44 LB from the turn flasher, 385 W/R from the hazard flasher) to left and right turn circuits: 9 LG/O and 5 O/LB to the rear park/stop/turn lamps (C431, C432), and 3 LG/W and 2 W/LB to the front park/turn lamps (C1031, C1032) and instrument cluster turn indicators (C250, C251). The BOO switch output on circuit 511 LG branches at splice S240 to the trailer electronic brake control unit, shift lock actuator, speed control, 4WABS control module (C119 pin 35), PCM (C185 pin 2, E4OD/4R70W only), and via circuit 569 DG to the outside cargo/high-mount stop lamps (C907). Ground paths use circuit 57 BK to G100, G101, and G201. Explanatory callouts describe flasher and BOO switch operation.
