What is the torque spec for the roof panel screw and washer assemblies?

The screw and washer assemblies (N800947) are torqued to 7-10 N-m (6-7 ft-lbs). The locating pins are torqued to 8-16 N-m (6-11 ft-lbs).

What part numbers are used to attach the Bronco roof panel?

Roof panel assembly 50200, screw and washer assembly N800947 / N800947-S2, nut N800925 S100, nut 385977-S36, weatherstrip assembly 54732, and run assembly 422A00.

How should the removable roof be stored off the vehicle?

Place supports approximately one foot inboard from each end of the roof, with a minimum of 153 mm (6 inches) of clearance, resting on the weatherstrip areas.

How many locating pins secure the roof panel?

There are two locating pins, one on each side, torqued to 8-16 N-m (6-11 ft-lbs).

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “da Money Pit”/ Photo supermotors.net/registry/media/202971

Ford Bronco Removable Hardtop Roof Panel Diagram - Bolts, Torque & Storage

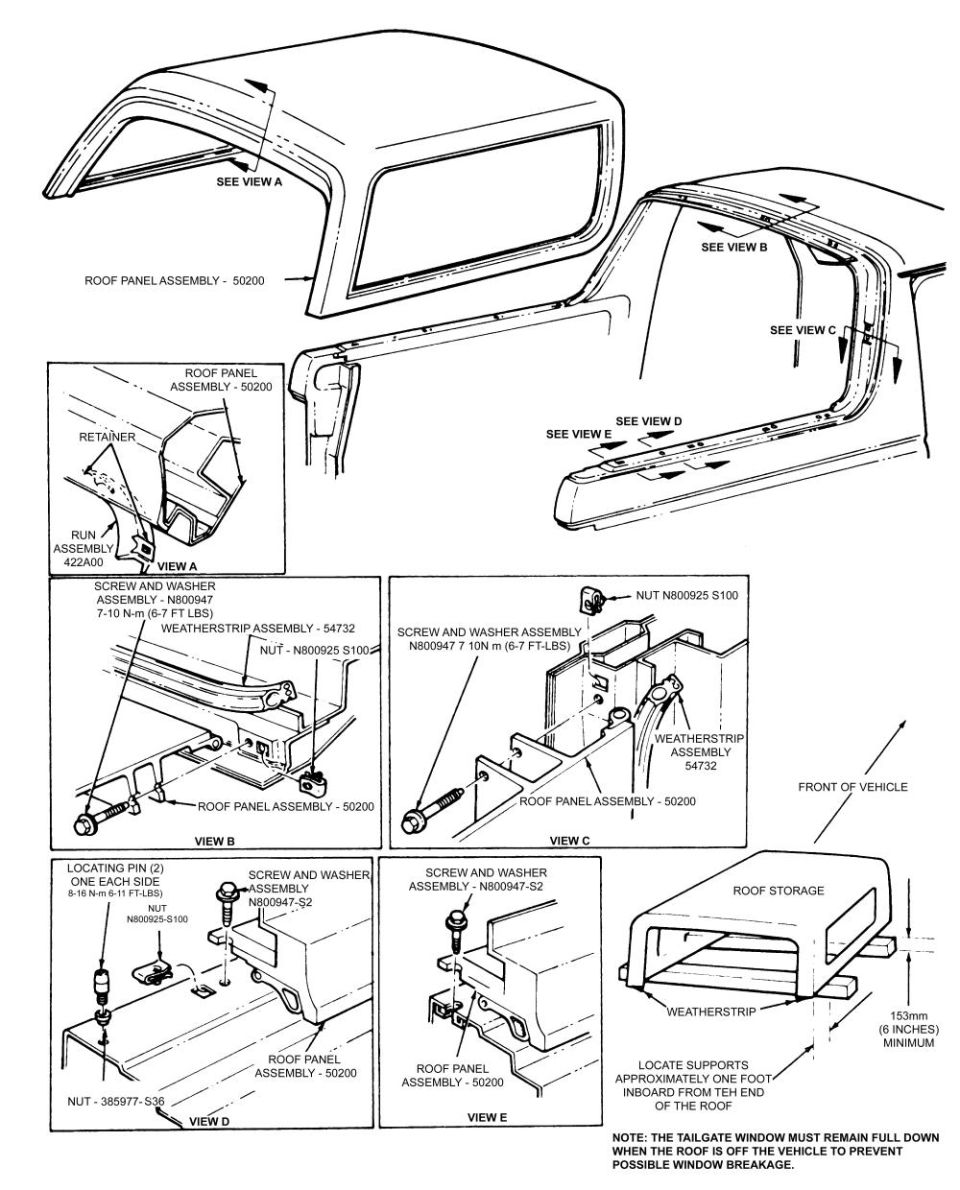

Exploded assembly diagram of hardtop roof panel with mounting hardware

‹ ›

Exploded parts diagram of a hardtop roof panel assembly showing weatherstrip, hardware and part numbers across multiple views.

AI caption May 2005 · Photo 228 of 460

This exploded parts diagram illustrates the removable hardtop roof panel assembly (part reference 50200) for a Ford Bronco-style SUV, showing how the roof attaches to the body and how to store it. The main illustration shows the roof panel lifted off the vehicle with callouts to five detail views (A through E). View A shows the retainer and run assembly (422A00) at the roof edge. Views B and C detail the screw and washer assembly (N800947, torqued to 7-10 N-m / 6-7 ft-lbs), nut (N800925 S100), and weatherstrip assembly (54732) at the roof mounting points. View D shows the two locating pins (one each side, torqued 8-16 N-m / 6-11 ft-lbs), nut N800925-S100, screw and washer assembly N800947-S2, and nut 385977-S36. View E shows the screw and washer assembly N800947-S2 at the rear mounting point. A roof storage diagram specifies placing supports approximately one foot inboard from the ends of the roof with 153 mm (6 inches) minimum clearance, with weatherstrip contact points noted. An important note warns that the tailgate window must remain fully down when the roof is off the vehicle to prevent possible window breakage.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the roof panel screw and washer assemblies?: The screw and washer assemblies (N800947) are torqued to 7-10 N-m (6-7 ft-lbs). The locating pins are torqued to 8-16 N-m (6-11 ft-lbs).
What part numbers are used to attach the Bronco roof panel?: Roof panel assembly 50200, screw and washer assembly N800947 / N800947-S2, nut N800925 S100, nut 385977-S36, weatherstrip assembly 54732, and run assembly 422A00.
How should the removable roof be stored off the vehicle?: Place supports approximately one foot inboard from each end of the roof, with a minimum of 153 mm (6 inches) of clearance, resting on the weatherstrip areas.
Why must the tailgate window be down when removing the roof?: The document notes the tailgate window must remain fully down when the roof is off the vehicle to prevent possible window breakage.
How many locating pins secure the roof panel?: There are two locating pins, one on each side, torqued to 8-16 N-m (6-11 ft-lbs).
