What years and models does this door glass regulator diagram cover?

The diagram is labeled for 1980-1996 Ford Bronco and F-series trucks.

What is the torque spec for the window crank handle screw?

Screw 390334-S7 should be tightened to 3.7-5.4 N·m (33-48 in-lb).

What is the torque spec for the interior door handle screw?

Screw and washer assembly N801271-S100 should be tightened to 9-14 N·m (6.6-10.3 ft-lb).

What fastener attaches the window regulator to the door?

The regulator (part 23200) is attached with rivet 3895189-S100.

What tape is used on the door glass channel?

Tape ESB-M3G44-A (or equivalent) is shown at the regulator/door glass in View A, and tape ESB-M3G49-A is shown on channel assembly 21458 in View C.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1988 Ford Bronco/ Photo supermotors.net/registry/media/235347

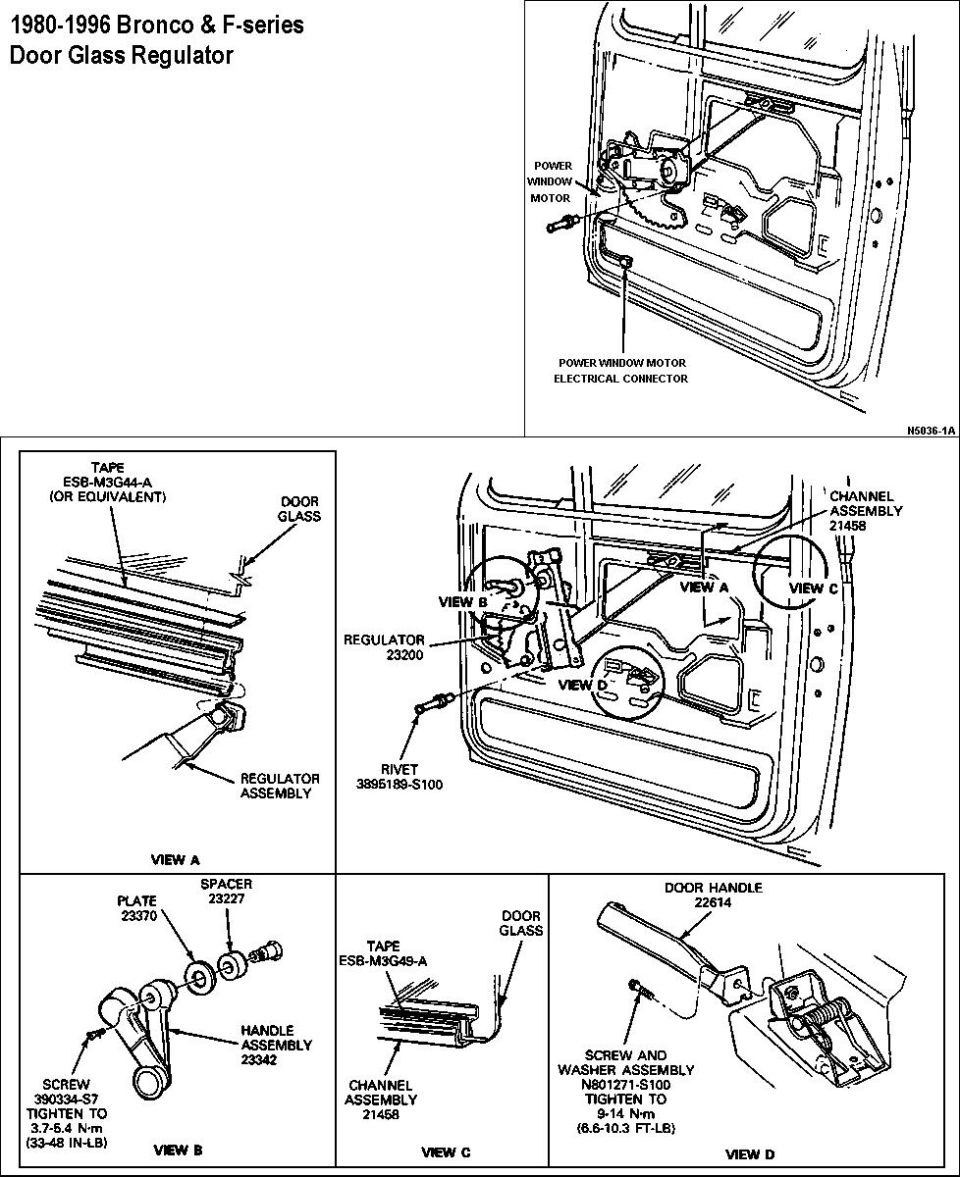

1980-1996 Ford Bronco & F-Series Door Glass Regulator Exploded Parts Diagram

Exploded parts diagram of 1980-1996 Bronco and F-series door glass regulator assembly

‹ ›

Exploded parts diagram of the door glass regulator for 1980-1996 Bronco and F-series with labeled views and part numbers.

AI caption August 2005 · Photo 7 of 120

This document is an exploded parts diagram for the door glass regulator used on 1980-1996 Ford Bronco and F-series trucks. The top illustration shows the inside of a door with a power window setup, identifying the power window motor and its electrical connector (figure reference N5036-1A). The main illustration shows the full door assembly with four detail callouts (Views A–D) and identifies the regulator (part 23200), channel assembly (21458), the rivet used to attach the regulator (3895189-S100), and the tape (ESB-M3G44-A or equivalent) applied where the regulator engages the door glass. View B details the manual window crank components: plate 23370, spacer 23227, handle assembly 23342, and screw 390334-S7 with a torque spec of 3.7-5.4 N·m (33-48 in-lb). View C shows tape ESB-M3G49-A applied to channel assembly 21458 at the door glass. View D shows the interior door handle 22614 secured by screw and washer assembly N801271-S100, torqued to 9-14 N·m (6.6-10.3 ft-lb). A reader can learn part numbers, fastener locations, and torque values for servicing manual and power window regulators and door handles on these trucks.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What years and models does this door glass regulator diagram cover?: The diagram is labeled for 1980-1996 Ford Bronco and F-series trucks.
What is the torque spec for the window crank handle screw?: Screw 390334-S7 should be tightened to 3.7-5.4 N·m (33-48 in-lb).
What is the torque spec for the interior door handle screw?: Screw and washer assembly N801271-S100 should be tightened to 9-14 N·m (6.6-10.3 ft-lb).
What fastener attaches the window regulator to the door?: The regulator (part 23200) is attached with rivet 3895189-S100.
What tape is used on the door glass channel?: Tape ESB-M3G44-A (or equivalent) is shown at the regulator/door glass in View A, and tape ESB-M3G49-A is shown on channel assembly 21458 in View C.
