Ford Bronco Removable Roof Panel 50200 Exploded Diagram - Hardware & Torque

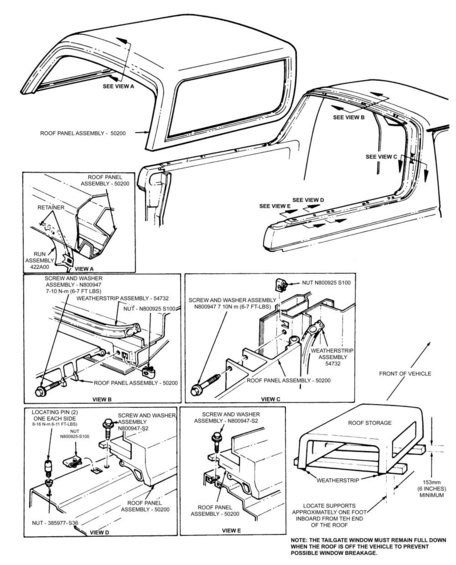

This exploded parts diagram shows the removable roof panel assembly (part group 50200) for a Ford Bronco, including its attachment hardware and removal/storage instructions. The main illustration depicts the roof panel lifted off the rear body, with five detailed callout views (A through E) showing fastening points. View A shows the retainer and run assembly (422A00). Views B and C detail the screw and washer assemblies (N800947), nuts (N800925 S100), and weatherstrip assembly (54732), with a torque specification of 7-10 N-m (6-7 ft-lbs). View D shows the locating pins (two, one each side) torqued to 8-16 N-m (6-11 ft-lbs), the N800925-S100 nut, the N800947-S2 screw and washer assembly, and nut 385977-S36. View E shows the N800947-S2 screw and washer assembly attachment. A roof storage illustration instructs that supports be located approximately one foot inboard from the ends of the roof, with a minimum clearance of 153mm (6 inches), and weatherstrip protection. A note warns that the tailgate window must remain fully down when the roof is off the vehicle to prevent possible window breakage. Readers can learn fastener part numbers, torque values, and proper roof removal and off-vehicle storage practices.
