C312 seat connector pinout diagram for a 2003 Ford Crown Victoria

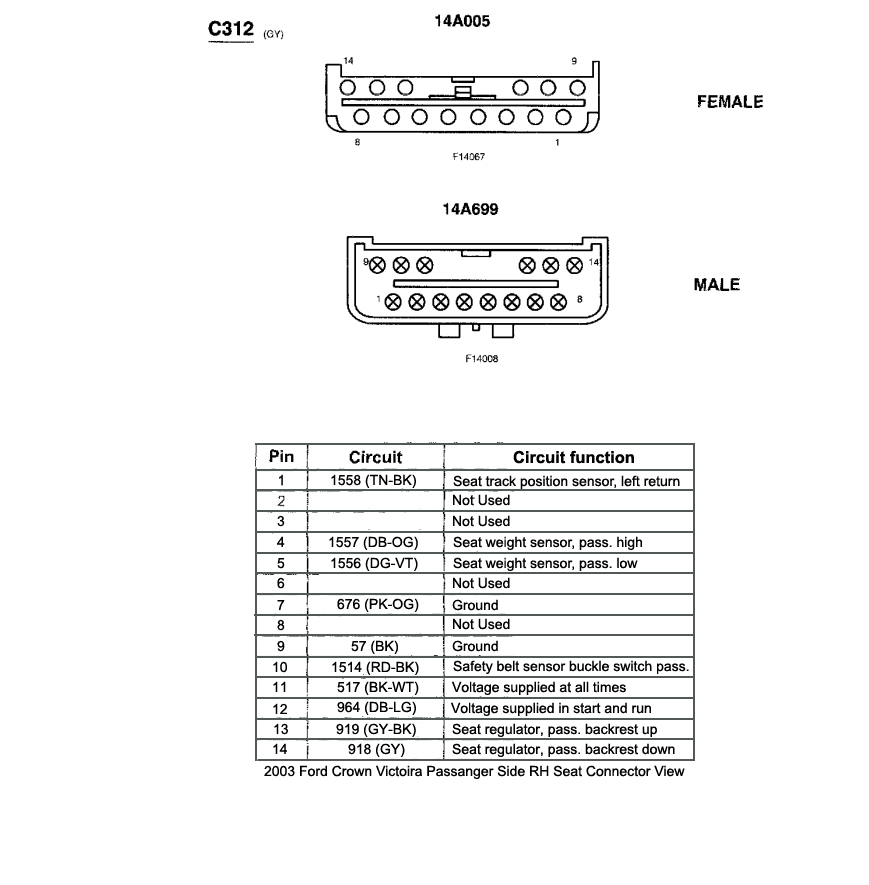

this is the 2003 RH seat custom connector view, you won't find this in the wiring diagrams manual published by Ford or anywhere else but here.

I will only be using pins 7, 11, 13 and 14 only from this harness.
