ABS Electric High Power Master Cylinder w/ Inline Accumulator Diagram #10-56-9

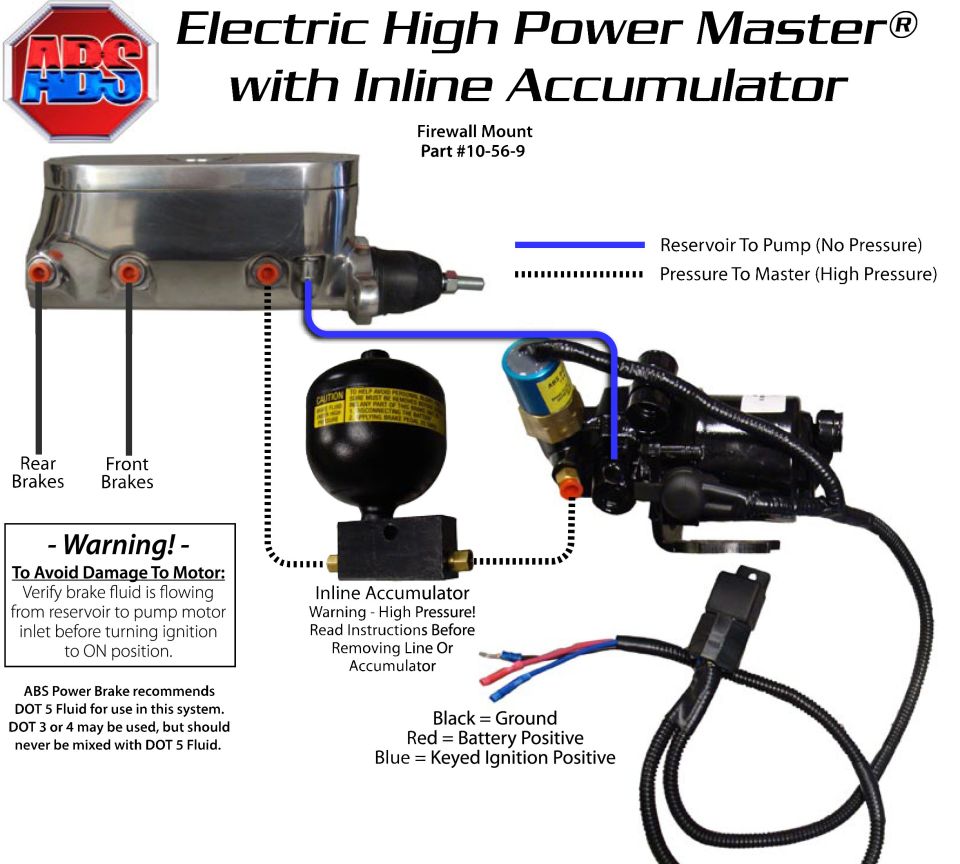

ADS electric high power master cylinder schematic showing brake fluid lines, inline accumulator and wiring color codes.
This document is a labeled installation/plumbing schematic for the ABS Power Brake 'Electric High Power Master with Inline Accumulator' system, firewall mount version, part #10-56-9. It shows a polished master cylinder with ports labeled for the rear brakes and front brakes, an inline accumulator (a black spherical high-pressure accumulator on a manifold block), and an electric pump/motor assembly with a pressure switch and wiring harness with relay. A legend distinguishes the fluid routing: a solid blue line indicates the low-pressure feed from the reservoir to the pump, while a dotted black line indicates the high-pressure line from the pump/accumulator to the master cylinder. Wiring is identified as Black = Ground, Red = Battery Positive, Blue = Keyed Ignition Positive. A prominent warning states that to avoid motor damage, brake fluid must be verified flowing from the reservoir to the pump motor inlet before turning the ignition ON. The manufacturer recommends DOT 5 brake fluid; DOT 3 or 4 may be used but must never be mixed with DOT 5. A high-pressure warning instructs reading the instructions before removing the line or accumulator. The document lets an installer identify component connections, hose routing, wiring hookup, and fluid requirements.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the part number for the firewall mount Electric High Power Master with Inline Accumulator?
- The document lists it as Part #10-56-9 (Firewall Mount).
- How do the three wires on the pump harness connect?
- Black = Ground, Red = Battery Positive, Blue = Keyed Ignition Positive.
- What brake fluid does ABS Power Brake recommend for this system?
- DOT 5 fluid is recommended. DOT 3 or 4 may be used, but should never be mixed with DOT 5 fluid.
- What must be done before turning the ignition ON to avoid damaging the motor?
- Verify brake fluid is flowing from the reservoir to the pump motor inlet before turning the ignition to the ON position.
- Which line in the diagram is high pressure and which is low pressure?
- The solid blue line is Reservoir To Pump (no pressure); the dotted black line is Pressure To Master (high pressure).
