Ford AX4S Transaxle Pressure Test Port Locations Diagram - Line, EPC, Direct Clutch

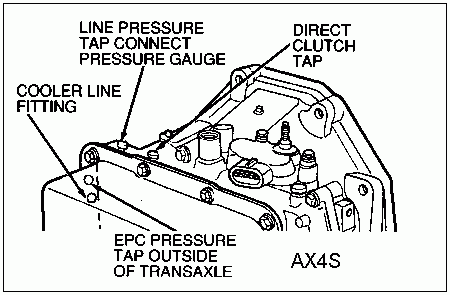

This document is a labeled line-art diagram of the Ford AX4S automatic transaxle, viewed from the case exterior, identifying the locations of its diagnostic pressure taps and fittings. Four callouts point to specific locations on the transaxle housing: the line pressure tap (where a pressure gauge is connected for testing), the direct clutch tap, the cooler line fitting, and the EPC (Electronic Pressure Control) pressure tap located on the outside of the transaxle. The transaxle is identified by the label "AX4S" in the lower right corner of the illustration. A reader can learn from this diagram exactly where to attach a pressure gauge to check main line pressure, where to test direct clutch apply pressure, where the transmission cooler line attaches to the case, and where EPC pressure can be measured externally. This type of illustration is typically used during transmission pressure diagnosis and troubleshooting procedures. The document itself contains no year, model, torque specification, or part number information — it is purely a port/tap location identification drawing for the AX4S transaxle.
