Which Ford vehicles does this parking brake diagram apply to?

The text states it applies to F-150 through F-350, E-150 through E-350, and Bronco; the illustrated assembly is specifically labeled for the E-150, F-150 and Bronco.

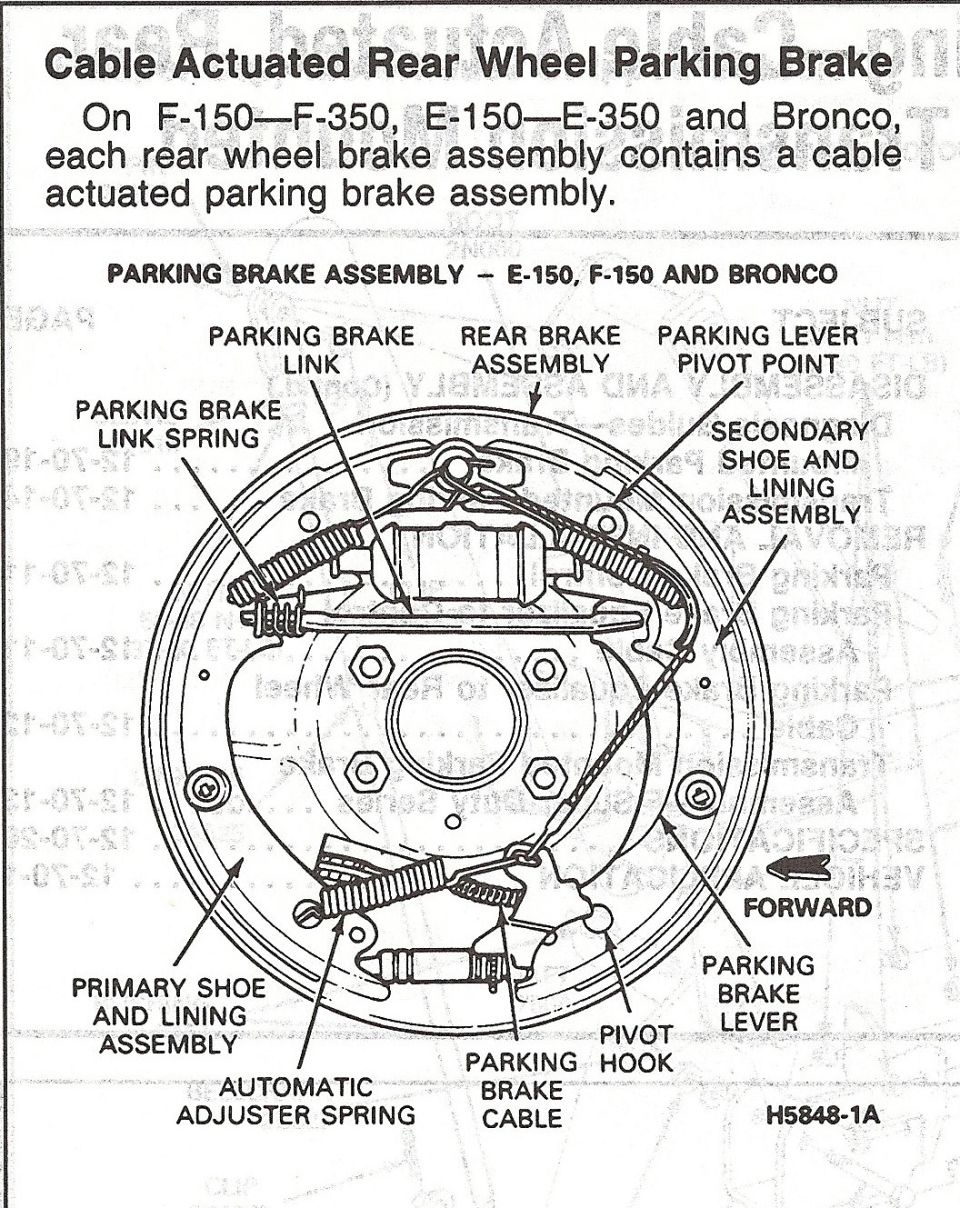

What components are labeled in the parking brake assembly diagram?

Parking brake link, parking brake link spring, rear brake assembly, parking lever pivot point, secondary shoe and lining assembly, primary shoe and lining assembly, automatic adjuster spring, parking brake cable, pivot hook, and parking brake lever.

Which shoe is toward the front of the vehicle in this diagram?

The diagram includes a FORWARD arrow; the primary shoe and lining assembly is on the forward side and the secondary shoe and lining assembly is toward the rear.

What figure or reference number identifies this illustration?

The illustration is identified by the number H5848-1A.
