What Timken bearing part numbers are used in the Dana 60 pinion?

The inner pinion bearing uses Timken HM803146 (cone) and HM803110 (cup); the outer pinion bearing uses Timken HM88510 (cup) and HM88542 (cone).

What are the carrier bearing part numbers for the Dana/Spicer 60/248 axle?

Timken 382-S is the carrier bearing cup and Timken 387-A is the carrier bearing cone, with shim kit 706378X for the carrier bearings.

What is the pinion oil seal part number for a Dana 60?

Part number 42449 is listed as the Oil Seal – Pinion.

How many ring gear bolts and differential cover bolts does the Dana 60 use?

The table lists 30266 ring gear bolts in a quantity of 12, and 34822 differential cover bolts in a quantity of 10.

Do I need to install the pinion slinger and baffle when rebuilding?

Per the footnote, the slinger (34643) and baffle (30982) should be installed only if the axle being rebuilt previously used one.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “BRONCONUT”/ Photo supermotors.net/registry/media/847543

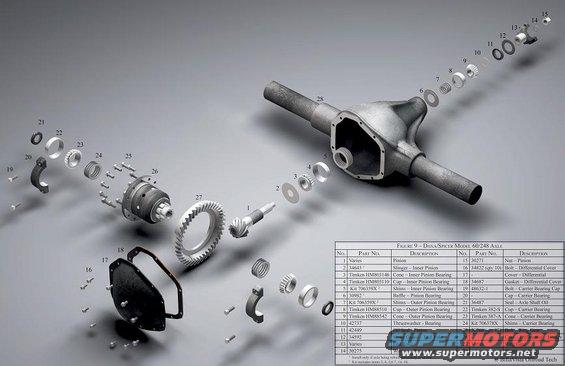

Dana 60 / Spicer 248 Axle Exploded View Diagram with Part Numbers & Bearings

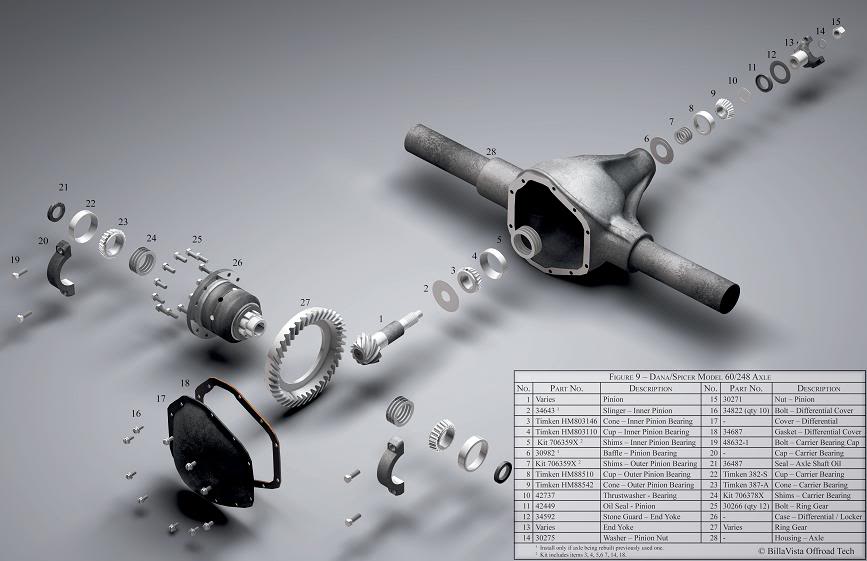

Dana Spicer Model 60/248 axle exploded view with numbered parts list

‹ ›

Exploded view of a Dana/Spicer Model 60/248 axle assembly with a numbered parts list and part numbers.

AI caption January 2011 · Photo 631 of 1095

This document is a labeled exploded-view illustration of a Dana/Spicer Model 60 (also identified as 248) axle assembly, titled 'Figure 9 – Dana/Spicer Model 60/248 Axle' and credited to BillaVista Offroad Tech. A detailed 3D rendering shows all 28 numbered components of the axle disassembled along the pinion and carrier axes, including the pinion gear, inner and outer pinion bearings (cones and cups), shim kits, baffle, slinger, thrustwasher, pinion oil seal, stone guard, end yoke, pinion nut and washer, differential cover and gasket with bolts, carrier bearing caps and bolts, axle shaft oil seals, carrier bearing cups and cones, carrier bearing shims, ring gear bolts, differential/locker case, ring gear, and the axle housing itself. An accompanying parts table lists each callout number with its part number (including Timken bearing numbers HM803146, HM803110, HM88510, HM88542, 382-S, 387-A and shim kit numbers 706359X and 706378X) and description. Footnotes indicate the slinger and baffle should only be installed if the axle previously used them, and that the shim kit includes multiple listed items. This is a useful reference for anyone rebuilding a Dana 60 differential and ordering bearings, seals, shims, and hardware.
