Dana 60 Front Axle Exploded View Diagram - Trac-Lok Differential & Kingpin Parts

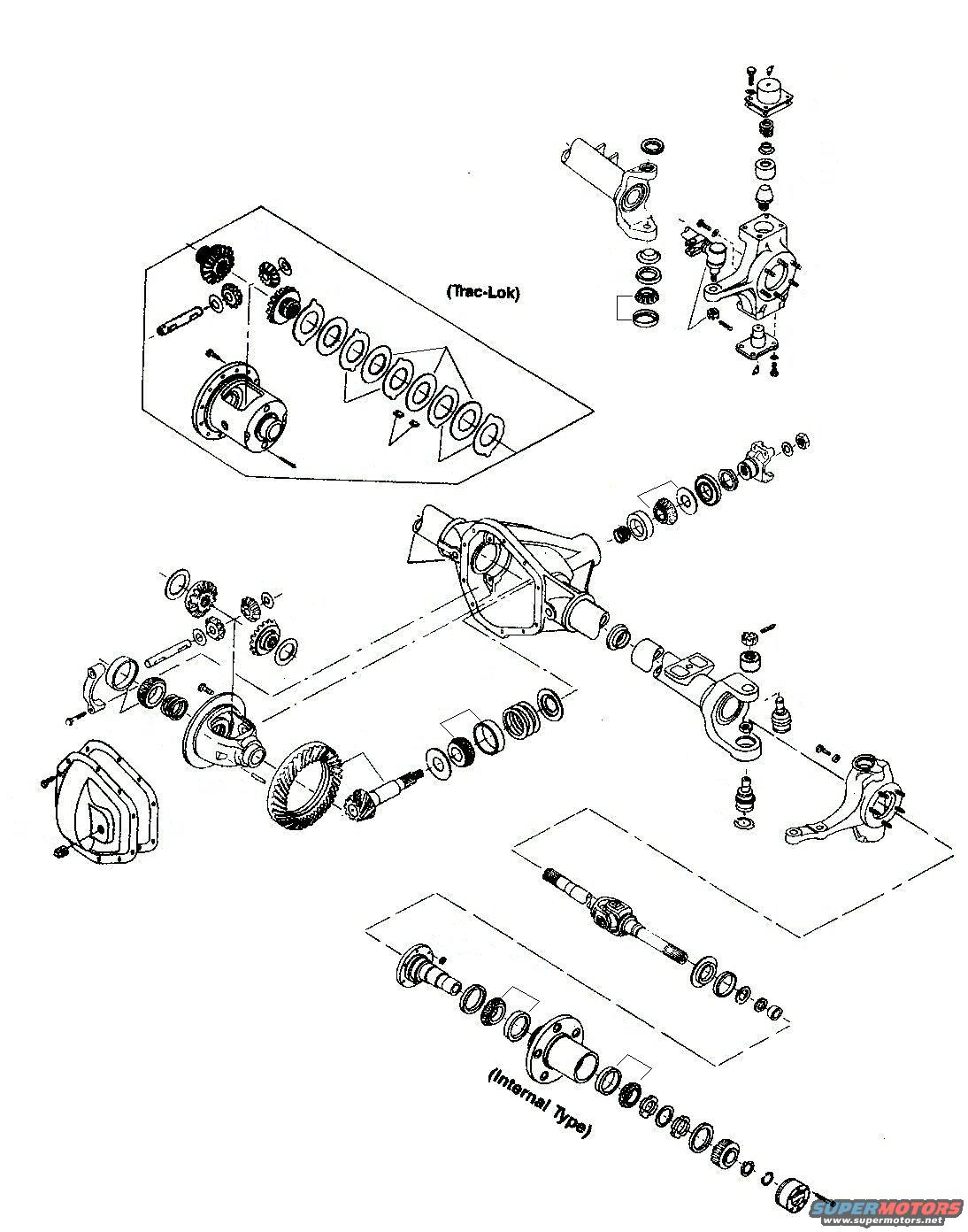

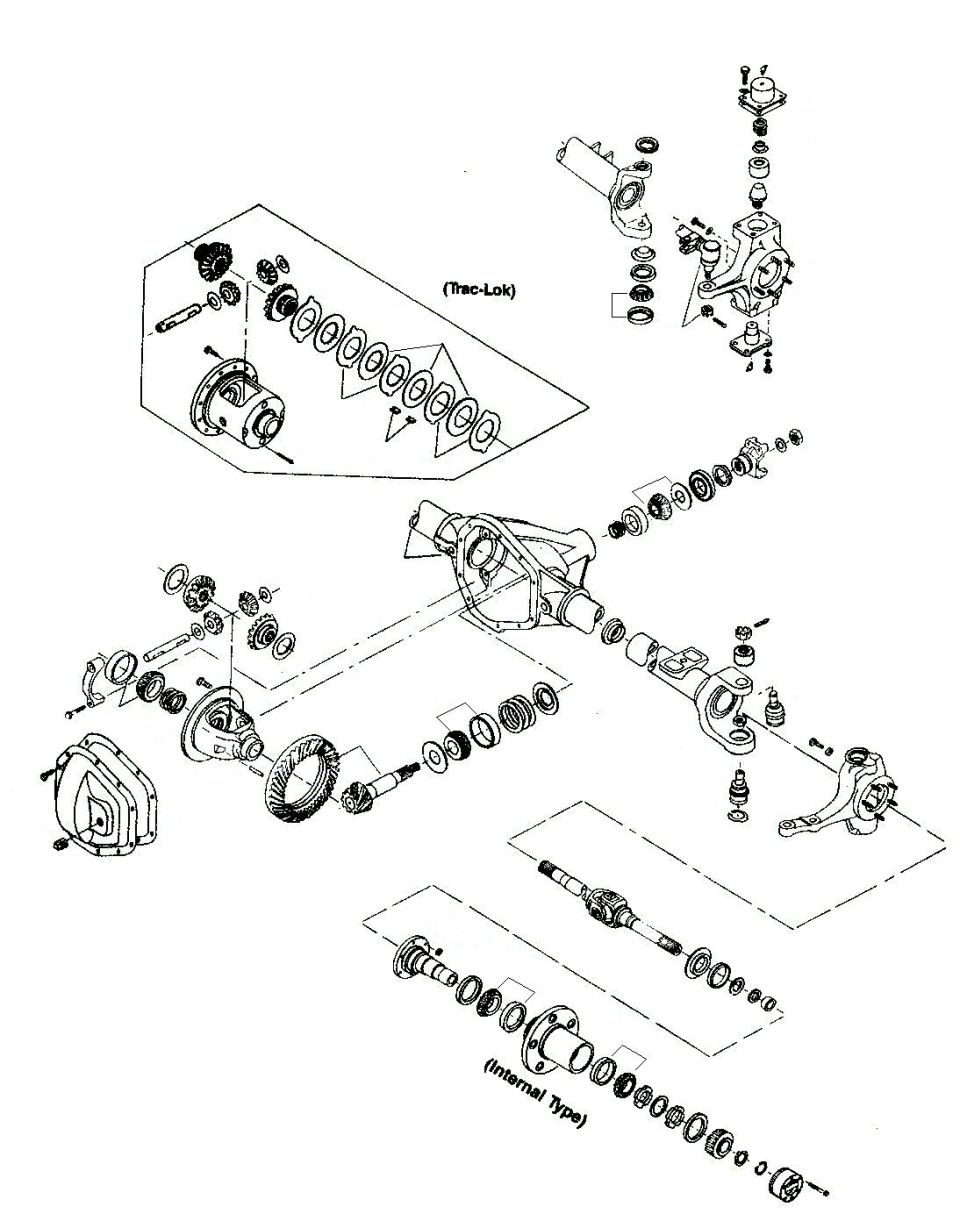

This document is a black-and-white exploded parts diagram of a heavy-duty front drive axle assembly, uploaded to a 1995 Ford Bronco gallery under the filename "Dana60_explodededview_3.jpg," suggesting it depicts a Dana 60 front axle. The drawing shows the complete axle disassembled into its individual components. An upper-left inset labeled "(Trac-Lok)" details the limited-slip differential, including the carrier case, side gears, pinion (spider) gears, cross shaft, and the stack of clutch plates and friction discs. The main center portion shows the axle housing, differential cover and gasket, the standard differential internals, ring and pinion gears, pinion bearings and shims, pinion seal, and driveshaft yoke with nut. The right side of the diagram illustrates the steering knuckle and kingpin components — bearing caps, springs, seals, tapered bearings, and hardware — for both sides of the axle. Lower insets show the axle shaft with U-joint and stub shaft, plus the spindle, wheel hub, wheel bearings, seals, and an internal-type locking hub assembly, labeled "(Internal Type)." The diagram contains no callout numbers, part numbers, torque specifications, or legend text; it serves purely as a visual reference for component identification, assembly order, and orientation when rebuilding the axle.
