What is the connector identification for the 1995 Bronco E4OD transmission harness connector?

The connector is identified as C1048, a gray 12-pin connector.

Which pins on the E4OD C1048 connector are the shift solenoid outputs?

Pin 2, circuit 315 (P/O), is the Shift Solenoid #2 Output, and pin 3, circuit 237 (O/Y), is the Shift Solenoid #1 Output.

Which wire controls the torque converter clutch on the 1995 Bronco E4OD?

Pin 4, circuit 480 (P/Y), is the Torque Converter Clutch Control Solenoid.

Which pins carry the transmission fluid temperature sensor signal?

Pin 7, circuit 923 (O/BK), is the Transmission Fluid Temperature Sensor, and pin 8, circuit 359 (GY/R), is the Sensor Signal Return.

Which pins on the E4OD connector are not used?

Pins 6, 9, and 10 are listed as NOT USED.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/863609

1995 Ford Bronco E4OD Transmission Connector C1048 Pinout & Wire Colors

E4OD transmission C1048 connector pinout and circuit chart, section 30-3

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1995 Ford Bronco TR Sensor (MLPS) Testing - E4OD/4R70W Pinout & Ohm Values

1995 Ford Bronco E4OD Transmission Wiring Diagram - Solenoids, PCM Pins (30-2)

1990 Ford Bronco E4OD Transmission Wiring Schematic - EEC Pins & Wire Colors

1995 Ford Bronco E4OD Transmission Connector C1048 Pinout & Wire Colors

Ford E4OD Transmission Connector Pinout Diagram - Pin & Wire Color Chart

1990 Ford Bronco Horn & Cigar Lighter Wiring Diagram 44-1 (With/Without Cruise)

1990 Ford Bronco 5.0L Grounds G103 Wiring Diagram - EEC & HEGO Ground Circuit

Trailer Wiring Color Code Chart - 4, 5, 6 & 7-Way Connector Wire Colors & Gauges

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

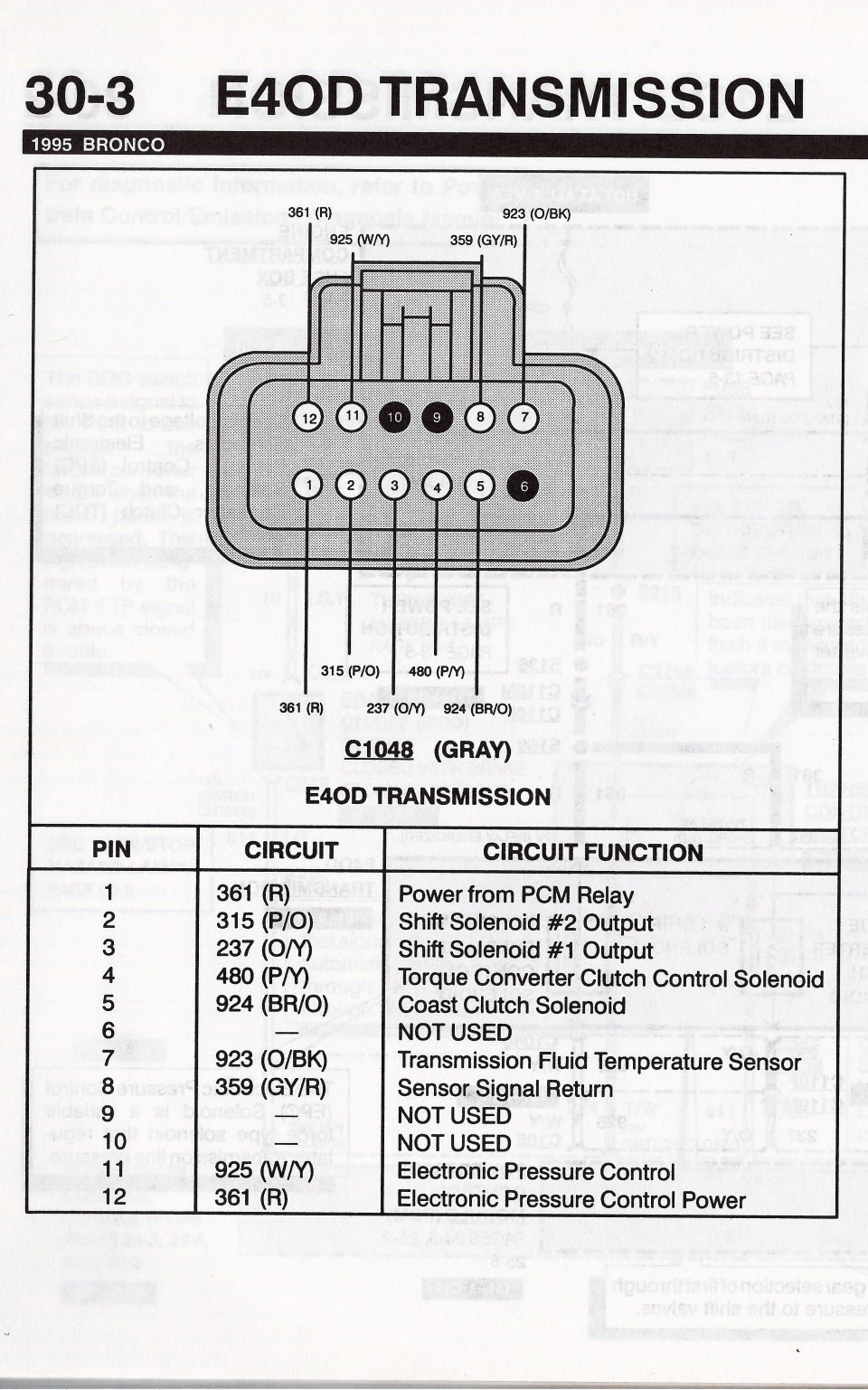

E4OD transmission connector C1048 (gray) 12-pin pinout: power from PCM relay, shift solenoids, TCC, coast clutch, fluid temp sensor, EPC with circuit numbers and wire colors.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption April 2011 · Photo 677 of 1787

This document is page 30-3 of a Ford wiring reference covering the E4OD automatic transmission in the 1995 Ford Bronco. It shows the 12-pin transmission connector, identified as C1048 (gray), with a face-view diagram of the connector cavity layout: pins 12 through 7 on the top row and pins 1 through 6 on the bottom row, with pins 6, 9, and 10 shown blackened (not used). Wire circuit numbers and color codes are called out on the diagram (361 R, 925 W/Y, 923 O/BK, 359 GY/R, 315 P/O, 480 P/Y, 237 O/Y, 924 BR/O). A pinout table lists each pin's circuit number, wire color, and function: power from the PCM relay (pins 1 and 12), Shift Solenoid #2 and #1 outputs (pins 2 and 3), Torque Converter Clutch Control Solenoid (pin 4), Coast Clutch Solenoid (pin 5), Transmission Fluid Temperature Sensor (pin 7), Sensor Signal Return (pin 8), and Electronic Pressure Control (pin 11). A reader can use this page to identify wires at the E4OD transmission harness connector for diagnosis of shift solenoids, torque converter clutch, EPC, and transmission fluid temperature sensor circuits.

This document covers 1995, which may differ from this 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the connector identification for the 1995 Bronco E4OD transmission harness connector?: The connector is identified as C1048, a gray 12-pin connector.
Which pins on the E4OD C1048 connector are the shift solenoid outputs?: Pin 2, circuit 315 (P/O), is the Shift Solenoid #2 Output, and pin 3, circuit 237 (O/Y), is the Shift Solenoid #1 Output.
Which wire controls the torque converter clutch on the 1995 Bronco E4OD?: Pin 4, circuit 480 (P/Y), is the Torque Converter Clutch Control Solenoid.
Which pins carry the transmission fluid temperature sensor signal?: Pin 7, circuit 923 (O/BK), is the Transmission Fluid Temperature Sensor, and pin 8, circuit 359 (GY/R), is the Sensor Signal Return.
Which pins on the E4OD connector are not used?: Pins 6, 9, and 10 are listed as NOT USED.
