What fuse protects the windshield wiper circuit on this diagram?

The circuit is fed from the fuse panel through a 30A circuit breaker (c.b.) that is hot in ACCY or RUN, on circuit 65 DG (dark green).

What wire colors run from the multi-function switch to the Wiper Control Module?

Circuit 590 DB/W (dark blue/white) to pin 9, circuit 589 O (orange) to pin 1, and circuit 993 BR/W (brown/white) to pin 7 of the WCM.

What wire powers the windshield washer pump?

Circuit 941 BK/W (black/white) from pin 4 of the Wiper Control Module powers the washer pump, with 57 BK (black) as the ground.

What wires connect the Wiper Control Module to the wiper motor?

Circuits 28 BK/PK (pin 13), 61 Y/R (pin 10), 58 W (pin 8), and 56 DB/O (pin 14) run from the WCM to the windshield wiper motor, which contains a run/park switch.

Where can I find more details of this wiper circuit?

The diagram directs readers to see EVTM Cell 81 for more details of this circuit.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877829

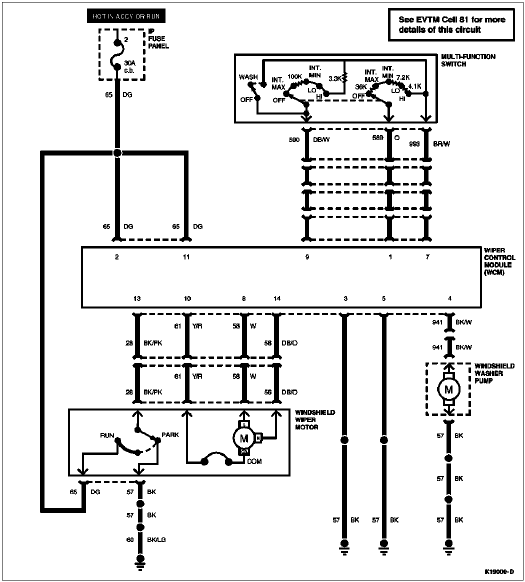

1996 Ford Bronco Windshield Wiper & Washer Wiring Diagram - WCM Pinout

Wiring diagram of windshield wiper and washer circuit with control module, motor and pump

‹ ›

Wiring diagram of the windshield wiper/washer circuit showing the wiper control module, multi-function switch, wiper motor and washer pump.

AI caption July 2011 · Photo 119 of 224

This document is a windshield wiper and washer wiring diagram, uploaded for a 1996 Ford Bronco. It shows the complete wiper/washer circuit beginning at the fuse panel with a 30A circuit breaker (hot in ACCY or RUN), feeding circuit 65 (dark green) to the Wiper Control Module (WCM) and the multi-function switch. The multi-function switch section shows wash, off, intermittent min/max, low, and high positions with internal resistance values (100K, 3.3K, 36K, 7.2K, 4.1K ohms) and outputs circuits 590 DB/W, 589 O, and 993 BR/W to WCM pins 9, 1, and 7. WCM connector pins are labeled (2, 11, 9, 1, 7 on top; 13, 10, 8, 14, 3, 5, 4 on bottom). Outputs to the windshield wiper motor include 28 BK/PK, 61 Y/R, 58 W, and 56 DB/O, with the motor's run/park switch and common terminal shown. Circuit 941 BK/W powers the windshield washer pump, and circuit 57 BK provides grounds throughout. A note refers readers to EVTM Cell 81 for more details. The diagram lets a reader trace wire colors, circuit numbers, and connector pin positions for diagnosing wiper and washer problems.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse protects the windshield wiper circuit on this diagram?: The circuit is fed from the fuse panel through a 30A circuit breaker (c.b.) that is hot in ACCY or RUN, on circuit 65 DG (dark green).
What wire colors run from the multi-function switch to the Wiper Control Module?: Circuit 590 DB/W (dark blue/white) to pin 9, circuit 589 O (orange) to pin 1, and circuit 993 BR/W (brown/white) to pin 7 of the WCM.
What wire powers the windshield washer pump?: Circuit 941 BK/W (black/white) from pin 4 of the Wiper Control Module powers the washer pump, with 57 BK (black) as the ground.
What wires connect the Wiper Control Module to the wiper motor?: Circuits 28 BK/PK (pin 13), 61 Y/R (pin 10), 58 W (pin 8), and 56 DB/O (pin 14) run from the WCM to the windshield wiper motor, which contains a run/park switch.
Where can I find more details of this wiper circuit?: The diagram directs readers to see EVTM Cell 81 for more details of this circuit.
