What wire colors run to the tailgate power window motor?

A YEL/RED wire runs from the tailgate window switch to the motor, and a RED/YEL wire reaches the motor through the tailgate latch switch (fed by TAN/BLK from the tailgate window switch).

What does the tailgate latch switch do in this circuit?

The tailgate latch switch is open when the tailgate is not fully closed, interrupting the TAN/BLK to RED/YEL path to the tailgate power window motor.

Where does the master tailgate window switch get its ground?

The BLK wires from the master tailgate window switch (terminals 5 and 1) go to ground point G200.

What wires connect the master switch to the key-operated tailgate switch?

PNK/LT GRN (from terminal 4) and PNK/LT BLU (from terminal 2) wires connect the master tailgate window switch to the key-operated tailgate window switch.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/966853

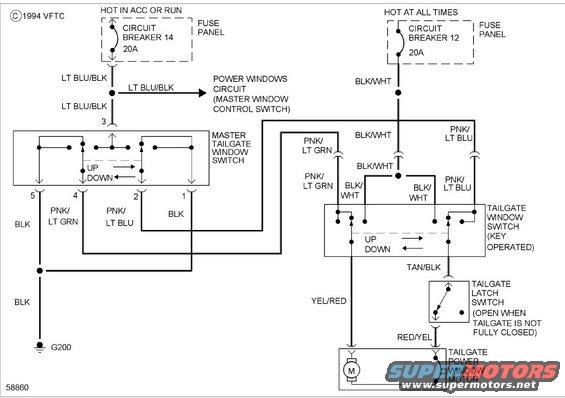

1994 Ford Bronco Tailgate Power Window Wiring Diagram - Wire Colors & Breakers

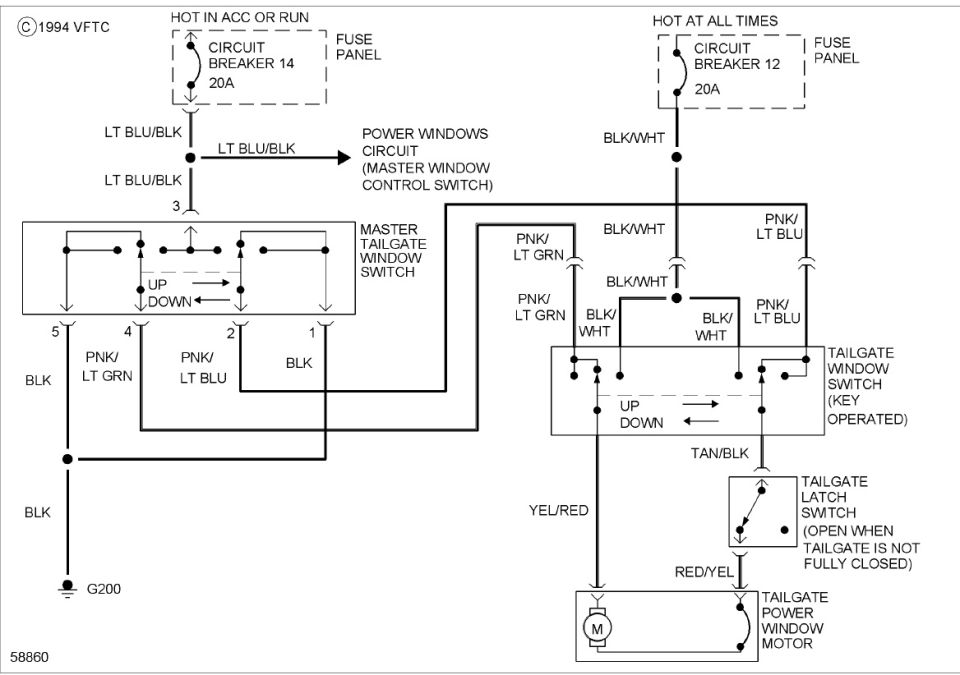

1994 power windows and tailgate window motor wiring diagram with fuse panel and wire colors

‹ ›

1994 VFTC power-window/tailgate-window circuit: 20A circuit breakers 12 and 14, master switch, key-operated tailgate window switch, tailgate latch switch and power window motor, ground G200.

AI caption February 2013 · Photo 610 of 3001

This document is a 1994 VFTC-copyrighted wiring diagram (drawing number 58860) for a tailgate power window circuit, uploaded for a 1994 Ford Bronco. It shows two power sources at the fuse panel: Circuit Breaker 14 (20A, hot in ACC or RUN) feeding the master tailgate window switch via LT BLU/BLK wires (with a branch to the power windows circuit / master window control switch), and Circuit Breaker 12 (20A, hot at all times) feeding the key-operated tailgate window switch via BLK/WHT wires. The master tailgate window switch (terminals 1-5, with UP/DOWN positions) connects through PNK/LT GRN and PNK/LT BLU wires to the key-operated tailgate window switch, and grounds through BLK wires at ground point G200. From the tailgate window switch, a YEL/RED wire runs to the tailgate power window motor, and a TAN/BLK wire runs through the tailgate latch switch (open when the tailgate is not fully closed), which continues as RED/YEL to the motor. A reader can learn the complete circuit path, wire colors, switch terminal numbers, breaker locations and amperages, and the safety interlock behavior of the tailgate latch switch for diagnosing tailgate window problems.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What circuit breakers protect the Bronco tailgate window circuit?: Circuit Breaker 14 (20A, hot in ACC or RUN) feeds the master tailgate window switch, and Circuit Breaker 12 (20A, hot at all times) feeds the key-operated tailgate window switch. Both are in the fuse panel.
What wire colors run to the tailgate power window motor?: A YEL/RED wire runs from the tailgate window switch to the motor, and a RED/YEL wire reaches the motor through the tailgate latch switch (fed by TAN/BLK from the tailgate window switch).
What does the tailgate latch switch do in this circuit?: The tailgate latch switch is open when the tailgate is not fully closed, interrupting the TAN/BLK to RED/YEL path to the tailgate power window motor.
Where does the master tailgate window switch get its ground?: The BLK wires from the master tailgate window switch (terminals 5 and 1) go to ground point G200.
What wires connect the master switch to the key-operated tailgate switch?: PNK/LT GRN (from terminal 4) and PNK/LT BLU (from terminal 2) wires connect the master tailgate window switch to the key-operated tailgate window switch.
