Ford 5.0L Secondary Air (Thermactor) System Diagram - 1990 Bronco AIRB/AIRD

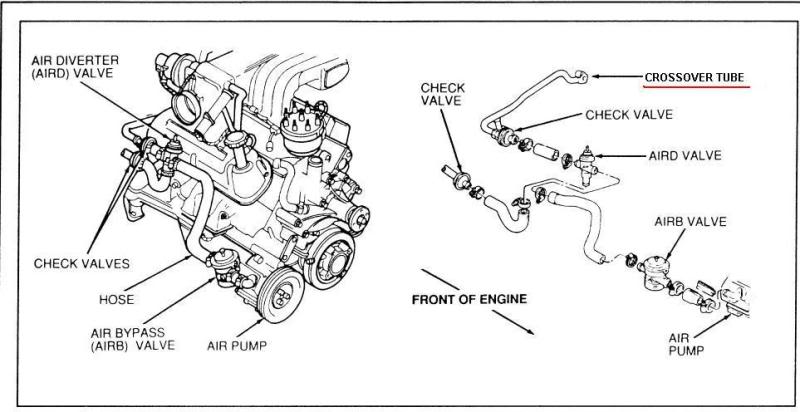

Thermactor air system diagram with AIRD, AIRB valves, check valves and crossover tube
Thermactor air system diagram with AIRD, AIRB valves, check valves and crossover tubeOriginal file
Thermactor air system diagram with AIRD, AIRB valves, check valves and crossover tube

Reference · 1987-1991 BroncoAll 111 schematics

1990 Ford Bronco 4.9L MT Thermactor Air Pump & Check Valve Diagram (A13526-A) 1990 Ford Bronco 4.9L Thermactor Air System Diagram - Air Pump, Bypass & Check Valve 1990 Ford Bronco 5.8L Thermactor Air Pump & Bypass Valve Location Diagram Ford 5.0L Secondary Air (Thermactor) System Diagram - 1990 Bronco AIRB/AIRD Ford 5.8L Secondary Air System Diagram - AIRB/AIRD Valve & Air Pump Locations 5-Pin Automotive Relay Pinout Diagram - Terminals 30, 85, 86, 87, 87a 5-Pin Automotive Relay Wiring Diagram - Pinout 30 85 86 87 87a Explained 5-Pin Automotive Relay Pinout Diagram: Terminals 30, 85, 86, 87, 87a Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Integral Gear Power Steering Fluid Flow Diagram - Ford Bronco Gear Box Schematic 111schematics1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Secondary air schematic showing the air diverter and bypass valves, check valves, crossover tube and air pump routing at the front of the engine.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 1543 of 1787

This document is a two-part line-drawing schematic of the Thermactor secondary air injection system on a Ford V8 engine (filed by the uploader as the 5.0L system for a 1990 Ford Bronco). The left illustration shows the components installed on the engine as viewed from the front: the Air Diverter (AIRD) valve mounted high on the engine, check valves, connecting hose, the Air Bypass (AIRB) valve, and the belt-driven air pump at the lower front of the engine. The right illustration is an exploded/routing view of the same system removed from the engine, labeling the crossover tube (highlighted with a red underline), two check valves, the AIRD valve, the AIRB valve, and the air pump, with an arrow indicating the front of the engine for orientation. A reader can learn the identity, relative location, and hose/tube routing order of each secondary air component: air flows from the air pump through the AIRB (bypass) valve, then to the AIRD (diverter) valve, through the check valves, and into the crossover tube feeding the exhaust. The document contains no text stating year, model, engine displacement, part numbers, or torque specifications, identification of components is by callout labels only.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What components make up the secondary air (Thermactor) system shown in this diagram?
The diagram labels an Air Diverter (AIRD) valve, an Air Bypass (AIRB) valve, check valves, a connecting hose, a crossover tube, and the air pump.
Where is the air pump located on the engine?
The left illustration shows the air pump mounted low at the front of the engine, driven off the front accessory area, with the AIR BYPASS (AIRB) valve nearby.
What is the crossover tube in this system?
The right illustration shows the crossover tube as the tube at the top of the assembly connecting the two check valves, routing secondary air across the engine.
How many check valves does the system use?
The diagram shows two check valves, the right-side exploded view labels a check valve on each side of the crossover tube, and the left view is labeled 'CHECK VALVES' (plural).
What is the flow order of the secondary air components?
Per the exploded view, air goes from the air pump to the AIRB (bypass) valve, then to the AIRD (diverter) valve, through the check valves, and into the crossover tube.
