E4OD Transmission

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

23 photos
← Back to this vehicle

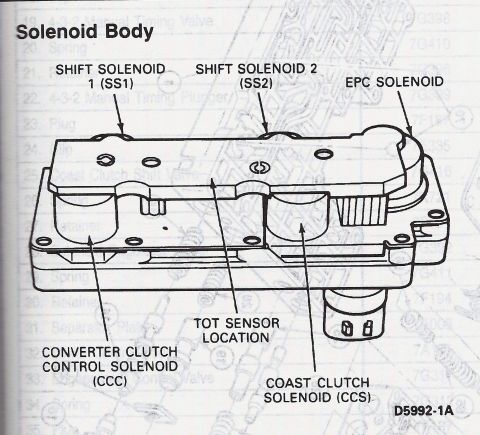

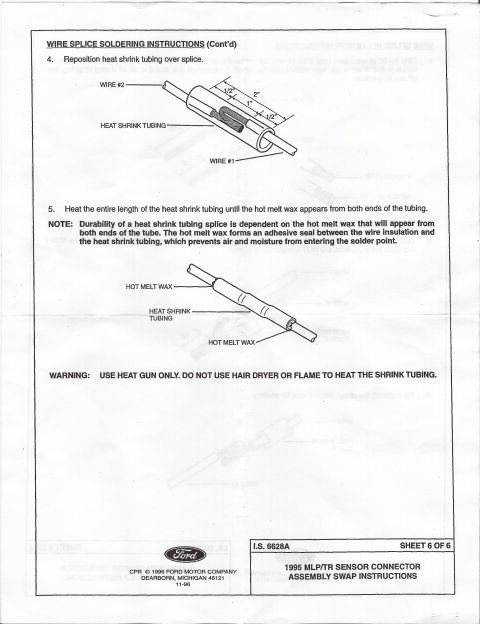

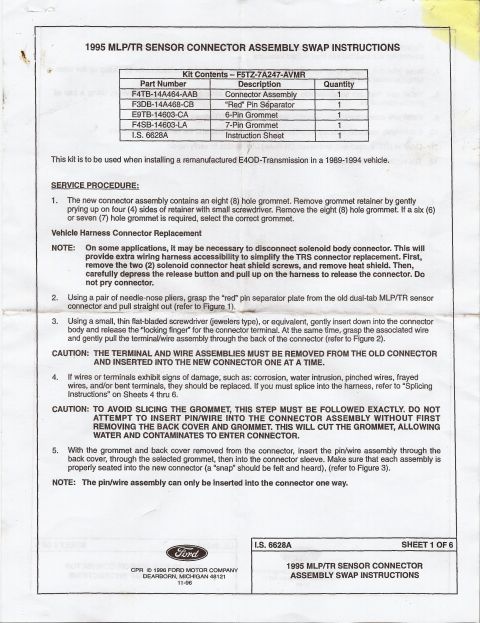

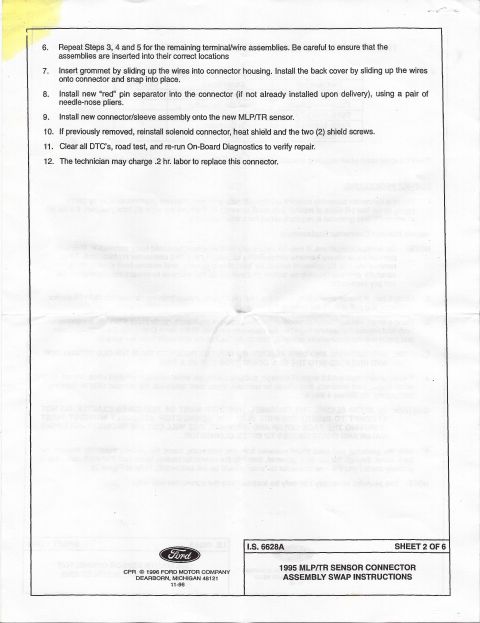

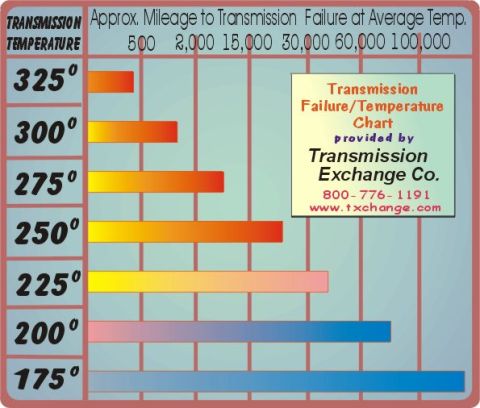

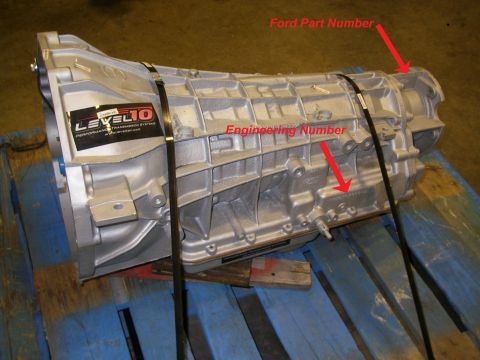

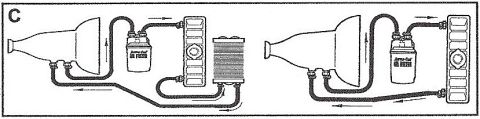

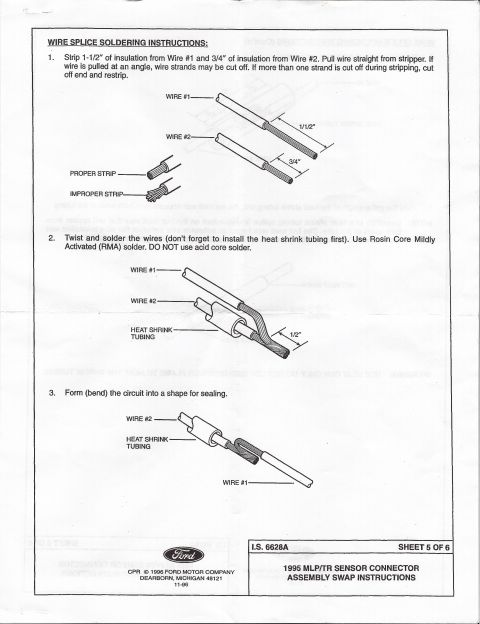

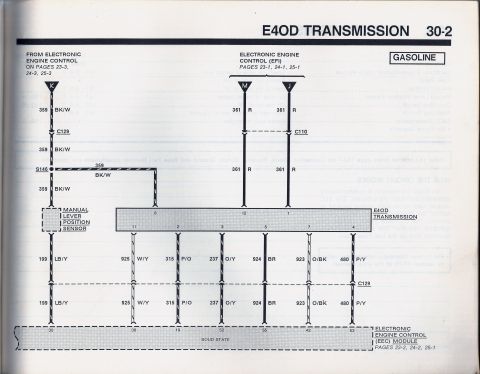

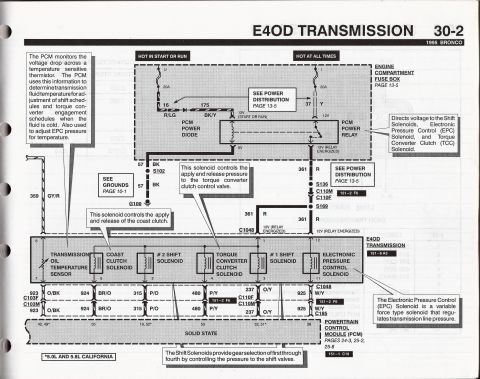

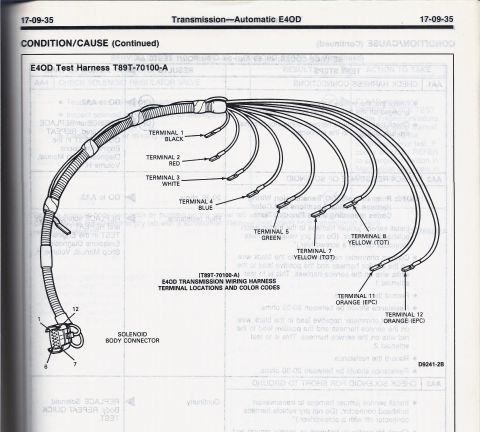

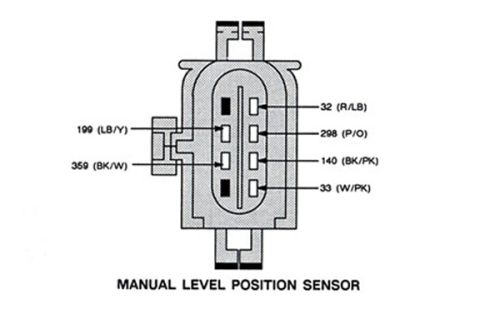

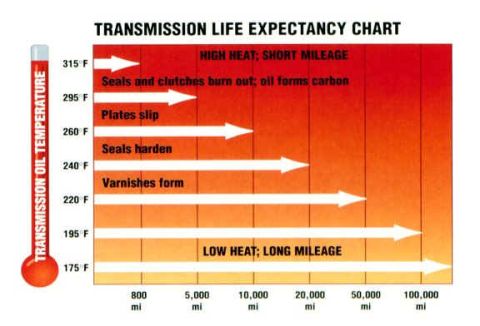

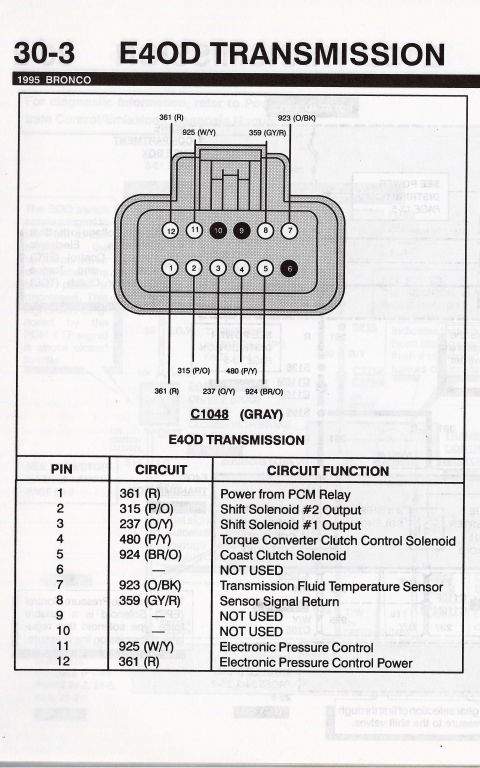

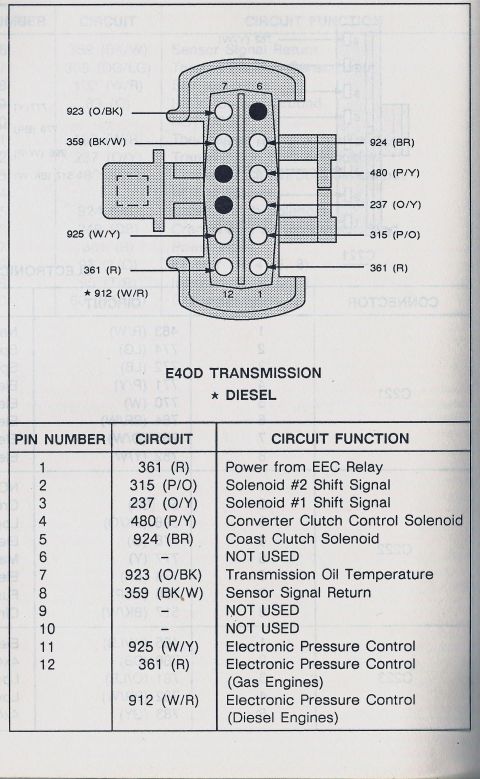

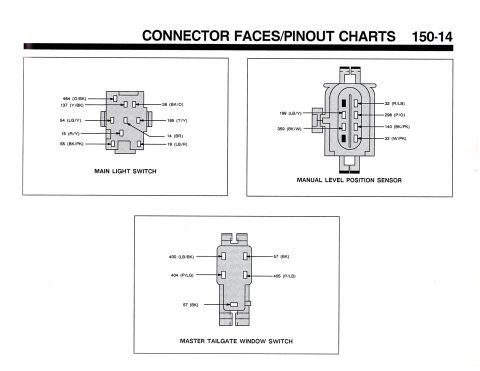

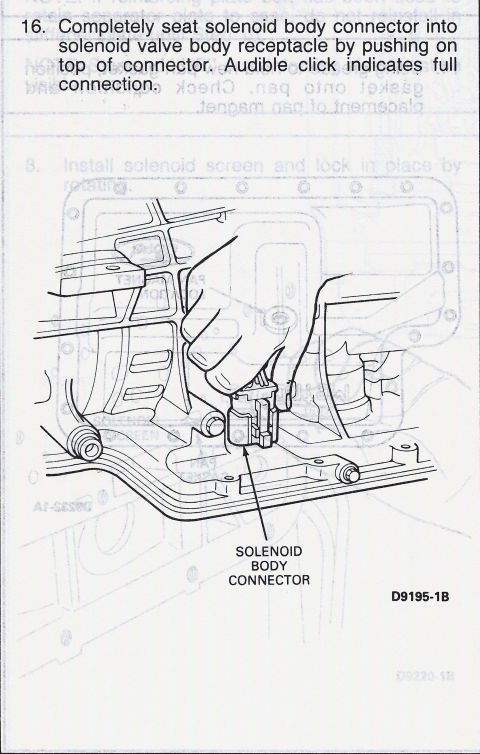

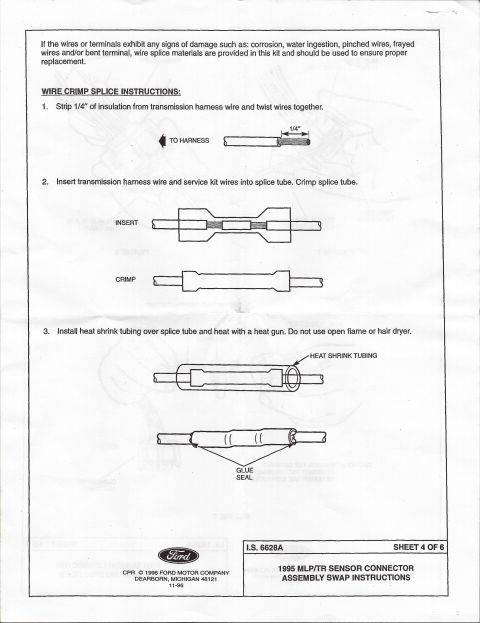

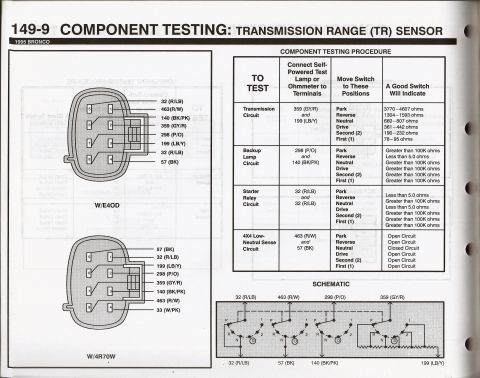

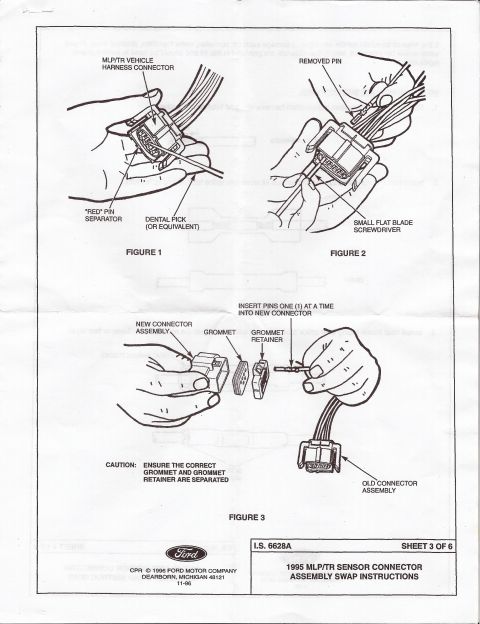

1990 Ford Bronco - Level 10 rebuilt automatic transmission strapped to a blue pallet; red arrows label the Ford part number and engineering number. 1990 Ford Bronco - This diagram illustrates the flow of transmission fluid through a cooler and filter system. 1990 Ford Bronco - Schematic showing engine oil filter and oil cooler hose routing with directional flow arrows. 1990 Ford Bronco - Infographic bar chart relating transmission fluid temperature to approximate mileage before failure. 1990 Ford Bronco - Infographic chart relating transmission temperature to approximate mileage to failure, branded Transmission Exchange Co. 1990 Ford Bronco - Infographic life-expectancy chart relating transmission oil temperature to mileage and listing failure effects. 1990 Ford Bronco - Ford service sheet 1 for the 1995 MLP/TR sensor connector swap (kit F5TZ-7A247-AVMR) when fitting a reman E4OD transmission into 1989-1994… 1990 Ford Bronco - Scanned Ford service document (I.S. 6628A, Sheet 2 of 6) titled '1995 MLP/TR Sensor Connector Assembly Swap Instructions,' showing numbered… 1990 Ford Bronco - Sheet 3 of the Ford 1995 MLP/TR sensor connector swap (I.S. 6628A); illustrated figures show removing the red pin separator with a dental p… 1990 Ford Bronco - Sheet 4 of the Ford 1995 MLP/TR connector swap (I.S. 6628A); wire crimp-splice procedure: strip 1/4 inch, twist, crimp splice tube, then ap… 1990 Ford Bronco - Scanned Ford service document (I.S. 6628A, Sheet 5 of 6) titled '1995 MLP/TR Sensor Connector Assembly Swap Instructions' showing wire spli… 1990 Ford Bronco - Scanned Ford service document (I.S. 6628A, Sheet 6 of 6) titled '1995 MLP/TR Sensor Connector Assembly Swap Instructions,' showing steps 4-… 1990 Ford Bronco - Solenoid body diagram identifying shift solenoids, EPC solenoid, converter and coast clutch control solenoids, and TOT sensor location (D59… 1990 Ford Bronco - Service procedure step 16 showing how to seat the solenoid body connector into the valve body receptacle until an audible click (D9195-1B). 1990 Ford Bronco - Ford shop-manual diagram 17-09-35 of the E4OD transmission solenoid-body connector showing test harness T89T-70100-A terminal locations and… 1990 Ford Bronco - E4OD transmission connector pinout for diesel applications: 12-pin chart with shift solenoids, TCC, coast clutch, oil temp sensor, and sepa… 1990 Ford Bronco - E4OD transmission connector C1048 (gray) 12-pin pinout: power from PCM relay, shift solenoids, TCC, coast clutch, fluid temp sensor, EPC wi… 1990 Ford Bronco - E4OD transmission wiring diagram (30-2, gasoline) showing EEC module connections, manual lever position sensor, and color-coded solenoid ci… 1990 Ford Bronco - E4OD automatic transmission wiring schematic showing PCM control of the transmission oil temperature sensor, coast clutch, shift solenoids… 1990 Ford Bronco - Transmission Range (TR) sensor component testing: ohmmeter resistance values per shift position for W/E4OD and W/4R70W, with circuit number… 1990 Ford Bronco - Specification table listing min/max line-pressure values for each transmission gear position in a forward shift pattern. 1990 Ford Bronco - Connector face/pinout chart (page 150-14) for the Ford main light switch, manual level position sensor, and master tailgate window switch w… 1990 Ford Bronco - Wiring diagram of the manual level position sensor connector showing terminal circuit numbers and color-coded wires.
