Where is the TOT sensor located on the E4OD solenoid body?

The diagram shows the TOT sensor location near the center of the solenoid body, between Shift Solenoid 1 and Shift Solenoid 2, indicated by the 'TOT SENSOR LOCATION' callout.

Which solenoids are mounted on the E4OD solenoid body?

The diagram labels six components: Shift Solenoid 1 (SS1), Shift Solenoid 2 (SS2), the EPC Solenoid, the Converter Clutch Control Solenoid (CCC), the Coast Clutch Solenoid (CCS), and the TOT sensor location.

Where is the EPC solenoid on the solenoid body?

Per the diagram, the EPC solenoid is at the far end of the solenoid body (right side in the illustration), opposite Shift Solenoid 1.

How can I tell the Converter Clutch Control solenoid from the Coast Clutch solenoid?

In the diagram, the Converter Clutch Control (CCC) solenoid is on the left side of the body below Shift Solenoid 1, while the Coast Clutch Solenoid (CCS) sits on the right side near the EPC solenoid, below Shift Solenoid 2.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/859615

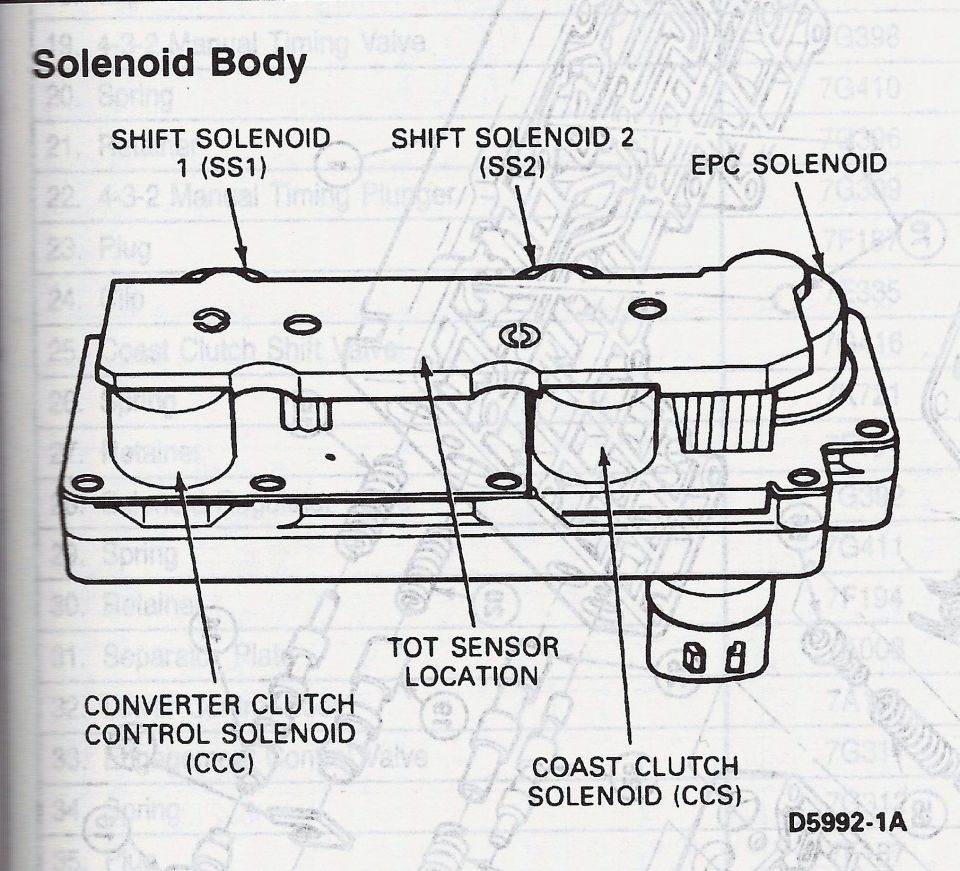

Ford E4OD Solenoid Body Diagram - SS1, SS2, EPC, CCC, CCS & TOT Sensor Locations

Labeled diagram of transmission solenoid body showing SS1, SS2, EPC, CCC, CCS solenoids and TOT sensor location

‹ ›

Solenoid body diagram identifying shift solenoids, EPC solenoid, converter and coast clutch control solenoids, and TOT sensor location (D5992-1A).

AI caption March 2011 · Photo 640 of 1799

This document is a labeled line-art illustration of the solenoid body (solenoid pack) used in a Ford E4OD automatic transmission, scanned from a service reference. The figure, identified as D5992-1A, shows the assembly from above and calls out the location of each electrical component mounted on the body: Shift Solenoid 1 (SS1), Shift Solenoid 2 (SS2), the EPC (Electronic Pressure Control) solenoid, the Converter Clutch Control (CCC) solenoid, the Coast Clutch Solenoid (CCS), and the mounting location of the TOT (Transmission Oil Temperature) sensor. A reader can use this diagram to identify which solenoid is which when diagnosing shift problems, testing individual solenoids, or replacing the solenoid body assembly. Faint bleed-through from the reverse side of the page shows part of a numbered valve body parts legend (items 19–34, e.g., 4-3-2 Manual Timing Valve 7G398, Spring 7G410, 4-3-2 Manual Timing Plunger 7G399, Coast Clutch Shift Valve, Spring 7G411, Retainer 7F194), which suggests the page comes from an exploded valve body parts section of a Ford transmission manual. The scan itself carries no explicit year or model designation, but it was filed with 1990–1995 Ford Bronco E4OD documentation.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the TOT sensor located on the E4OD solenoid body?: The diagram shows the TOT sensor location near the center of the solenoid body, between Shift Solenoid 1 and Shift Solenoid 2, indicated by the 'TOT SENSOR LOCATION' callout.
Which solenoids are mounted on the E4OD solenoid body?: The diagram labels six components: Shift Solenoid 1 (SS1), Shift Solenoid 2 (SS2), the EPC Solenoid, the Converter Clutch Control Solenoid (CCC), the Coast Clutch Solenoid (CCS), and the TOT sensor location.
Where is the EPC solenoid on the solenoid body?: Per the diagram, the EPC solenoid is at the far end of the solenoid body (right side in the illustration), opposite Shift Solenoid 1.
How can I tell the Converter Clutch Control solenoid from the Coast Clutch solenoid?: In the diagram, the Converter Clutch Control (CCC) solenoid is on the left side of the body below Shift Solenoid 1, while the Coast Clutch Solenoid (CCS) sits on the right side near the EPC solenoid, below Shift Solenoid 2.
