1979 Ford Bronco Brake Light Switch Connector C-802 Wiring Diagram (9A840)

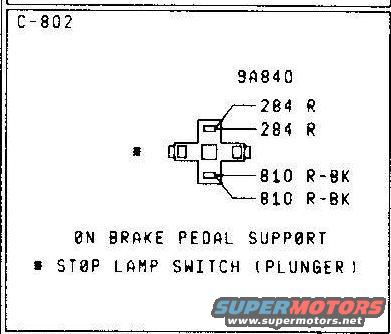

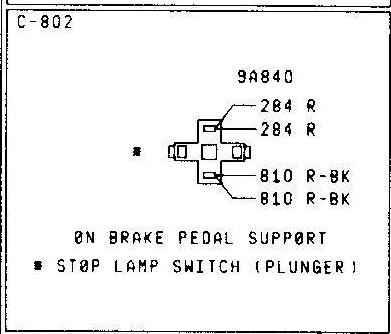

This document is a connector pinout diagram for connector C-802, the stop lamp (brake light) switch connector, from a Ford wiring reference set uploaded for a 1979 Ford Bronco. The diagram shows the connector body for the plunger-type stop lamp switch (component reference 9A840), which is mounted on the brake pedal support. Four terminals are labeled: two circuits marked 284 R (red wires) and two circuits marked 810 R-BK (red with black stripe wires). The callout notes state the connector is located 'ON BRAKE PEDAL SUPPORT' and that the asterisk-marked component is the 'STOP LAMP SWITCH (PLUNGER)'. A reader can learn the connector designation (C-802), the switch's part/base number reference (9A840), the wire circuit numbers and color codes attached to the switch, and the physical mounting location of the switch. The document itself carries no year, make, or model markings; the 1979 Ford Bronco attribution comes from the uploader's gallery context, which also contains related diagrams (fuse panel, headlight switch, turn signal switch, instrument cluster, etc.).
