1979 Ford Bronco Emergency Hazard Flasher Connector C-805 Wiring Diagram

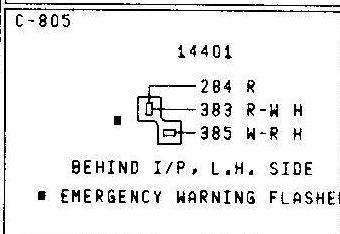

This document is a single connector detail from a Ford wiring diagram set, labeled connector C-805, associated with harness/part group 14401. It depicts the emergency warning (hazard) flasher connector, which is noted as being located behind the instrument panel (I/P) on the left-hand side. Three circuits are identified at this connector: circuit 284 with a Red (R) wire, circuit 383 with a Red-White (R-W) wire (with an 'H' notation), and circuit 385 with a White-Red (W-R) wire (also with an 'H' notation). A small square symbol in the diagram is keyed to the legend 'EMERGENCY WARNING FLASHER,' indicating which component the connector serves. A reader can learn the connector designation, its physical location behind the dash on the driver's side, the circuit numbers, and the wire color codes needed to identify or trace the hazard flasher wiring. The scan is one page of a larger album of wiring diagrams uploaded for a 1979 Ford Bronco, including related pages for the turn signal flasher, turn signal switch, fuse panel, and general wiring color codes.
