1979 Ford Bronco Turn Signal Flasher Connector C-806 Location & Wire Colors

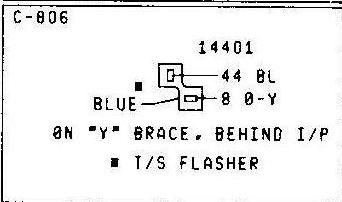

This document is a small connector callout diagram labeled C-806, taken from a Ford wiring reference and uploaded as "Turn Signal Flasher.jpg" for a 1979 Ford Bronco. It shows the turn signal (T/S) flasher connector, identified as part of wiring assembly 14401. The connector body is drawn with two terminals: circuit 44, wire color BL (blue), and circuit 8, wire color O-Y (orange-yellow). The connector itself is labeled BLUE. A location note states the flasher is mounted "ON 'Y' BRACE, BEHIND I/P" (instrument panel). The filled square symbol identifies the component as the T/S FLASHER. From this diagram a reader can learn where the turn signal flasher is physically located in the vehicle, which two circuits/wire colors attach to it (44 blue and 8 orange-yellow), the connector color (blue), and the connector designation (C-806) used elsewhere in the factory wiring documentation. The document contains no year, model, or engine information of its own; it is one page of a larger album of Ford wiring diagram scans covering circuits such as the alternator, headlight switch, instrument cluster, and turn signal switch.
