What gauge steel was the original 1984 Bronco rear bed floor?

The notes state the original rear bed was 20 gauge ribbed steel, to be replaced with thicker stock without ribs.

What are the overall dimensions of the replacement bed panel?

Approximately 49" wide (marked 'Very critical') by 52" tall (marked 'not as critical'), with 0.75" bent flanges on the ends.

What size is the center cutout in the bed panel?

The center rounded-rectangle cutout is 6.5" wide by 4" tall, located 34" up from the bottom edge and 24.5" from the right edge.

How much did the replacement sheet metal cost?

The note shows a 50 x 50 sheet at $65, plus additional charges for cutting, brake (bending), and shipping.

Which dimension is most important when fabricating the panel?

The 49" width is labeled 'Very critical,' while the 52" height is noted as 'not as critical.'

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “Project Alpha Bronco”/ Photo supermotors.net/registry/media/1112935

1984 Ford Bronco Rear Bed Floor Replacement Panel Dimensions - DIY Sketch

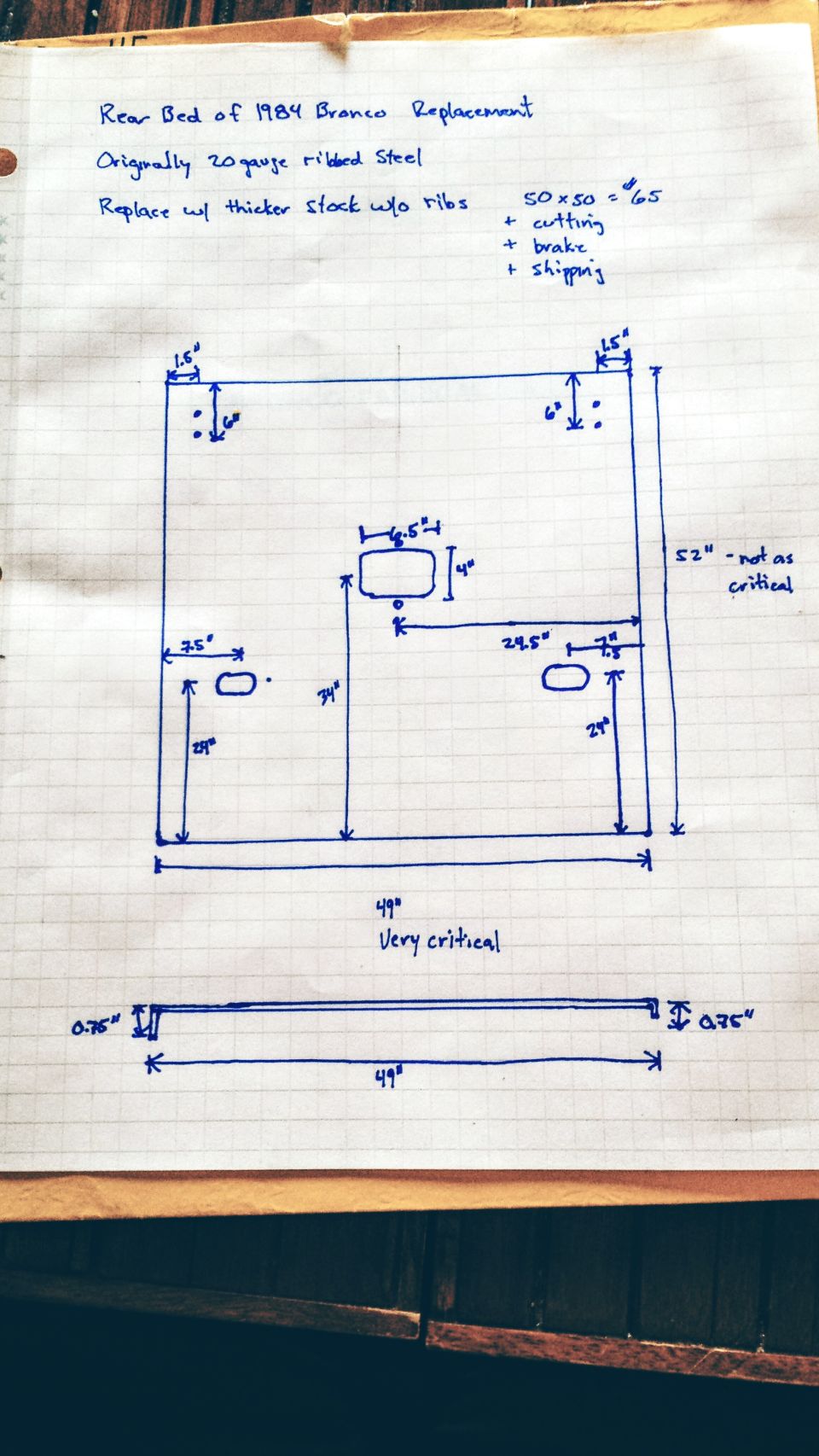

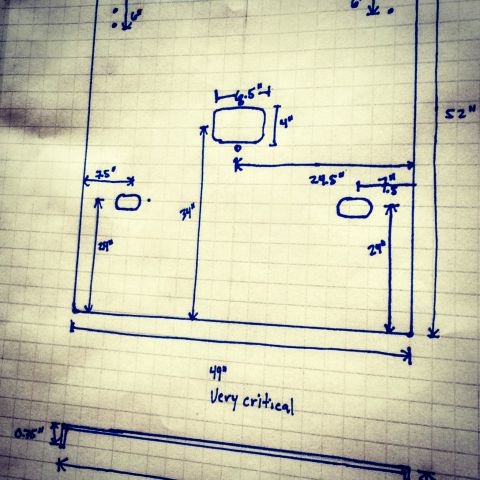

Hand-drawn dimensioned sketch of a 1984 Bronco rear bed replacement panel with measurements

‹ ›

Hand-drawn dimensioned drawing for a 1984 Bronco rear bed replacement panel, noting 20-gauge ribbed steel and critical 49-inch and 52-inch dimensions.

AI caption July 2017 · Photo 410 of 2747

This document is a hand-drawn dimensioned sketch (blueprint) for fabricating a replacement rear bed floor panel for a 1984 Ford Bronco. The notes state the original panel was 20 gauge ribbed steel and that the owner plans to replace it with thicker sheet stock without ribs. A cost note reads "50 x 50 = $65" plus charges for cutting, brake (bending), and shipping. The main drawing shows a roughly rectangular panel measuring 49" wide (labeled "Very critical") by 52" tall (labeled "not as critical"), with 1.5" corner offsets at the top and pairs of holes located 6" down from the top edge on both sides. A central rounded-rectangle cutout measures 6.5" x 4", positioned 34" up from the bottom and 24.5" from the right edge. Two smaller oval cutouts are located 7.5" from the left edge and 29" up on the left side, and about 7" in and 24" up on the right side. A second sketch shows the panel edge profile with 0.75" bent flanges on each end and the 49" overall length. The document gives a fabricator everything needed to cut and brake a replacement bed panel.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What gauge steel was the original 1984 Bronco rear bed floor?: The notes state the original rear bed was 20 gauge ribbed steel, to be replaced with thicker stock without ribs.
What are the overall dimensions of the replacement bed panel?: Approximately 49" wide (marked 'Very critical') by 52" tall (marked 'not as critical'), with 0.75" bent flanges on the ends.
What size is the center cutout in the bed panel?: The center rounded-rectangle cutout is 6.5" wide by 4" tall, located 34" up from the bottom edge and 24.5" from the right edge.
How much did the replacement sheet metal cost?: The note shows a 50 x 50 sheet at $65, plus additional charges for cutting, brake (bending), and shipping.
Which dimension is most important when fabricating the panel?: The 49" width is labeled 'Very critical,' while the 52" height is noted as 'not as critical.'
