What are the overall dimensions of the bedside panel?

The panel is 67 1/2 inches along the top edge, 70 1/4 inches along the bottom edge, and 20 inches tall on the left side.

Where is the speaker opening located on the panel?

The speaker cutout is 9 5/8 inches from the left edge and 5 1/4 inches up from the bottom edge, within an area marked 8 1/4 tall and about 6 1/4 wide.

What size is the pocket opening on the right side of the panel?

The pocket opening is 17 inches wide at the top and 12 inches at the bottom, with side heights of 5 and 10 inches, positioned 5 inches from the top area and 5 inches above the bottom edge, with a 'x 2 1/4' notation on the right.

What are the dimensions of the pocket cover?

The pocket cover measures 18 1/4 inches across the top, 12 3/8 inches across the bottom, 5 1/2 inches tall on the right side, with a 2 3/4-inch angled left edge.

Does the drawing account for the seat belt reel?

Yes, a dashed contour in the center of the panel is labeled 'Seat Belt Reel,' indicating the raised hump the panel must clear.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Tennessee Warden”/ Photo supermotors.net/registry/media/1153252

Ford Bronco Bedside Panel & Pocket Cover Blueprint - Dimensions Template

Hand-drawn dimensioned bedside panel and pocket cover drawing with measurements

‹ ›

Hand-drawn dimensioned fabrication drawing of a bedside panel and pocket cover with inch measurements and cutout locations.

AI caption September 2019 · Photo 164 of 403

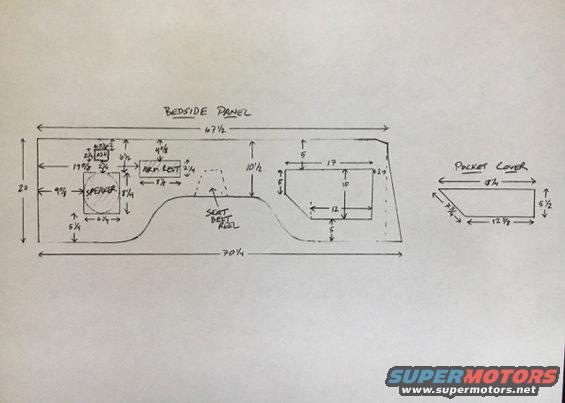

This document is a hand-drawn dimensional blueprint (uploaded to a 1996 Ford Bronco gallery) showing the layout and measurements of a bedside interior panel and its matching pocket cover. The main drawing, labeled 'Bedside Panel,' shows a panel measuring 67 1/2 inches along the top, 70 1/4 inches along the bottom, and 20 inches tall. Marked cutouts include a round speaker opening (positioned 9 5/8 in from the left edge, in an 8 1/4 area, 5 1/4 up from the bottom), an ash tray opening (approx. 2 3/4 x 2 1/8, located 17 5/8 from the left and 6 1/8 down from the top), an arm rest mounting area (8 1/4 wide x 2 1/4, 4 5/8 down from the top), a dashed contour for the seat belt reel hump in the center, and a storage pocket opening on the right (17 wide at top, 12 at bottom, 5 and 10 side heights, with 5-inch spacing to top and bottom edges and a 'x 2 1/4' notation). A second, smaller drawing labeled 'Pocket Cover' shows an angled cover piece measuring 18 1/4 across the top, 12 3/8 across the bottom, 5 1/2 tall, with a 2 3/4 angled edge. This serves as a template for fabricating replacement interior trim panels.
