What does code 543 mean on a 1991-95 Ford Bronco or F-series?

Code 543 indicates the Fuel Pump circuit is open between the battery and the EEC processor, no power with the fuel pump relay ON. Code 542 is the related fault: circuit open from the EEC processor to the pump motor (no ground with FP relay OFF).

What are the transmission shift solenoid codes on these trucks?

Code 621 is Shift Solenoid 1 (SS1) circuit failure, 622 is Shift Solenoid 2 (SS2) circuit failure, 641 is Shift Solenoid 3 (SS3) circuit failure, and 566 is the 3-4 shift solenoid circuit failure on the A4LD.

What do codes 654 and 655 indicate?

Code 654 means the Transmission Range (TR) sensor indicates the vehicle is not in PARK during Self-Test; code 655 means not in NEUTRAL. Either can be operator error, a failed MLPS, or shift linkage out of adjustment.

What wire colors are shown at the EEC-IV diagnostic connectors?

The diagram shows connector C198 (black) and C199 (gray) with circuits 915 (PK/LB), 914 (T/O), 658 (PK/LG), 359 (GY/R) linked to 209 (W/P), and 926 (LB/O).

What does code 637 versus 638 mean for transmission fluid temperature?

Code 637 means the TFT sensor circuit is above maximum voltage, indicating -40°F; code 638 means the circuit is below minimum voltage, indicating 290°F. Code 636 means TFT is higher or lower than expected, and 657 indicates over temperature.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1168581

1991-95 Ford Bronco/F-Series EEC-IV 3-Digit DTC Codes 335-998 (Page 2)

1991-95 Bronco/F-series EEC-IV 3-digit diagnostic trouble code list with descriptions

‹ ›

Reference · 1980-1986 BroncoAll 40 service procedures

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Ford Bronco Sliding Caliper Pin Installation Diagram - Brake Grease & Pin Tabs

Ford Door Lock Cylinder Replacement - Clip Removal & Standard DL140T Swap

1991-95 Ford Bronco/F-Series EEC-IV 3-Digit DTC Codes 335-998 (Page 2)

1991-95 Ford Bronco/F-Series EEC-IV 3-Digit DTC Code List & Definitions

Ford Camber/Caster Adjuster Cam Rotation Offset Chart - Alignment Bushing Table

Brake line flaring tool on tubing with chamfer, bubble flare, double flare and single flare steps

Paper drilling template taped to a body panel with 1/4" hole marks and access hole outline over a seat belt an

2000-2006 Suburban / Yukon XL 3rd Row Bench Seat Bracket Installation Guide

Ford 5.8L 351 / 6.6L 400 V8 Rocker Arm & Valve Spring In-Chassis Service

Ford 351M / 400 V8 Valve Clearance & Hydraulic Tappet Adjustment Procedure

Erson Cams camshaft install sheet with oil, break-in procedure and valve spring pressures

40service procedures1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Exploded parts

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

3-Digit Diagnostic Trouble Codes (DTCs) for '90-95 EEC-IV Trucks (p.2 of 2) SEE THE PREVious PAGE...
IF THE IMAGE IS TOO SMALL, click it.

Part of 1980-1986 Ford Bronco Service Procedures

Owner caption January 2022 · Photo 6022 of 6546

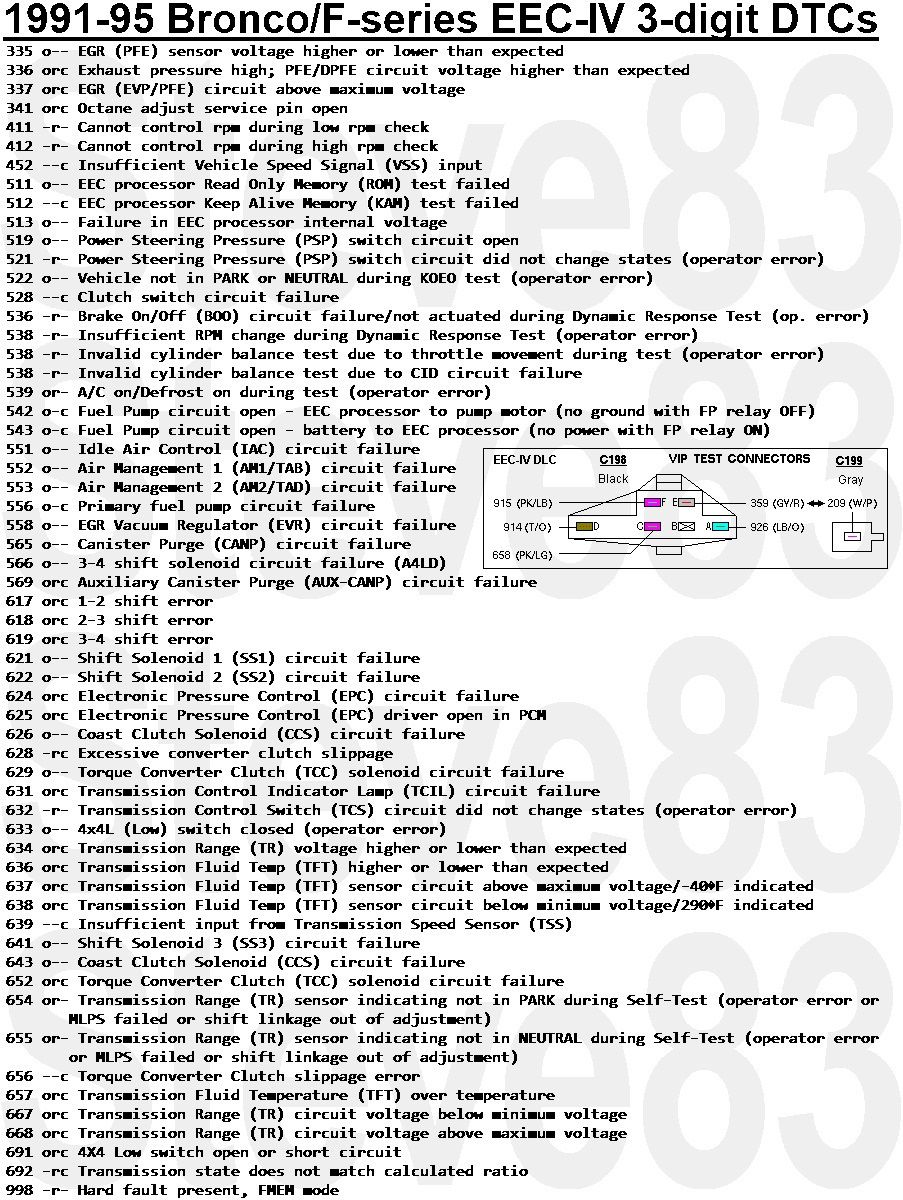

This document is page 2 of a two-page chart listing Ford EEC-IV 3-digit Diagnostic Trouble Codes (DTCs) for 1991-95 Bronco and F-series trucks. It covers codes 335 through 998, with each entry showing the code number, a three-character flag indicating the test mode in which the code appears (o = Key On Engine Off, r = Key On Engine Running, c = Continuous Memory), and a description of the fault. Codes cover EGR/PFE sensor faults, EEC processor memory failures (ROM/KAM), power steering pressure switch, clutch and brake switch circuits, fuel pump circuits, idle air control, air management, canister purge, and an extensive set of E4OD/A4LD transmission codes including shift solenoids (SS1-SS3), Electronic Pressure Control (EPC), Torque Converter Clutch (TCC), Transmission Range (TR) sensor, Transmission Fluid Temperature (TFT), and 4x4 Low switch faults. Several codes are noted as operator errors during self-test (e.g., 521, 522, 536, 632, 654, 655). An inset diagram shows the EEC-IV Data Link Connector (DLC) and VIP test connectors C198 (black) and C199 (gray), with circuit numbers and wire colors: 915 (PK/LB), 914 (T/O), 658 (PK/LG), 359 (GY/R), 209 (W/P), and 926 (LB/O). Useful for interpreting self-test codes retrieved during KOEO/KOER diagnostics.
