Mechanical Oil Pressure Gauge Installation Instructions & Tubing Diagram

Mechanical oil pressure gauge installation steps with figure
Mechanical oil pressure gauge installation steps with figureOriginal file
Mechanical oil pressure gauge installation steps with figure

Reference · 1980-1986 BroncoAll 40 service procedures

Aftermarket Gauge Light Bulb Installation & Wiring Instructions Mechanical Water Temperature Gauge Installation Instructions - Capillary Tube Mechanical Oil Pressure Gauge Installation Instructions & Tubing Diagram Voltmeter installation instructions with wiring steps and gauge connection diagram Gauge installation instructions, step 1 Preparation for Installation with notes and warning 1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms Ford Bronco Sliding Caliper Pin Installation Diagram - Brake Grease & Pin Tabs Ford Door Lock Cylinder Replacement - Clip Removal & Standard DL140T Swap 1991-95 Ford Bronco/F-Series EEC-IV 3-Digit DTC Codes 335-998 (Page 2) 1991-95 Ford Bronco/F-Series EEC-IV 3-Digit DTC Code List & Definitions Ford Camber/Caster Adjuster Cam Rotation Offset Chart - Alignment Bushing Table 2000-2006 Suburban / Yukon XL 3rd Row Bench Seat Bracket Installation Guide 40service procedures1980-1986 Ford Bronco More reference 1996 Ford Bronco & F-Series Trailer Wiring Diagram - 7-Pin Connector PinoutWiring diagram Off Road Enthusiast Cannibal feature opener with white Ford prerunner truck and roof lightsBrochure Ford Bronco Ignition Timing Curve Table - RPM vs Vacuum Advance (12° Base)Spec plate 1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part NumbersExploded parts Smallblock V8 Coolant Flow Diagram - Ford Engine Cooling Path SchematicSchematic 1996 Ford Bronco/F-Series Starting System - Section 03-06 ContentsManual page Trim panel hole layout photos for positions A, B and C with tape measure readings from the body lineBlueprint 1985 Ford Bronco Vacuum Hose Routing Diagram - EGR, TAB/TAD Solenoids, CanisterVacuum routing Bronco drive shaft torque limits table and special tool T74P-4635-CTorque spec '95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tablesFuse chart

Step-by-step instructions and figure for installing a mechanical oil pressure gauge and routing tubing through the firewall.

Part of 1980-1986 Ford Bronco Service Procedures

AI caption · Photo 22 of 593

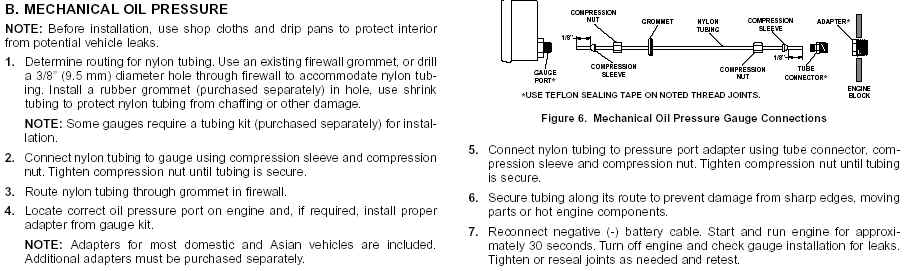

This document is a generic aftermarket gauge installation instruction sheet covering the installation of a mechanical oil pressure gauge. It provides a seven-step procedure: determining a routing path for the nylon tubing through the firewall (using an existing grommet or drilling a 3/8" / 9.5 mm hole with a purchased rubber grommet and shrink tubing for chafe protection), connecting the tubing to the gauge with a compression sleeve and nut, routing tubing through the firewall, locating the engine's oil pressure port and installing an adapter from the gauge kit if needed, connecting tubing to the pressure port adapter with a tube connector and compression fittings, securing the tubing away from sharp edges, moving parts and hot components, and finally reconnecting the negative battery cable, running the engine ~30 seconds, and checking for leaks. Notes advise using shop cloths and drip pans, that some gauges require a separately purchased tubing kit, and that adapters for most domestic and Asian vehicles are included while additional adapters must be purchased separately. Figure 6 illustrates the gauge connections, labeling the compression nuts, compression sleeves, grommet, nylon tubing, tube connector, adapter, gauge port, and engine block, with a note to use Teflon sealing tape on marked 1/8" threaded joints.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What size hole do I need to drill in the firewall for the oil pressure gauge tubing?
If an existing firewall grommet cannot be used, drill a 3/8" (9.5 mm) diameter hole through the firewall, install a rubber grommet (purchased separately), and use shrink tubing to protect the nylon tubing from chafing.
Where should Teflon sealing tape be used when installing a mechanical oil pressure gauge?
Per Figure 6, use Teflon sealing tape on the noted threaded joints: the gauge port, the tube connector, and the adapter at the engine block (the 1/8" threaded joints).
How is the nylon tubing connected to the gauge and the engine?
Connect the tubing to the gauge with a compression sleeve and compression nut, and connect it to the pressure port adapter on the engine using a tube connector, compression sleeve and compression nut, tightening until the tubing is secure.
How do I test the mechanical oil pressure gauge installation for leaks?
Reconnect the negative battery cable, start and run the engine for approximately 30 seconds, then turn off the engine and check the installation for leaks. Tighten or reseal joints as needed and retest.
Are engine port adapters included with the gauge kit?
Adapters for most domestic and Asian vehicles are included; additional adapters must be purchased separately. Some gauges also require a separately purchased tubing kit.
