Bendix Hydro-Boost Actuator Cutaway Diagram - Ford Bronco Brake Booster Parts

Bendix Hydro-Boost actuator cutaway schematic with labeled internal valves and pistons
Bendix Hydro-Boost actuator cutaway schematic with labeled internal valves and pistonsOriginal file
Bendix Hydro-Boost actuator cutaway schematic with labeled internal valves and pistons

Reference · 1987-1991 BroncoAll 111 schematics

MegaSquirt EEC-IV Adaptor Board Schematic - Ford 60-Pin Piggyback Wiring Bendix Hydro-Boost Reserve Operation Diagram - Accumulator Valve Schematic Bendix Hydro-Boost Manual Operation Cutaway Diagram - Ford Bronco Brake Booster Bendix Hydro-Boost Leak Identification Diagram - Seal Leak Locations (Ford) Bendix Hydro-Boost Brake Booster Cutaway Diagram - Generating Pressure Bendix Hydro-Boost Actuator Cutaway Diagram - Ford Bronco Brake Booster Parts Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification Ford Vacuum Check Valve Direction Diagram - Airflow & Black Vacuum Side Ford Thermactor Air Diverter Valve Diagram - Inlet & Outlet Port Identification Ford Idle Air Control (IAC) Valve Diagram - Cutaway Schematic & Airflow Ford Idle Air Bypass (IAB) Solenoid Cutaway Diagram - Plunger, Spring, Airflow 111schematics1987-1991 Ford Bronco More reference MegaSquirt V3.0 Main Board External Wiring Diagram - Pinout, Relays & FusesWiring diagram Dyno2000 Simulation: 4.17 Stroke 10.79:1 Engine Power, Torque & BMEP TableSpec plate Ford F-Super Duty Chassis Cab Hydro-Boost Diagram - Hose Routing & Torque SpecsExploded parts B.C. Broncos Christmas parts ad for early Broncos with 351 to 302 manifold adapter and tierod over bushingsBrochure Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page Tubing Adapter Blueprint 2.00" OD x 1.375" ID x 3" - 1.125"-12 TPI RH ThreadBlueprint '89 Ford vehicle emission control information label with EEC IV/EFI timing steps and vacuum hose routingVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

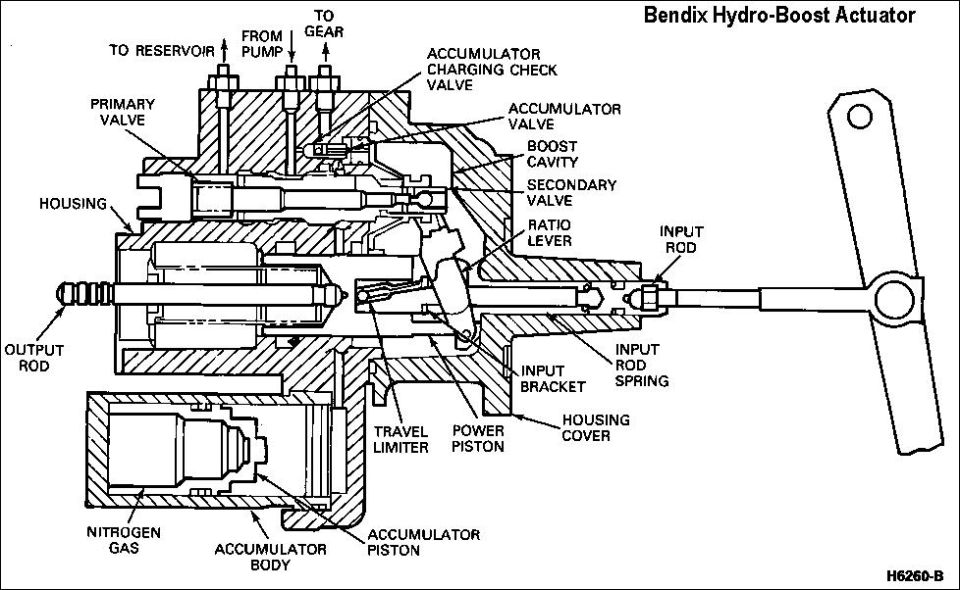

Cutaway schematic of a Bendix Hydro-Boost actuator labeling the primary/secondary valves, accumulator, power piston, and input/output rods.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 388 of 1815

This document is a labeled cutaway schematic of the Bendix Hydro-Boost actuator, a hydraulically-powered brake booster. The cross-sectional diagram identifies all major internal and external components of the unit. Three hydraulic ports are labeled at the top of the housing: TO RESERVOIR, FROM PUMP, and TO GEAR, showing how the unit connects into the power steering hydraulic circuit. Internal components identified include the primary valve, secondary valve, accumulator charging check valve, accumulator valve, boost cavity, ratio lever, power piston, and travel limiter. The pedal-side interface is shown with the input rod, input rod spring, input bracket, and housing cover, while the output rod (which pushes the master cylinder) exits the opposite end of the housing. Below the main body, the accumulator assembly is detailed, showing the accumulator body, accumulator piston, and the nitrogen gas charge that provides reserve braking power. The figure carries the reference number H6260-B. A reader can learn the internal layout, component names, and hydraulic port arrangement of a Bendix Hydro-Boost unit, which is useful for understanding how the booster operates, diagnosing problems, or identifying parts during rebuild or replacement. The document itself states no vehicle year, make, or model applicability.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the three hydraulic ports on a Bendix Hydro-Boost actuator?
The diagram labels three ports on top of the unit: TO RESERVOIR, FROM PUMP, and TO GEAR, connecting the booster into the power steering hydraulic circuit.
What is inside the Hydro-Boost accumulator?
The diagram shows the accumulator consists of an accumulator body, an accumulator piston, and a nitrogen gas charge, along with an accumulator valve and accumulator charging check valve in the main housing.
What valves are inside the Hydro-Boost unit?
The schematic labels a primary valve, a secondary valve, an accumulator valve, and an accumulator charging check valve.
How does the brake pedal connect to the Hydro-Boost?
The input rod (with input rod spring and input bracket) enters through the housing cover, acts through the ratio lever on the power piston, and force is delivered by the output rod at the opposite end of the housing.
What limits travel in the Hydro-Boost power piston?
A component labeled TRAVEL LIMITER is shown adjacent to the power piston inside the housing.
