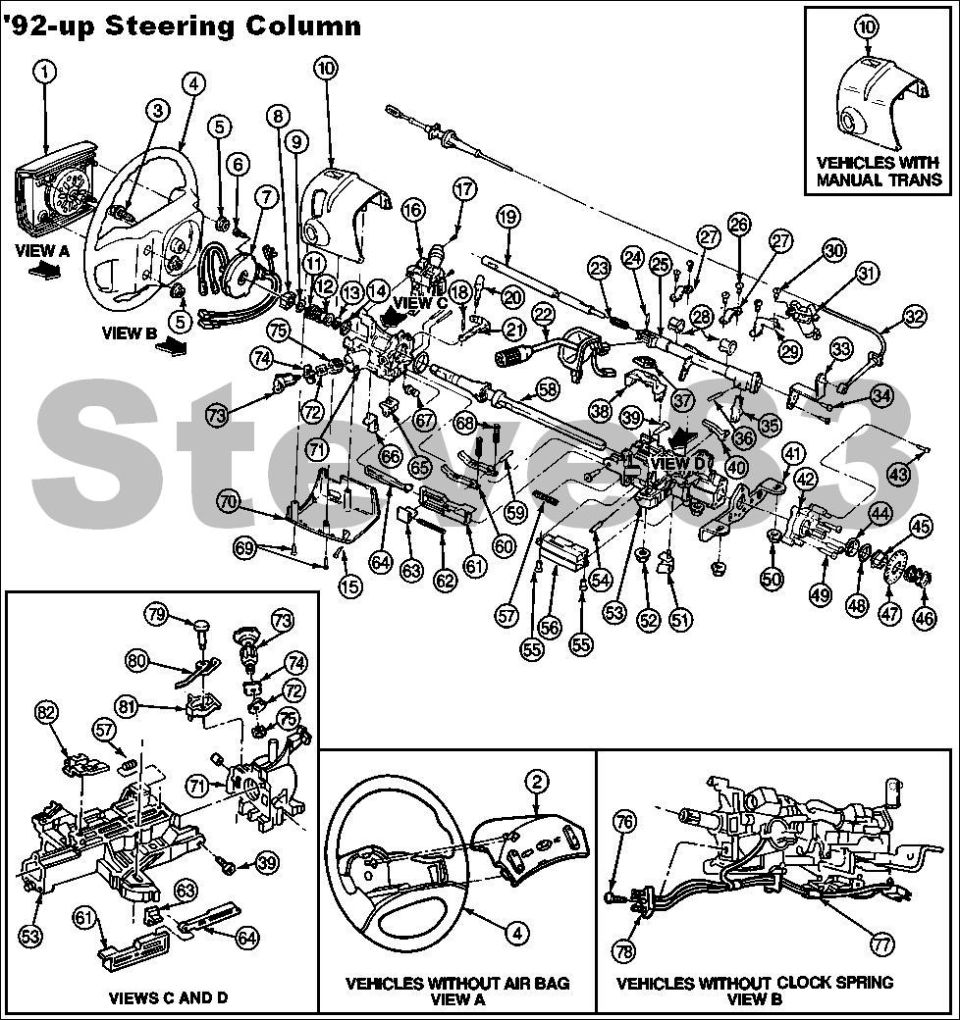

'92-up Steering Column

For more info, see this album:
http://www.supermotors.net/vehicles/registry/6098/31472-4



1 Driver Side Air Bag Module 043B13 ('94-96 trucks under 8500GVWR)
2 Steering Wheel Pad Horn Switch 13A80 ('92-93 & '94-97 over 8500GVWR)
- Steering Wheel Switch F4TZ9C888BA, SW5890 ('92-96 & '97 >8500GVWR w/cruise)
- Steering Wheel Horn Switch F0DZ13A805AK & -BK ('92-96 & '97 >8500GVWR w/o cruise)
3 Steering Wheel Bolt N804385-S100
4 Steering Wheel 3600
5 Air Bag Module Retaining Nuts 621903
6 Screw 390345-S36
7 Air Bag Sliding Contact (Clock Spring) 14A664
8 Turn Indicator Cancel Cam 13318
9 Bearing Retainer 3C610
10 Steering Column Upper Shroud 3530
11 Steering Column Upper Bearing Spring 3520
12 Steering Column Bearing Sleeve 3518
13 Steering Column Bearing Tolerance Ring 3L539
14 Steering Column Bearing 3517
15 Shroud Retaining Screws 55929-S2
16 Multi-Function Switch (MFS) 13K359
17 Screw 390345-S36
18 Steering Column Lock Actuator Lever Pin N805857
19 Column Shift Selector Lever Plunger 7361 (Automatic Only)
20 Tilt Wheel Handle and Shank 3F609
21 Steering Column Release Lever 3D544
22 Gearshift Lever 7210 (Automatic Only)
23 Gearshift Selector Tube Spring 7379 (Automatic Only)
24 Gearshift Lever Pin 7G357 (Automatic Only)
25 Transmission Column Shift Selector Tube 7212 (Automatic Only)
26 Screws N806584 (Automatic Only)
27 Gearshift Tube Bushing Clamp 7E400 (Automatic Only)
28 Gearshift Lever Socket Bushing 7335 (Automatic Only)
29 Transmission Shift Selector Position Insert 7A216 (Automatic Only)
30 Screw N806584 (Automatic Only)
31 Shift Lock Actuator 3Z719 (Automatic Only)
32 Shift Cable and Bracket 7E395 (Automatic Only)
33 Transmission Selector Lever Arm and Support 7302 (Automatic Only)
34 Screws N806584
35 Gearshift Lever Interlock Pawl (Automatic Only)
36 Interlock Pawl Pin 7W441 (Automatic Only)
37 Transmission Control Selector Lever Spring Clip 7C464 (Automatic Only)
38 Wiring Shield 14A099 (Automatic Only)
39 Pivot Bolts N806582
40 Steering Column Lock Pawl 3E691
41 Steering Column Instrument Panel Bracket 3676
42 Steering Column Lower Bearing Retainer 3D681
43 Screws N806583
44 Steering Column Bearing Sleeve 3518
45 Steering Column Bearing Tolerance Ring 3L539
46 Steering Column Upper Bearing Spring 3520
47 Steering Angle Sensor Control Ring 3C131
48 Steering Column Bearing 3517
49 Lower Bearing Housing Retaining Screws N806583-S36
50 Lower Column Mounting Nuts N806423
51 Wiring Harness Retainer 14A163
52 Lower Column Mounting Nuts N806423
53 Steering Actuator Housing 3F723
54 Steering Column Lock Lever Pin 3B663
55 Screw (Torx Head) N806584-S36
56 Ignition Switch 11572
57 Steering Column Position Spring 3D655
58 Steering Shaft Assembly 3524
59 Steering Column Lock N805856
60 Steering Column Lock Left Hand Lever 3D653
61 Steering Column Lock Lever Actuator 3E715
62 Steering Column Lock Spring 3E696
63 Steering Column Lock Pawl 3E691
64 Steering Column Lock Lever Actuator 3E715
65 Steering Column Lock Cam 3E695
66 Wiring Harness Retainer 14A163
67 Steering Column Tilt Flange Bumper 3D656
68 Steering Column Position Lock Spring 3B768
69 Steering Column Shroud Screw 55929-S2
70 Steering Column Lower Shroud 3530
71 Steering Column Lock Cylinder Housing 3511
72 Steering Column Lock Housing Bearing 3E700
73 Ignition Switch Lock Cylinder 11582
74 Bearing Retainer 3C610
75 Steering Column Lock Gear 3E717
76 Screw 390345-S2
77 Wiring Harness Retainer 14A163
78 Speed Control Brush 9C899
79 Steering Column Lock Actuator Lever Pin 3F530
80 Key Release Lever Spring 3F532
81 Steering Column Key Release Lever 3F527
82 Steering Column Lock Actuator Cover 3E745
