Ford Taurus Halfshaft ABS Sensor Ring Press Install Diagram: Tool 206-072

Service illustration pressing ABS sensor ring with press ram and remover/replacer tool
Service illustration pressing ABS sensor ring with press ram and remover/replacer toolOriginal file
Service illustration pressing ABS sensor ring with press ram and remover/replacer tool

Reference · 1996-1999 TaurusAll 18 service procedures

Ford Taurus Halfshaft ABS Sensor Ring Press Diagram: Tool 206-072 Ford Taurus Front ABS Sensor Ring Remover/Replacer 206-072 - Halfshaft Service Ford Taurus Halfshaft ABS Sensor Ring Press Install Diagram: Tool 206-072 Ford Taurus Front ABS Sensor Ring Removal - Halfshaft CV Joint Tool 206-072 Multi-function switch component testing tables with circuit numbers, wire colors and switch positions Ford Pinpoint Test JF7-JF11: Coil Driver (CD) Circuit & Ignition Coil Diagnosis Ford Pinpoint Test JF4-JF6: Ignition Coil & Coil Driver Circuit Misfire Diagnosis Ford Pinpoint Test JF1-JF3: Ignition Coil Not Firing Diagnosis (DTC P0350-P0360) Mercury Sable front air dam installation instructions with 12 steps and car drawings Ford AX4S Transaxle Pressure Test Port Locations Diagram - Line, EPC, Direct Clutch Ford Taurus Front Subframe Plate Nut Removal Diagram - Access Hole & Tab Ford Valve Shim Removal with Compressed Air - Tappet Holder T96P-6500-AH Diagram 18service procedures1996-1999 Ford Taurus More reference Starter Wire Bypass Switch Diagram - 12V Push-Button Starter Circuit (Ford Taurus)Wiring diagram 1998 Ford Taurus Halfshaft CV Joint & Boot Diagram - E6715-F Callout FigureExploded parts 2004 Ford SVT Mustang Cobra Mystichrome Edition display placard listing specs and featuresBrochure Engine coolant/intake air temperature sensor values table of temperature, voltage and resistanceManual page 1999 Ford Taurus SHO window sticker with equipment list, 16 city / 25 highway MPG and $29,550 MSRPSpec plate Ford Taurus SHO 3.4L V8 Serpentine Drive Belt Routing Diagram & Pulley GuideSchematic 1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay ChartFuse chart V8 Prototype Intake Manifold Runner Horns Patent Drawing: Figure 8 Plenum LayoutBlueprint 1997 Ford Taurus EATC Vacuum Schematic - Hose Routing & Part NumbersVacuum routing

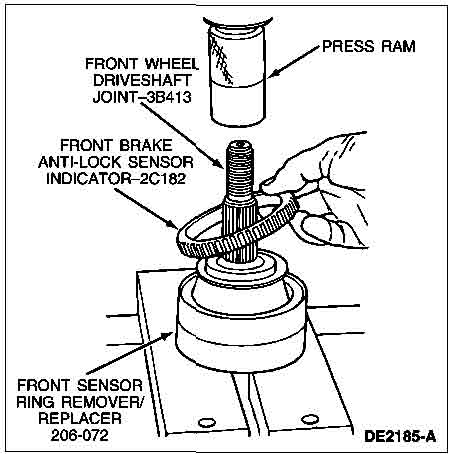

Service-procedure illustration showing a press ram seating the ABS sensor ring onto the driveshaft joint.

Part of 1996-1999 Ford Taurus Service Procedures

AI caption · Photo 206 of 386

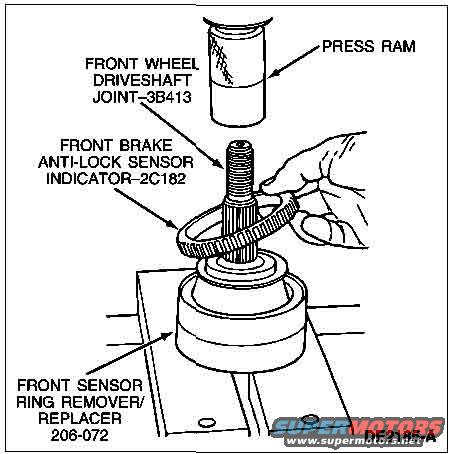

This document is a single illustration from a Ford service procedure showing how to install (press on) the front brake anti-lock sensor indicator ring onto a front wheel driveshaft joint. The line drawing depicts a hydraulic press setup: the front wheel driveshaft joint (part reference 3B413) is positioned vertically in the Front Sensor Ring Remover/Replacer tool (special tool number 206-072), which sits on the press bed. A technician's hands are shown placing the front brake anti-lock sensor indicator (ABS tone/sensor ring, part reference 2C182) over the splined stub shaft of the CV joint. The press ram is shown above, ready to press the ring into position on the joint. The figure reference number DE2185-A appears in the lower right corner. A reader can learn the correct special tool to use (206-072), the orientation of the components during pressing, and the Ford base part numbers for the driveshaft joint and ABS sensor ring. The page contains no torque specifications, year/model applicability, or step-by-step text, it is purely a callout-labeled illustration, likely one page of a multi-page halfshaft service procedure.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What special tool is used to press the ABS sensor ring onto the halfshaft?
The Front Sensor Ring Remover/Replacer, tool number 206-072, is shown supporting the driveshaft joint under the press ram.
What is the part reference for the front brake anti-lock sensor indicator ring?
The front brake anti-lock sensor indicator is labeled with base part number 2C182.
What is the part reference for the front wheel driveshaft joint?
The front wheel driveshaft joint is labeled 3B413.
How is the sensor ring installed according to this diagram?
The driveshaft joint is placed in the front sensor ring remover/replacer 206-072, the sensor indicator ring is set over the shaft, and a press ram presses it into place.
