Ford Taurus Front ABS Sensor Ring Remover/Replacer 206-072 - Halfshaft Service

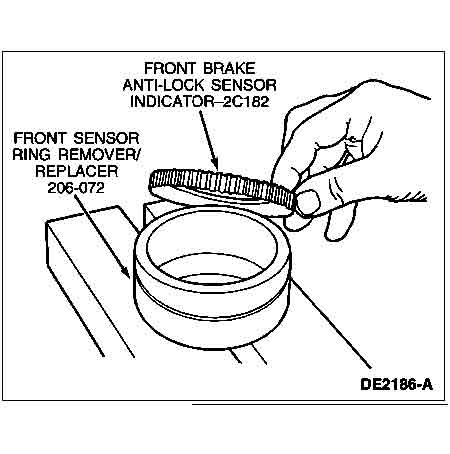

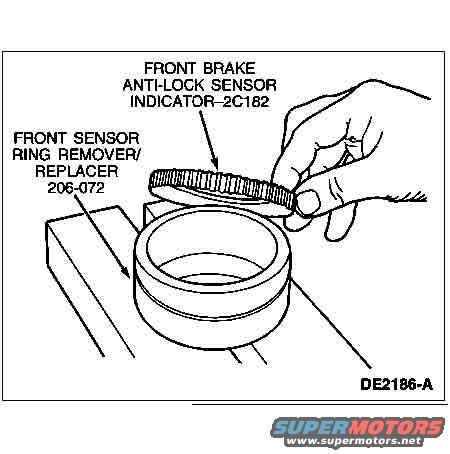

This document is a single service illustration showing the installation (or removal) of a front brake anti-lock sensor indicator ring, part reference 2C182, using a special service tool identified as the Front Sensor Ring Remover/Replacer, tool number 206-072. The line drawing shows a hand positioning the toothed ABS sensor indicator ring (tone ring) over the tool, which is set up on a press or bench fixture. Callout arrows identify the sensor indicator ring and the remover/replacer tool. The figure carries the illustration reference number DE2186-A. The image appears to be one page of a multi-page halfshaft service procedure (other pages in the album cover the halfshaft), indicating this step is part of replacing the ABS tone ring on a front halfshaft or hub during halfshaft service. From this page a reader can learn the correct tool number (206-072) required to remove and install the front anti-lock sensor indicator ring, the Ford base part number nomenclature for the ring (2C182), and the general setup of the ring on the tool prior to pressing.
