Taurus SHO EEC power, fuel pump, cooling fan and A/C WAC relay s…

Taurus SHO EEC power, fuel pump, cooling fan and A/C WAC relay schematic with CCRM connector pinouts
Taurus SHO EEC power, fuel pump, cooling fan and A/C WAC relay schematic with CCRM connector pinoutsOriginal file
Taurus SHO EEC power, fuel pump, cooling fan and A/C WAC relay schematic with CCRM connector pinouts

Reference · 1992-1995 TaurusAll 37 wiring diagrams

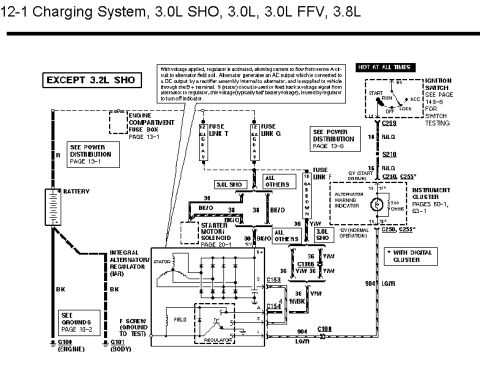

Ford Taurus 3.0L/3.0L SHO/3.8L Charging System Wiring Diagram (Alternator IAR) Ford Taurus SHO 3.2L Charging System Wiring Diagram - Alternator/Regulator Taurus SHO EEC power, fuel pump, cooling fan and A/C WAC relay schematic with CCRM connector pinouts '94 MTX SHO PCM connector C191 pinout chart listing pins 1-60 with circuit numbers and wire colors Ford Taurus SHO 3.0L PCM Connector C191 60-Pin Pinout Diagram - Wire Colors 1993 Ford Taurus Illuminated Entry Module Wiring Diagram - Fuses & Wire Colors Ford Taurus JBL Amplifier Wiring Diagram (No CD) - Radio & Subwoofer Amp 130-8 Ford Taurus SHO JBL CD Player Wiring Diagram 130-10 - Radio High Level Audio Ford Taurus Turn Signal Switch & Flasher Wiring Diagram - Circuits 15A702 Ford Taurus Turn Signal Switch & Flasher Wiring Diagram - Circuit 15A702 Ford Taurus ABS Data Link Connector C170 Pinout - Wire Colors & Circuits Ford Ignition Switch Wiring Diagram - Connector 14401 Pinout, F2TB-14A464-VA 37wiring diagrams1992-1995 Ford Taurus More reference Piston ring, 3.2L piston, oil pump specs and 3.0L SHO drive belt tension tableManual page 1993 Ford Taurus Data Test Connector Pinout - Self Test, Signal Return, Fuel PumpSpec plate 3.0L SHO accessory drive belt routing with generator, A/C compressor and idler pulley calloutsSchematic Ford AX4N/AX4S MLP Sensor (TRS) Test Procedure - C171 Pinout & Resistance ChartService procedure Ford Taurus 3.2L SHO Accessory Drive Belt Routing Diagram & Part NumbersExploded parts Ford Taurus / SHO ABS Module 55-Pin Connector Pinout - Circuits & Wire ColorsFuse chart Ford SHO 3.0L/3.2L V6 Engine Specs - Valve, Camshaft, Rod & Bearing ClearancesTorque spec 2013 Ford Taurus SHO w/Performance Pkg specification table with price, engine and test resultsBrochure Aluminum H-Brace Fabrication Blueprint - 1993 Ford Taurus DIY Brace DrawingBlueprint

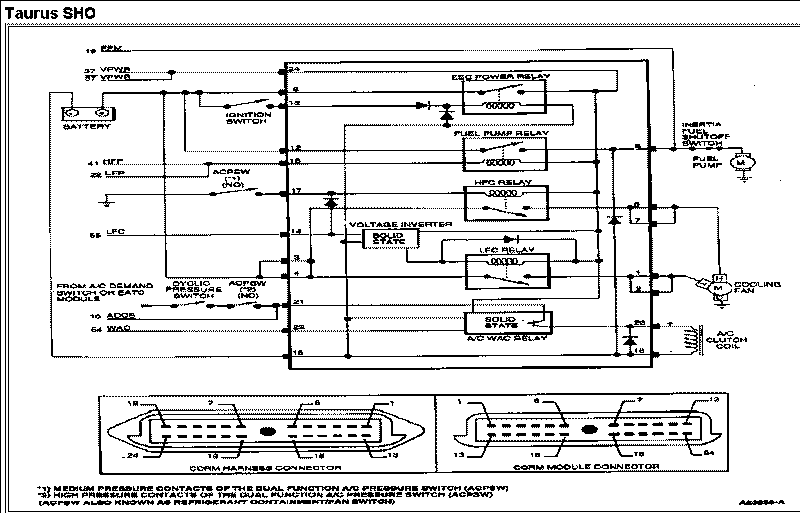

Taurus SHO schematic of EEC power, fuel pump, HFC, LFC and A/C WAC relays, with CCRM harness and CCRM module connector pinout views.

Part of 1992-1995 Ford Taurus Wiring Diagrams
